USB 3.0, 100 m, CAT6a/7, 5 Gbps, 4 x RJ-45, 4 x USB 3.0 Type A, 1 x USB 3.0 Type B, 100-240V, 990 g, NA
Description

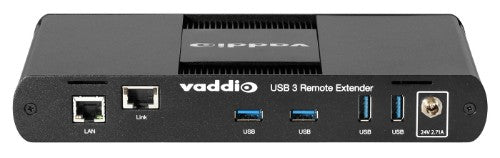

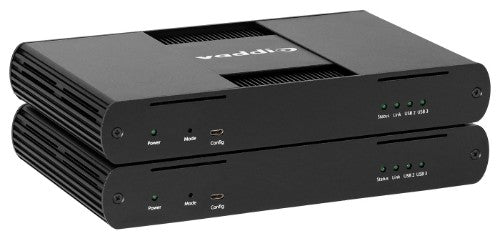

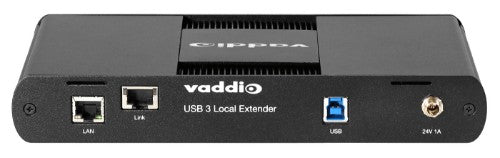

USB 3 Extenders enable you to extend USB 3.1 beyond the standard 3m cable limit for USB 3.1 peripheral devices (like a camera or other AV source). This extender system is composed of two individual units, the Local Extender and the Remote Extender, and has the following key features:
- Up to 328 ft (100 m) of extension when directly connected over CAT 6a/7 cable
- USB 3.1 Gen 1 data rate up to 5Gbps
- Supports up to four remote USB devices simultaneously at full bandwidth (5Gbps)
- True plug and play; no software drivers required
- Works with all major operating systems: Windows®, macOS™, Linux® and Chrome OS™
- 100/1000 Ethernet channel; LAN pass-through
Specifications
| Technical details |
|---|
| Type |
Console transmitter & receiver |
| Housing material |
Aluminum |
| Data transfer rate |
5000 Mbit/s |
| Cable types supported |
Cat6a, Cat7 |
| Maximum transfer distance |
3937" (100 m) |
| Product colour |
Black |
| Compliance certificates |
RoHS |
| Ports & interfaces |
|---|
| RJ-45 ports quantity |
4 |
| DC-in jack |
Yes |
| Weight & dimensions |
|---|
| Width |
9.14" (232.1 mm) |
| Height |
1.3" (33 mm) |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage relative humidity (H-H) |
10 - 90% |
| Colour |
|---|
| Product colour |
Black |
| Packaging content |
|---|
| AC adapter included |
Yes |
| Quick start guide |
Yes |
| Cables included |
AC, USB |
| Power |
|---|
| Input voltage |
100 - 240 V |
| Output voltage |
24 V |
