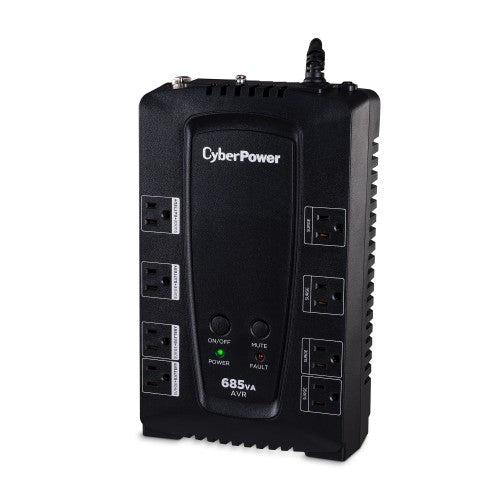

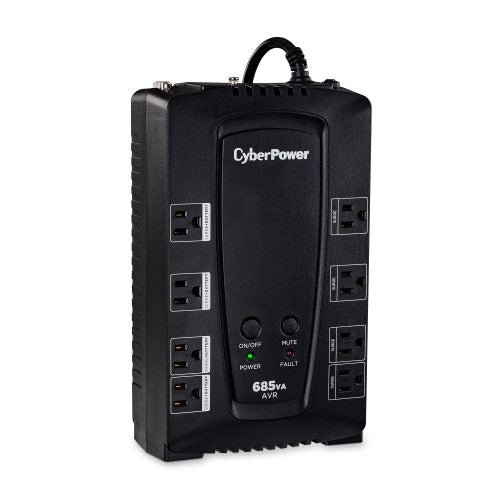

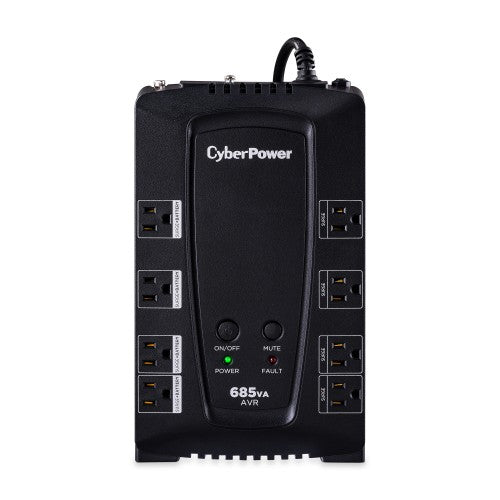

CyberPower CP685AVRG uninterruptible power supply (UPS) Line-Interactive 0.685 kVA 390 W 8 AC outlet(s)

685 VA / 390 W, Line Interactive, Simulated Sine Wave, 120 VAC ± 5%, NEMA 5-15P, 6 ft. cord, 8 (4 surge, 4 surge + battery backup),

Key Features

• Capacity: 685 VA / 390 W
• Topology: Line Interactive
• Waveform: Simulated Sine Wave
• Output: 120 VAC ± 5%
• Plug type & cord: NEMA 5-15P, 6 ft. cord
• Total outlets: 8 (4 surge, 4 surge + battery backup)
• Transformer outlets: 4
• Management software: PowerPanel® Personal
• ENERGY STAR® qualified: Yes

Description

The CyberPower CP685AVRG uninterruptible power supply (UPS) system provides battery backup and surge protection for lightning-induced surges and other power events that can damage electronic equipment. This UPS, with line-interactive topology, uses simulated sine wave output to deliver enough battery backup to power connected electronics through a utility power failure. The unit has enough runtime to perform a graceful shutdown to protect against the loss of data and damage to valuable desktop computers, workstations, networking devices, and home entertainment systems.

The CP685AVRG uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power. AVR is essential in areas where power fluctuations occur frequently, and it helps to extend the unit’s battery life. CyberPower designed the CP685AVRG to minimize noise for a quieter work environment and run efficiently to reduce power consumption.

With a $125,000 lifetime connected equipment guarantee and a three-year warranty, you can trust CyberPower’s commitment to the quality of this battery backup with surge protection.

Battery Backup
Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.

Surge Protection
Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.

Line Interactive Topology
Exists when a line interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.

Automatic Voltage Regulation (AVR)
Provides clean, consistent AC power by automatically increasing (boosting) low voltage without using battery power when incoming utility power experiences minor fluctuations.

Simulated Sine Wave Output
Uses pulse wave modulation to generate a stepped, approximated sine wave to supply cost-effective battery backup power for equipment that does not require sine wave output.

GreenPower UPS Bypass
Is a patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup.
Minimizes noise during operation for a quieter work environment.

Transformer-Spaced Outlets
Widely spaced outlets accommodate transformer-based plugs without compromising the access of other outlets.

PowerPanel® Personal Software
Provides a user-friendly dashboard interface for controlling and monitoring the UPS. Free software download available here.

ENERGY STAR
This model is an ENERGY STAR® certified Uninterruptible Power Supply (UPS) system. ENERGY STAR is the trusted, government-backed symbol for energy-efficient products and practices that help save money and protect the environment.

Specifications

Power
Output frequency	50/60 Hz
Output voltage regulation	5%
Output power	390 W
Input operation voltage (min)	90 V
Input operation voltage (max)	140 V
Output operation voltage (min)	120 V
Output operation voltage (max)	120 V
Surge energy rating	1030 J
Output power capacity	0.685 kVA
Input frequency	57/63 Hz
Performance
Audible alarm modes	Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Waveform	Sine
Automatic Voltage Regulation (AVR)	Yes
Response time	4 ms
LED indicators	Yes
Surge protection	Yes
Audible alarm(s)	Yes
Features
Output frequency	50/60 Hz
Audible alarm modes	Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Waveform	Sine
Output voltage regulation	5%
Automatic Voltage Regulation (AVR)	Yes
Response time	4 ms
Output power	390 W
Input operation voltage (min)	90 V
Input operation voltage (max)	140 V
Output operation voltage (min)	120 V
Output operation voltage (max)	120 V
Surge energy rating	1030 J
Surge protection	Yes
Audible alarm(s)	Yes
Output power capacity	0.685 kVA
Input frequency	57/63 Hz

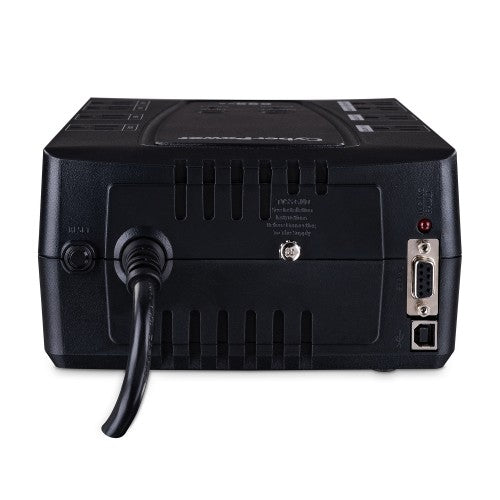

Ports & interfaces
USB port	Yes
Serial interface	Yes
AC outlets quantity	8 AC outlet(s)
Power plug	NEMA 5-15P
Serial ports quantity	1
Battery
Battery voltage	12 V
Battery capacity	7 Ah
Battery technology	Sealed Lead Acid (VRLA)
Number of battery cells	1
Battery recharge time	8 h
Typical backup time at half load	11 min
Typical backup time at full load	2 min
Replacement battery cartridge	RB1270B
Design
Form factor	Compact
LED indicators	Yes
Product colour	Black
Safety	UL1778, cUL 107.3, FCC DOC Class B
Operational conditions
Operating temperature (T-T)	0 - 35 °C
Operating relative humidity (H-H)	0 - 90%
Technical details
Output frequency	50/60 Hz
Compliance certificates	RoHS
Weight & dimensions
Weight	11.7 lbs (5.3 kg)
Width	0.433" (11 mm)
Height	0.268" (6.8 mm)
Depth	0.138" (3.5 mm)
Packaging data
Cables included	Input power cable
Certificates
Safety	UL1778, cUL 107.3, FCC DOC Class B
Packaging content
Cables included	Input power cable
