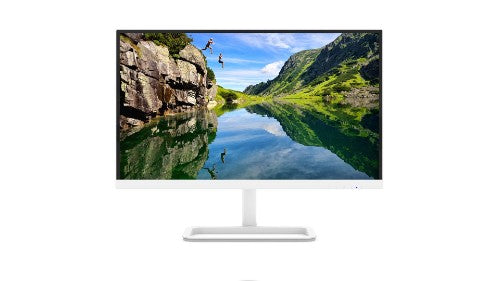

PXN2480MW-WH, 23.8", 1920x1080, 16:9, 7 ms, IPS LCD, HDMI, DP, VGA, HDCP, RMS 2x 1W, 541x424.8x119.1 mm, white
Key Features
- 24” LCD monitor with 1920 x 1080 resolution
- IPS edge-lit LED LCD
- Borderless design, slim depth
- DisplayPort, HDMI, VGA inputs
- External power supply
- Integrated TrueMedia speakers
- Compatible with mounting options that use 100mm VESA mount
- Available in black or white
Description
The Planar® PXN2480MW is a 24" widescreen IPS LED backlit LCD desktop monitor that features a nearly borderless design, wide viewing angle, DisplayPort and HDMI inputs, external power supply and is available in black or white. The Planar PXN2480MW fits seamlessly into home, office, healthcare and digital signage environments.
The 24” Planar PXN2480MW is a modern and stylish Full HD widescreen monitor. This slim, space-saving monitor features a nearly borderless bezel design and utilizes IPS technology to deliver 178°/178° viewing with no color shift. It is flicker free and incorporates blue light reduction presets to help lower eye fatigue and maintain visual comfort. Two digital inputs, DisplayPort and HDMI, provide better compatibility. LED backlight technology reduces energy consumption and total-cost-of-ownership while providing superb image quality.
With IPS technology, integrated TrueMedia™ speakers, an external power supply and 100mm VESA compatibility for easy wall or arm mounting, the Planar PXN2480MW pairs well with Planar's accessories, including the Universal Height Adjust Stand, the Dual Arm Desk stand, and the Planar Dual Monitor Stand.
Specifications
| Display |
|---|
| HDCP |
Yes |
| Display brightness (typical) |
250 cd/m² |
| Screen shape |
Flat |
| Display number of colours |
16.78 million colors |
| Native aspect ratio |
16:9 |
| Maximum refresh rate |
76 Hz |
| HD type |
Full HD |
| Display technology |
LCD |
| Contrast ratio (typical) |
1000:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Pixel pitch |
0.0108 x 0.0108" (0.275 x 0.275 mm) |
| 3D |
No |
| Supported graphics resolutions |
1920 x 1080 (HD 1080) |
| Backlight type |
LED |
| Display resolution |
1920 x 1080 pixels |
| Response time |
7 ms |
| Display diagonal |
23.8" |
| Touchscreen |
No |
| Panel type |
IPS |
| Audio |
|---|
| Built-in speaker(s) |
Yes |
| RMS rated power |
2 W |
| Performance |
|---|
| Built-in speaker(s) |
Yes |
| RMS rated power |
2 W |
| Built-in camera |
No |
| AMD FreeSync |
No |
| NVIDIA G-SYNC |
No |
| Flicker-free technology |
Yes |
| Multimedia |
|---|
| Number of speakers |
2 |
| Built-in speaker(s) |
Yes |
| RMS rated power |
2 W |
| Built-in camera |
No |
| Design |
|---|
| Feet colour |
White |
| Certification |
FCC-B, CE, UL/cUL |
| Product colour |
White |
| Camera |
|---|
| Built-in camera |
No |
| Ports & interfaces |
|---|
| Built-in USB hub |
No |
| Headphone out |
Yes |
| DVI port |
No |
| DC-in jack |
Yes |
| VGA (D-Sub) ports quantity |
1 |
| HDMI ports quantity |
1 |
| DisplayPorts quantity |
1 |
| HDCP |
Yes |
| Headphone outputs |
1 |
| PC Audio in |
Yes |
| Technical details |
|---|
| Height (without stand) |
12.7" (323.8 mm) |
| Depth (without stand) |
1.2" (30.5 mm) |
| Width (without stand) |
21.3" (540.4 mm) |
| Feet colour |
White |
| Cable lock slot |
Yes |
| On/off switch |
Yes |
| Product colour |
White |
| Compliance certificates |
RoHS |
| Weight (with stand) |
7.72 lbs (3.5 kg) |
| Touchscreen |
No |
| Ergonomics |
|---|
| VESA mounting |
Yes |
| Cable lock slot |
Yes |
| Panel mounting interface |
100 x 100 mm |
| Tilt angle range |
-5 - 20° |
| Height adjustment |
No |
| Cable lock slot type |
Kensington |
| Tilt adjustment |
Yes |
| On/off switch |
Yes |
| Power |
|---|
| AC input voltage |
100 - 240 V |
| Power consumption (standby) |
0.5 W |
| Power consumption (typical) |
18.5 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
5 - 40 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Packaging content |
|---|
| Manual |
Yes |
| Cables included |
AC, Audio (3.5mm), DisplayPort, VGA |
| AC adapter included |
Yes |
| Weight & dimensions |
|---|
| Height (without stand) |
12.7" (323.8 mm) |
| Depth (without stand) |
1.2" (30.5 mm) |
| Width (without stand) |
21.3" (540.4 mm) |
| Width (with stand) |
21.3" (541 mm) |
| Depth (with stand) |
4.69" (119.1 mm) |
| Height (with stand) |
16.7" (424.8 mm) |
| Weight (with stand) |
7.72 lbs (3.5 kg) |
| Weight (without stand) |
6.39 lbs (2.9 kg) |
| Package weight |
11 lbs (5 kg) |
| Packaging data |
|---|
| Package weight |
11 lbs (5 kg) |
| AC adapter included |
Yes |
| Manual |
Yes |
| Cables included |
AC, Audio (3.5mm), DisplayPort, VGA |
| Other features |
|---|
| Height (without stand) |
12.7" (323.8 mm) |
| Depth (without stand) |
1.2" (30.5 mm) |
| Width (without stand) |
21.3" (540.4 mm) |
| AC adapter included |
Yes |
| On/off switch |
Yes |
| Manual |
Yes |
| Touchscreen |
No |
| Certificates |
|---|
| Certification |
FCC-B, CE, UL/cUL |
