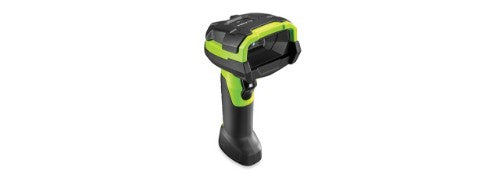

Zebra DS3608-SR Handheld bar code reader 1D/2D LED Black, Green

DS3608-SR, 1D/2D Imager, 610nm Led, 1280 x 800, One 660nm LED, Rugged, Area Imager, Standard Range, Corded, Industrial Green, Vibration Motor

Description

UNSTOPPABLE PERFORMANCE FOR STANDARD RANGE 1D/2D BARCODE CAPTURE
As a member of the Zebra 3600 Ultra-Rugged Series of scanners, the practically indestructible 1D/2D DS3608-SR corded and DS3678-SR cordless scanners are ready for the world’s toughest environments — the warehouse and manufacturing floor. Designed to capture virtually any barcode from near contact to as far as 5 ft./1.5 m away, these scanners are loaded with features that deliver truly unstoppable performance, redefining reliability and management simplicity. The result? The dependable, fast and accurate scanning you need to take the quality of your products and your customer service to the next level.

SUPERIOR PERFORMANCE
You get the ultimate in scanning performance — period. Your workers can scan virtually any 1D or 2D electronic or printed barcode in any condition, as fast as they can pull the trigger. With 30 percent more working range, it’s easy to capture barcodes that are farther away. Even if barcodes are under shrinkwrap or damaged, dirty or poorly printed, no problem — this intelligent scanner can handle it all.

ULTRA-RUGGED DESIGN
The manufacturing plant floor is as tough as its gets — and the cost of unplanned downtime on the production line is astronomical. That’s why we created a new product category — the ultra-rugged scanner. The corded and cordless models are the only scanners in this class that are dust-tight, sprayproof and waterproofed to IP67, with an IP65-sealed cradle for a complete rugged cordless solution.

UNRIVALED MANAGEABILITY
With our complimentary industry-best tools, managing these scanners couldn’t be easier. You can remotely configure and upgrade your scanners, format data properly for instant transmission into your business applications, monitor battery statistics for your cordless models and more.

Specifications

Scanning
Type	Handheld bar code reader
2D (matrix & stacked) barcodes supported	Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Linear (1D) barcodes supported	Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Plessey, U.P.C.
Wavelength	610 nm
Sensor type	LED
Scanner type	1D/2D
Ports & interfaces
Connectivity technology	Wired
Ethernet LAN	Yes
Standard interfaces	RS-232, USB, Keyboard wedge
Performance
Programming function	Yes
Protection features	Dust resistant, Shock resistant, Water resistant
LED indicators	Yes
International Protection (IP) code	IP67
Product colour	Black, Green
Design
Type	Handheld bar code reader
Protection features	Dust resistant, Shock resistant, Water resistant
LED indicators	Yes
International Protection (IP) code	IP67
Product colour	Black, Green
Power
Power source type	Battery
Number of reads per charge	100000
Battery technology	Lithium-Ion (Li-Ion)
Battery capacity	3100 mAh
Weight & dimensions
Width	5.2" (132 mm)
Depth	2.99" (76 mm)
Height	7.28" (185 mm)
Weight	10.8 oz (305 g)
Technical details
Type	Handheld bar code reader
Protection features	Dust resistant, Shock resistant, Water resistant
LED indicators	Yes
International Protection (IP) code	IP67
Product colour	Black, Green
Programming function	Yes
Compliance certificates	RoHS
Network
Ethernet LAN	Yes
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	5 - 95%
