USB-C, DisplayPort, VGA, USB 3.0, 120W
Description

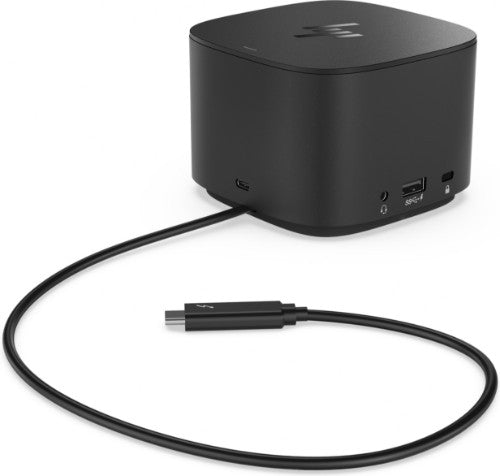

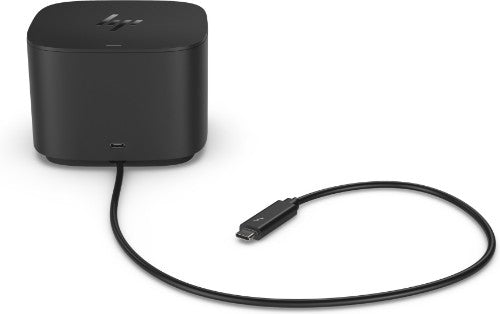

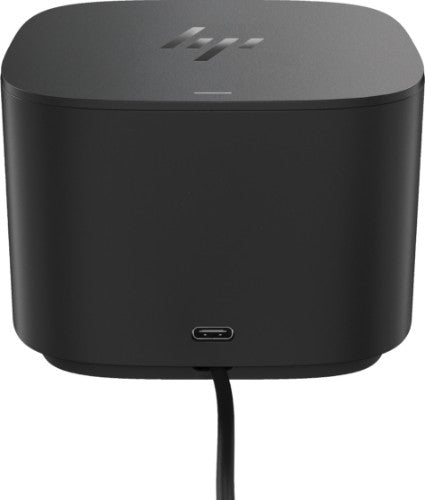

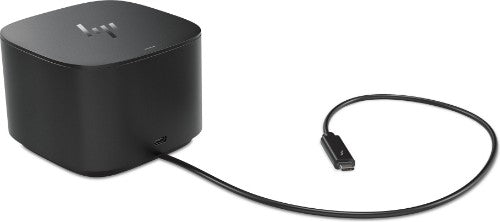

OverviewReinvent docking and boost productivity with our most versatile Thunderbolt™ dock, the small, sophisticated HP Thunderbolt Dock G2. Designed for workspace flexibility and network manageability1, it delivers USB-C™2 device connectivity and optional integrated audio.3
Reinvent docking and boost productivity with our most versatile Thunderbolt™ dock, the small, sophisticated HP Thunderbolt Dock G2 with network manageability1, USB-C™2 device connectivity, and optional integrated audio.3
Specifications

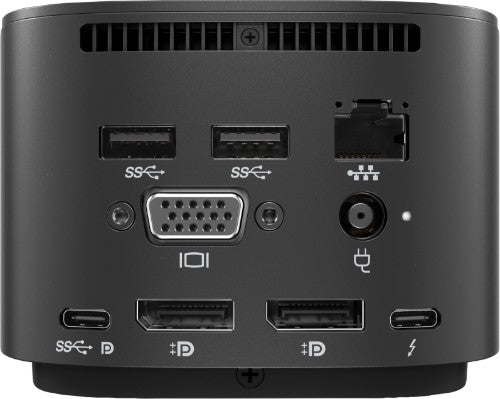

| Ports & interfaces |
|---|
| Combo headphone/mic port |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
2 |
| Thunderbolt ports quantity |
1 |
| Host interface |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity |
0 |
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI ports quantity |
0 |
| VGA (D-Sub) ports quantity |
1 |
| DisplayPorts quantity |
2 |
| Microphone in |
Yes |
| Headphone outputs |
0 |
| Connectivity technology |
Wired |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Performance |
|---|
| Product colour |
Black |
| Card reader integrated |
No |
| Compatibility |
HP Elite x2 1012 G1; HP Elite x2 1012 G2; HP Pro x2 612 G2; HP EliteBook Folio G1; HP EliteBook x360 1030 G2; HP EliteBook x360 1020 G2; HP EliteBook 1040 G4; HP EliteBook 800 G5; HP EliteBook 700 G5; HP ProBook 600 G4; HP ProBook 400 G5; ZBook 14u G5; ZBook 15u G5 |
| Cable lock slot |
Yes |
| Cable lock slot type |
Kensington |
| Technical details |
|---|
| Product colour |
Black |
| Compatibility |
HP Elite x2 1012 G1; HP Elite x2 1012 G2; HP Pro x2 612 G2; HP EliteBook Folio G1; HP EliteBook x360 1030 G2; HP EliteBook x360 1020 G2; HP EliteBook 1040 G4; HP EliteBook 800 G5; HP EliteBook 700 G5; HP ProBook 600 G4; HP ProBook 400 G5; ZBook 14u G5; ZBook 15u G5 |
| Cable lock slot |
Yes |
| Storage |
|---|
| Card reader integrated |
No |
| Power |
|---|
| Power consumption (typical) |
120 W |
| Software |
|---|
| Windows operating systems supported |
Windows 10, Windows 7 |
| Other operating systems supported |
iOS |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 35 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
|---|
| Weight |
28.2 oz (800 g) |
| Width |
3.86" (98 mm) |
| Depth |
3.86" (98 mm) |
| Height |
2.72" (69 mm) |
| Design |
|---|
| Windows operating systems supported |
Windows 10, Windows 7 |
| Product colour |
Black |
| Cable lock slot |
Yes |
| Cable lock slot type |
Kensington |
| Packaging content |
|---|
| Manual |
Yes |
| AC adapter included |
Yes |
