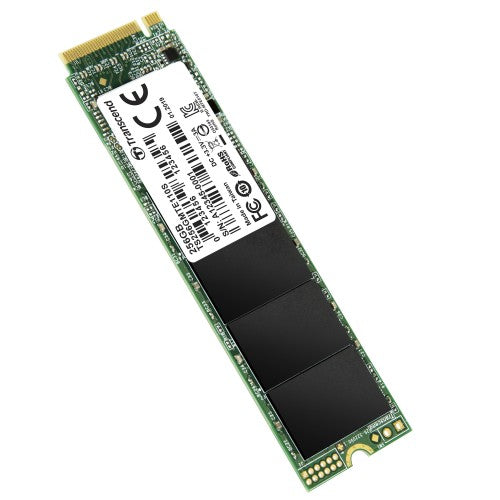

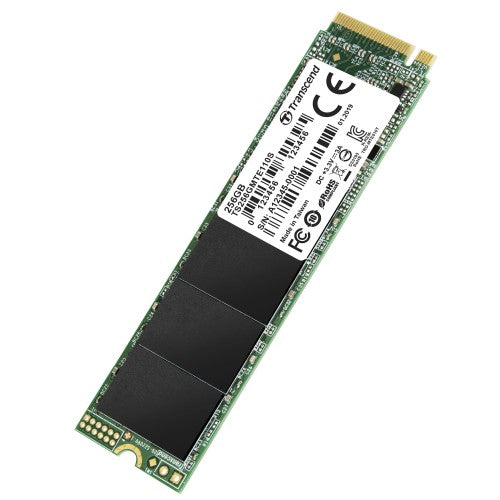

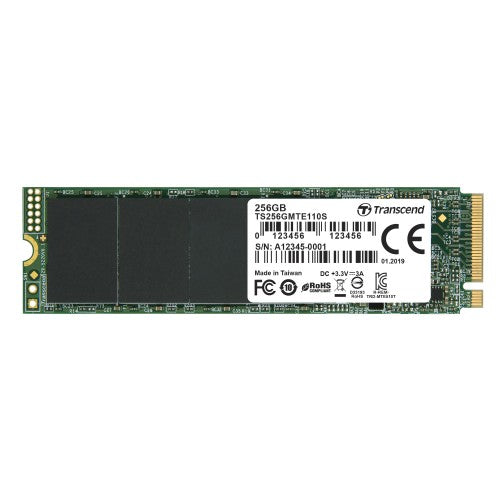

Transcend MTE110S, 256GB, NVMe PCIe Gen3 x4, 1600/800 MB/s
Key Features
- Adopts PCIe Gen3 x4 interface and NVMe 1.3 standard
- Up to 1,700 MB/s read; 1,400 MB/s write
- 3D NAND flash memory
- Engineered with LDPC (Low-Density Parity Check) coding to ensure data integrity; built-in SLC caching technology for exceptional transfer speeds
- Engineered dynamic thermal throttling mechanism
Description
Transcend's PCIe SSD 110S utilizes the PCI Express® Gen3 x4 interface supported by the latest NVMe™ standard, to unleash next-generation performance. The PCIe SSD 110S aims at high-end applications, such as digital audio/video production, gaming, and enterprise use, which require constant processing heavy workloads with no system lags or slowdowns of any kind. Powered by 3D NAND flash memory, the PCIe SSD 110S gives you not only fast transfer speeds but unmatched reliability.
Compelling performance for high-end applicationsTranscend's PCIe SSD 110S follows NVMe 1.3 and utilizes the PCIe™ Gen3 x4 interface, meaning four lanes are used for transmitting and receiving data simultaneously, resulting in compelling performance of up to 1,700MB/s read and 1,400MB/s write.
Note: Performance is based on CrystalDiskMark v5.0.2.
Understanding the PCIe interfacePCIe (or PCI Express®) is a much faster interface than SATA (or Serial ATA) for connecting a host computer to solid-state storage devices over one or more lanes consisting of one transmit and one receive serial interface in each lane, meaning it can better fulfill new performance requirements.
Understanding the NVMe standardNVMe (or NVM Express®) is a host controller interface standard designed to address the needs of enterprise and client applications that utilize PCI Express-based solid-state storage. NVMe calls for better performance vectors than AHCI (Advanced Host Controller Interface), including scalable bandwidth, increased IOPS, and low latency.]
3D expansion to break through limitsUnlike the existing planar NAND chips, 3D NAND flash is a type of flash memory in which the memory cells are stacked vertically in multiple layers. 3D NAND is developed to break through density limitations of the 2D planar NAND, and thus can deliver a greater level of performance and endurance.
Better endurance, higher reliabilityTranscend's PCIe SSD 110S is engineered with LDPC (Low-Density Parity Check) coding, a powerful ECC algorithm, to keep data secure. Manufactured with high-quality NAND flash chips, and engineered dynamic thermal throttling mechanism, the PCIe SSD 110S guarantees superior endurance and stability for high-end applications.
Transcend SSD Scope softwareTo keep your Transcend SSD running fast and error-free, Transcend's SSD Scope software application is available for download free of charge. Monitor your SSD's health status with S.M.A.R.T. technology, enable the TRIM command for optimum write speeds, keep your SSD's firmware up-to-date, and migrate data from your original drive to a new SSD with just a few clicks.
Guaranteed qualityTo ensure the utmost level of quality, Transcend SSDs undergo rigorous testing at all stages of production, including tests for vibration, temperature and humidity, speed, and functionality.
Specifications
| Hard drive |
|---|
| SSD capacity |
256 GB |
| Memory type |
3D NAND |
| Performance |
|---|
| Windows operating systems supported |
Windows 10, Windows 7, Windows 8 |
| Mac operating systems supported |
No |
| Linux operating systems supported |
Kernel 2.6.31 |
| Interface |
PCI Express 3.0 |
| Component for |
PC/Laptop |
| NVMe |
Yes |
| NVMe version |
1.3 |
| Low-density parity-check (LDPC) |
Yes |
| TBW rating |
100 |
| SSD capacity |
256 GB |
| S.M.A.R.T. support |
Yes |
| Read speed |
1600 MB/s |
| TRIM support |
Yes |
| Write speed |
800 MB/s |
| Memory type |
3D NAND |
| Random write (4KB) |
95000 IOPS |
| Random read (4KB) |
110000 IOPS |
| Mean time between failures (MTBF) |
2000000 h |
| Data transmission |
|---|
| Read speed |
1600 MB/s |
| Write speed |
800 MB/s |
| Random write (4KB) |
95000 IOPS |
| Random read (4KB) |
110000 IOPS |
| Endurance |
|---|
| Mean time between failures (MTBF) |
2000000 h |
| Features |
|---|
| Interface |
PCI Express 3.0 |
| Component for |
PC/Laptop |
| NVMe |
Yes |
| NVMe version |
1.3 |
| Low-density parity-check (LDPC) |
Yes |
| TBW rating |
100 |
| SSD capacity |
256 GB |
| Windows operating systems supported |
Windows 10, Windows 7, Windows 8 |
| S.M.A.R.T. support |
Yes |
| Read speed |
1600 MB/s |
| TRIM support |
Yes |
| Write speed |
800 MB/s |
| Mac operating systems supported |
No |
| Linux operating systems supported |
Kernel 2.6.31 |
| Memory type |
3D NAND |
| Random write (4KB) |
95000 IOPS |
| Random read (4KB) |
110000 IOPS |
| Mean time between failures (MTBF) |
2000000 h |
| Certification |
CE/FCC/BSMI/KC/RCM |
| SSD form factor |
M.2 |
| Harmonized System (HS) code |
84717070 |
| Power |
|---|
| Operating voltage |
3.3 V |
| Certificates |
|---|
| Certification |
CE/FCC/BSMI/KC/RCM |
| Design |
|---|
| Component for |
PC/Laptop |
| Certification |
CE/FCC/BSMI/KC/RCM |
| SSD form factor |
M.2 |
| Weight & dimensions |
|---|
| Width |
0.866" (22 mm) |
| Weight |
0.282 oz (8 g) |
| Height |
3.15" (80 mm) |
| Depth |
0.141" (3.58 mm) |
| System requirements |
|---|
| Windows operating systems supported |
Windows 10, Windows 7, Windows 8 |
| Mac operating systems supported |
No |
| Linux operating systems supported |
Kernel 2.6.31 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 70 °C |
| Technical details |
|---|
| Interface |
PCI Express 3.0 |
| S.M.A.R.T. support |
Yes |
| Operating temperature (T-T) |
0 - 70 °C |
| TRIM support |
Yes |
| SSD form factor |
M.2 |
| Software |
|---|
| Windows operating systems supported |
Windows 10, Windows 7, Windows 8 |
| Mac operating systems supported |
No |
| Linux operating systems supported |
Kernel 2.6.31 |
| Logistics data |
|---|
| Harmonized System (HS) code |
84717070 |
