USB-C Dock - 4K HDMI, VGA, USB 3.x (5Gbps), USB-A/C Hub, Gigabit Ethernet, Memory Card Slots, 100W PD Charging

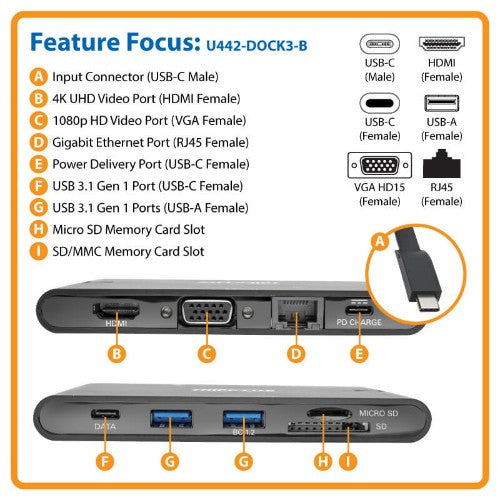

Key Features
- Converts audio/video signals from sources supporting USB-C DisplayPort Alt Mode
- Supports Ultra HD 4K resolutions up to 3840 x 2160 @ 30 Hz for crystal-clear HDMI video
- Joins a wired Gigabit Ethernet network when no Wi-Fi is available
- Supports 20V 5A (100W) power output for fast-charging the host device
- USB-C, USB-A and memory card ports allow connection of flash drives and other peripherals
Description
USB-C Docking Station Turns Your Device’s USB-C or Thunderbolt 3 Port into a Multiport WorkstationThis USB-C dock with PD Charging expands the potential of your Chromebook or Windows laptop’s USB-C or Thunderbolt 3 port. It’s ideal for transmitting 4K video and digital audio to a large display, adding a thumb drive or other USB peripheral, powering and charging a PD Charging 3.0-compliant mobile device, connecting to a Gigabit Ethernet network and a lot more—all at the same time.
Please note: The U442-DOCK3-B is incompatible while using 2019 Apple MacBook OS Big Sur 11.X.X.
Supports USB-C DisplayPort Alternate Mode for Transmitting Audio/Video SignalsBy connecting the built-in USB-C cable to a source device that supports USB DisplayPort Alt Mode, you can output 4K video and digital audio to a compatible monitor, television or projector without installing special software drivers.
Transmits Crystal-Clear 4K Video and Digital Audio to an HDMI MonitorTo send digital audio and Ultra High Definition video to a 4K-ready HDMI television, projector or monitor, connect the corresponding port to the display using an HDMI cable (sold separately). The HDMI port supports Ultra HD video resolutions up to 3840 x 2160 (4K x 2K) at 30 Hz. The VGA port supports high-definition resolutions up to 1920 x 1200, including 1080p, at 60 Hz. Only one monitor may be connected at a time. A DVI display may be connected to the HDMI port using an HDMI to DVI adapter (sold separately).
USB Ports Connect Keyboards, Thumb Drives and Other PeripheralsThe two USB-A hub ports and single USB-C data port accept USB peripherals, such as flash drives, mice, keyboards and printers, and share a maximum 10W (5V 2A) of power. They support fast USB 3.2 Gen 1 data transfer rates up to 5 Gbps and are backward compatible with USB 2.0 and USB 1.1 devices. One USB-A port also supports 5V 1.5A (7.5W) of power dedicated to fast-charging your mobile device. Note: Host must support USB OTG (On-the-Go).
PD Charging Port Charges the Connected Notebook, Tablet or Other DeviceThe USB-C port also supports Power Delivery (PD) 3.0 charging of connected PD Charging-compliant devices, such as Chromebooks, Kindles, iPads and Android smartphones. Connect the device’s AC wall charger to the USB-C PD port, which supports power input up to 20V 5A (100W). This port, as mentioned above, can also be used for transferring data up to 5 Gbps. Note: USB-C PD port does not support Quick Charge (QC).
Accesses a Wired Gigabit Ethernet NetworkThe RJ45 port offers access to a Gigabit Ethernet network when Wi-Fi is unavailable or when a wired connection offers faster speeds. Connect using a UTP cable (sold separately), and enjoy true 10/100/1000 Mbps Ethernet speeds for fast data transfers.
Allows External Memory AccessThe memory card slots support Micro SD and SD/MMC cards for transferring data to and from your connected computer, laptop or tablet. Only one memory card slot can be used at a time.

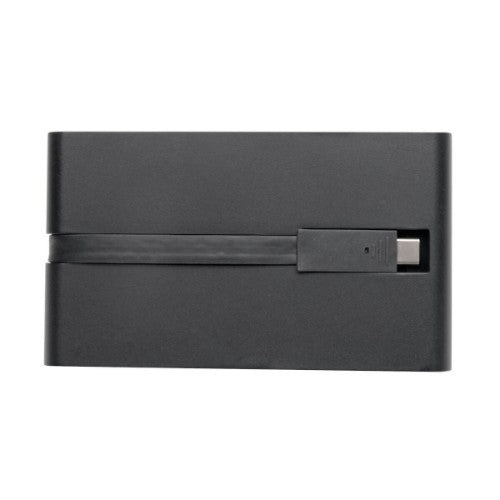

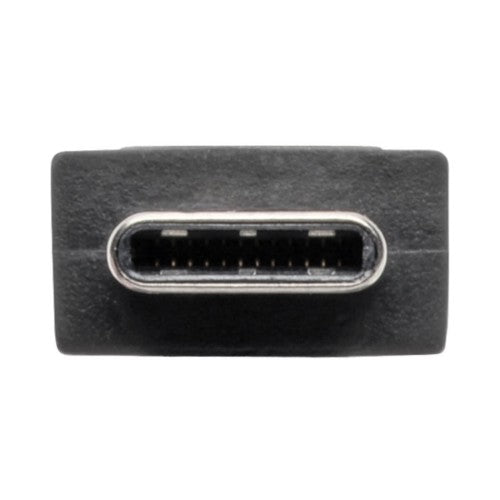

Built-In USB-C Cable Connects in Either DirectionUnlike traditional USB cables that connect in only one direction, the reversible USB-C male connector plugs into a USB-C or Thunderbolt 3 port in either direction for an instant connection every time. The built-in cable tucks away beneath the compact unit for safe carrying in a pocket, briefcase or laptop bag.
Ready to Use Right Out of the PackageThe plug-and-play USB-C dock for Windows laptops, Chromebooks and other devices requires no software or external power. Drivers will install automatically the first time the dock is connected (Note: the host computer must have administrative rights or the drivers may fail to install correctly). The compact unit fits easily into a pocket, briefcase or laptop bag for connecting on the go.
Specifications
| Ports & interfaces |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
4 |
| Host interface |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 2.0 ports quantity |
0 |
| USB connector type |
USB Type-C |
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI ports quantity |
1 |
| HDMI version |
1.4 |
| VGA (D-Sub) ports quantity |
1 |
| Microphone in |
No |
| Headphone outputs |
0 |
| Connectivity technology |
Wired |
| Network |
|---|
| Auto MDI/MDI-X |
Yes |
| Networking standards |
IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
1000 Mbit/s |
| Ethernet LAN (RJ-45) ports |
1 |
| Performance |
|---|
| Maximum digital resolution |
3840 x 2160 pixels |
| Auto MDI/MDI-X |
Yes |
| Country of origin |
Vietnam |
| Product colour |
Black |
| Card reader integrated |
Yes |
| LED indicators |
Activity, Power |
| Data transfer rate |
5 Gbit/s |
| Compatible memory cards |
MicroSD (TransFlash), SD |
| Charging function |
Yes |
| Certification |
CE, FCC |
| Housing material |
Plastic |
| Technical details |
|---|
| Product colour |
Black |
| Data transfer rate |
5 Gbit/s |
| Charging function |
Yes |
| Master (outer) case GTIN (EAN/UPC) |
10037332213492 |
| Harmonized System (HS) code |
84733020 |
| Compliance certificates |
RoHS |
| Products per master (outer) case |
10 pc(s) |
| Master (outer) case width |
8.66" (220 mm) |
| Master (outer) case gross weight |
2.91 lbs (1.32 kg) |
| Master (outer) case length |
6.1" (154.9 mm) |
| Master (outer) case height |
3.94" (100.1 mm) |
| Storage |
|---|
| Card reader integrated |
Yes |
| Compatible memory cards |
MicroSD (TransFlash), SD |
| Power |
|---|
| Power source type |
USB |
| Power consumption (typical) |
5 W |
| Software |
|---|
| Windows operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Mac compatibility |
Yes |
| Indication |
|---|
| LED indicators |
Activity, Power |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 45 °C |
| Storage temperature (T-T) |
-10 - 70 °C |
| Operating relative humidity (H-H) |
10 - 85% |
| Storage relative humidity (H-H) |
5 - 90% |
| Weight & dimensions |
|---|
| Weight |
3.17 oz (90 g) |
| Depth |
8.3" (210.8 mm) |
| Package weight |
4.23 oz (120 g) |
| Package width |
5.51" (140 mm) |
| Package depth |
3.35" (85.1 mm) |
| Package height |
0.791" (20.1 mm) |
| Design |
|---|
| Windows operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Country of origin |
Vietnam |
| Product colour |
Black |
| LED indicators |
Activity, Power |
| Certification |
CE, FCC |
| Packaging data |
|---|
| Quantity per pack |
1 pc(s) |
| Package weight |
4.23 oz (120 g) |
| Package width |
5.51" (140 mm) |
| Package depth |
3.35" (85.1 mm) |
| Package height |
0.791" (20.1 mm) |
| Packaging content |
|---|
| Manual |
Yes |
| Quantity per pack |
1 pc(s) |
| Certificates |
|---|
| Certification |
CE, FCC |
| Logistics data |
|---|
| Products per master (outer) case |
10 pc(s) |
| Master (outer) case width |
8.66" (220 mm) |
| Master (outer) case gross weight |
2.91 lbs (1.32 kg) |
| Master (outer) case length |
6.1" (154.9 mm) |
| Master (outer) case height |
3.94" (100.1 mm) |
| Harmonized System (HS) code |
84733020 |
