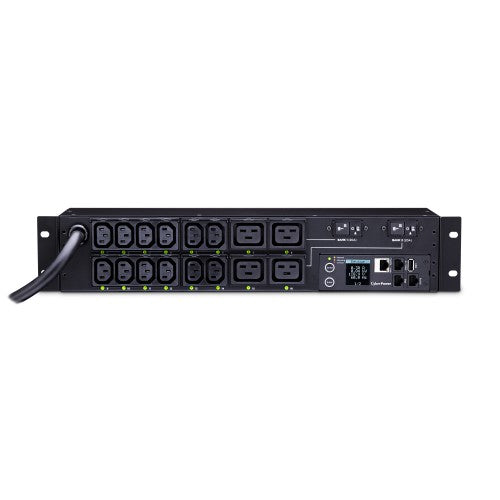

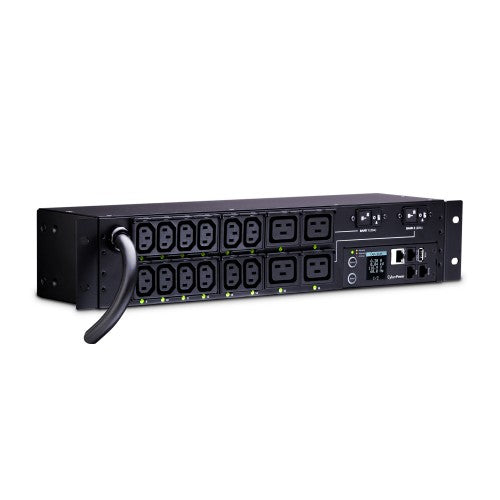

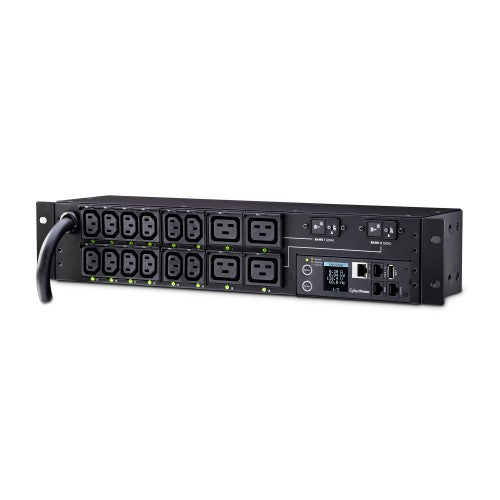

CyberPower PDU41008 power distribution unit (PDU) 16 AC outlet(s) 2U Black

12x IEC-320 C13, 4x IEC-320 C19m NEMA L6-30P, 200-240V, 50/60Hz, 30A, RJ-45, Serial, 2U, 433x88x112 mm

Key Features

• Switched PDU
• Local and Network Outlet Switching
• SNMP Network Interface
• Controllable Receptacles
• Industrial-Grade Metal Housing

Description

The CyberPower PDU41008 is a 2U rackmount switched power distribution unit or PDU that has 16 outlets and provides 200-240V 30A output. This PDU distributes power to twelve IEC C13 receptacles and four IEC C19 receptacles from a single NEMA L6-30P plug with unfiltered electrical pass-through.

Using the CyberPower Management Console, a web browser, and the RJ45 Ethernet port for network connection, the user can manage the switched outlet receptacles individually or collectively over the network. In addition, the user can manage the switched outlet receptacles locally by using the LCD controls. Outlets can be turned on, turned off, or cycled on demand. The user can also schedule outlets to address a number of needs: remote rebooting of locked equipment, load shedding, power sequencing, and locking out unauthorized loads.

The PDU41008 comes with a three-year limited warranty that covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date.

Power Distribution
Delivers AC power to servers, equipment, and connected devices via a power distribution unit.

Switch-Free Design
Safeguards against accidental power shutdown.

Switchable Outlets
Provides local and remote control for individual and multiple outlets. Local control: turn on/turn off outlets and disable unused outlets. Remote control: restart outlets and devices, turn on/turn off, schedule power on/off sequencing, and disable unused outlets.

CyberPower Management Console
CyberPower Management Console is a hardware interface built into switched PDUs. Users can remotely switch individual PDU.

Remote and Local Monitoring
The user is able to track PDU vitals both offsite and onsite. It also provides control to turn on/off individual outlets or circuits.

Automatic Event Notifications
Provide immediate updates about power events via email, SMS text, or SNMP traps.

Upgradeable Firmware
Downloadable firmware updates that provide improvements to programs that run the PDU.

Power Control Display
Provides easy-to-read information about amperage, voltage, KW, IP address, and other PDU information.

Network-Grade Plugs and Outlets
Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices.

Twist-Lock Plug
The user can secure the plug into an outlet by twisting and locking into place to prevent accidental disconnection.

Long Input Power Cord
Allows the user to place the PDU where it’s needed because the power cord reaches distant power sources.

Cord Retention Tray
Secures power cords. Keeps cord organized and accessible by securing power cord. The cord-retention tray also helps cords stay plugged in.

Configurable Mounting Brackets
Allows for installation of the PDU in the following configurations: 0U (vertical, under counter, and wall mount), 1U (horizontal, vertical, under counter, and wall mount), and 2U (horizontal and wall mount).

Three-Year Limited Warranty
Covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date. See warranty for details.

Specifications

Design
Type	Single-phase
PDU types	Switched
Mounting	Horizontal/Vertical
Display	LCD
Product colour	Black
Certification	UL 60950, FCC A
Rack capacity	2U
Housing material	Steel
Ports & interfaces
AC outlets quantity	16 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler
Power plug	NEMA L6-30P
Serial ports quantity	1
Ethernet LAN (RJ-45) ports	1
Features
Cable length	145.7" (3.7 m)
LED indicators	Yes
Certification	UL 60950, FCC A
Management features
Management protocols	IPv4, TCP/IP, UDP, SNMPv1, HTTP, NTP, DNS, Telnet, DHCP, SMTP, FTP, IPv6, SNMPv3, HTTPs, SSH, SSL, TLS, LDAP(S), RADIUS, Syslog, CLI, Windows AD
Firmware upgradeable via	Network, USB
Firmware upgradeable	Yes
Monitoring	Current, Power, Voltage
Ergonomics
Cable length	145.7" (3.7 m)
LED indicators	Yes
Display	LCD
Power
Nominal input voltage	200-240 V
Nominal output voltage	200-240 V
Power protection features	Overload
Maximum current	30 A
AC input frequency	50 - 60 Hz
Weight & dimensions
Dimensions (WxDxH)	17 x 4.41 x 3.46" (433 x 112 x 88 mm)
Weight	9.9 lbs (4.49 kg)
Width	17" (433 mm)
Depth	4.41" (112 mm)
Height	3.46" (88 mm)
Package width	19.7" (500 mm)
Package depth	9.84" (250 mm)
Package height	5.91" (150 mm)
Package weight	14.3 lbs (6.48 kg)
Package dimensions (WxDxH)	19.7 x 9.84 x 5.91" (500 x 250 x 150 mm)
Packaging data
Package width	19.7" (500 mm)
Package depth	9.84" (250 mm)
Package height	5.91" (150 mm)
Package weight	14.3 lbs (6.48 kg)
Package dimensions (WxDxH)	19.7 x 9.84 x 5.91" (500 x 250 x 150 mm)
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Operating altitude	0 - 137795.3" (0 - 3500 m)
Non-operating altitude	0 - 590551.2" (0 - 15000 m)
Technical details
Compliance certificates	RoHS
