StarTech.com MCMGBSCSM10 network media converter 1000 Mbit/s 1310 nm Single-mode Black

StarTech.com Singlemode (SM) SC Fiber Media Converter for 10/100/1000 Network - 10km - Gigabit Ethernet - 1310nm - w/ Auto Negotiation (MCMGBSCSM10)

Description

Convert and extend a Gigabit Ethernet connection up to 10 km over single-mode SC fiber

This fiber media converter converts and extends a Gigabit Ethernet (1000 Mbps) network up to 10 km over single-mode fiber on 1000BASE-LX networks.

Extend your GbE network cost-effectively

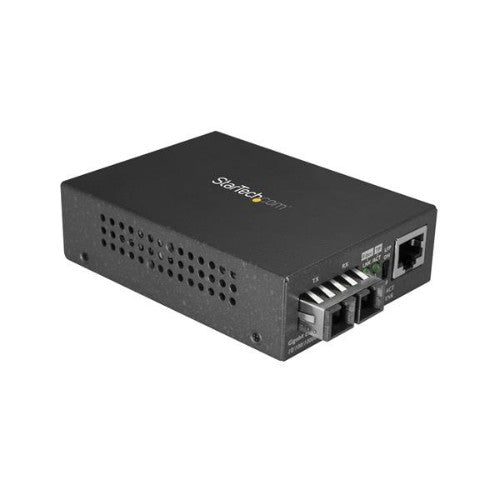

The fiber media converter provides a cost-effective way to transparently convert copper to fiber, or fiber to copper, for connecting remote sub-networks to larger fiber-optic networks. Providing both SC fiber and RJ45 Ethernet ports, it integrates easily into a wide range of Gigabit Ethernet network infrastructures. The RJ45 port supports triple-speed (10/100/1000 BASE-T) auto-negotiation.

Reliable and scalable network connectivity

Supporting a maximum single-mode fiber cable distance of up to 10 km (6.2 mi.), the media converter delivers a simple and reliable solution for connecting Gigabit Ethernet networks to remote locations, while ensuring solid network performance. It provides optimum network scalability for connecting two or more Ethernet network nodes, for instance, connecting two buildings on the same campus or facility. The media converter also delivers high-speed bandwidth to meet the increasing demands of large-scale workgroups that require expansion of a Gigabit Ethernet network.

The MCMGBSCSM10 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

Specifications

Network
Fiber optic connector	SC
Jumbo frames support	Yes
Store-and-forward	Yes
Jumbo frames	9000
Converter input interface	10Base-T, 100Base-TX, 1000Base-T
Networking standards	IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Duplex system	Full
Converter output interface	100Base-LX
Auto MDI/MDI-X	Yes
Maximum data transfer rate	1000 Mbit/s
Technical details
Wavelength	1310 nm
Maximum transfer distance	393700.8" (10000 m)
Fiber mode structure	Single-mode
Internal	No
Harmonized System (HS) code	85176990
Compliance certificates	RoHS
Performance
Jumbo frames support	Yes
Store-and-forward	Yes
Wavelength-division multiplexing (WDM)	No
Wavelength	1310 nm
Maximum transfer distance	393700.8" (10000 m)
Fiber mode structure	Single-mode
Mean time between failures (MTBF)	50000 h
Ports & interfaces
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
Fiber optic connector	SC
Indication

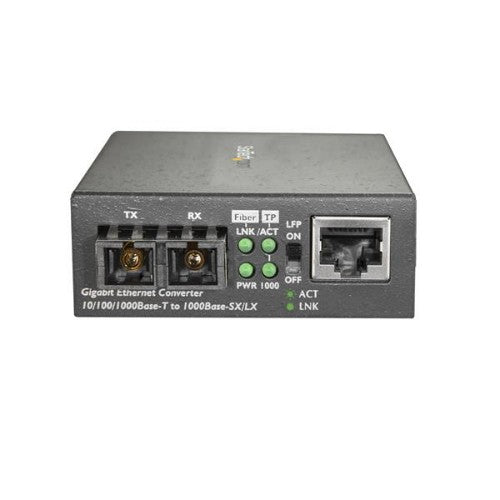

LED indicators	Activity, Link, Power
Design
LED indicators	Activity, Link, Power
Product colour	Black
Certification	CE, FCC
Internal	No
Endurance
Mean time between failures (MTBF)	50000 h
Power
Power plug type	Type N
Input voltage	100 - 240 V
Input current	0.5 A
Output voltage	5 V
Output current	2.6 A
External power adapter	Yes
Colour
Product colour	Black
Weight & dimensions
Width	4.13" (105 mm)
Depth	2.76" (70 mm)
Weight	6.91 oz (196 g)
Height	1.02" (26 mm)
Package depth	11.2" (285 mm)
Package width	5.43" (138 mm)
Package height	2.6" (66 mm)
Package weight	19.8 oz (560 g)
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	5 - 90%
Packaging data
Package depth	11.2" (285 mm)
Package width	5.43" (138 mm)
Package height	2.6" (66 mm)
Package weight	19.8 oz (560 g)
Packaging content
Quick installation guide	Yes

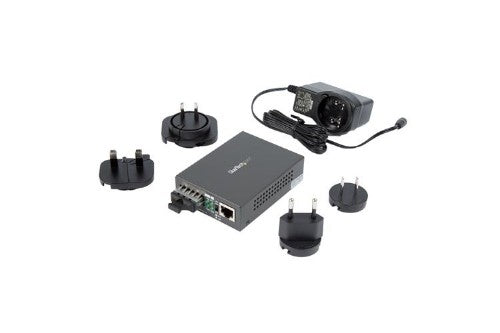

AC adapter included	Yes
Certificates
Certification	CE, FCC
Logistics data
Harmonized System (HS) code	85176990
