Tripp Lite DMCS3770L signage display mount 70" Black

Rolling TV/Monitor Cart - for 37” to 70” TVs and Monitors - Classic Edition

Key Features

• Accepts most popular flat-panel displays from 37 to 70 in.
• Moves easily through doorways and over thresholds on durable metal casters
• Display adjusts in height from 52.5 to 67.5 in. for most comfortable viewing angle
• Adjustable shelf holds laptop, Blu-ray player, webcam and other necessary components
• Sturdy aluminum and steel construction built to withstand frequent movement
• Supports up to 88 lbs (39.9 kgs)

Description

Move Your Flat-Panel Display and Components Wherever You Want Them

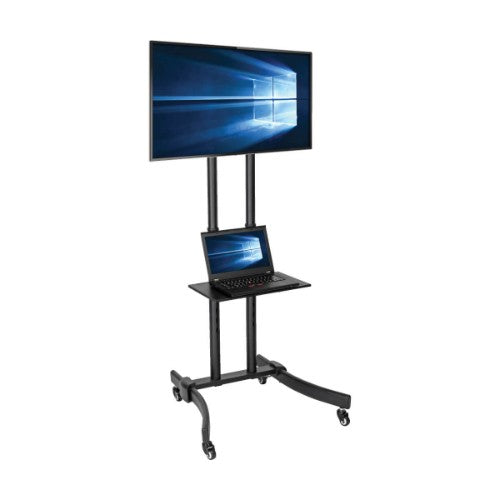

The DMCS3770L Rolling TV Stand allows you to install a flat-panel television or monitor and its components (Blu-ray player, laptop, webcam, DVR), and then roll them safely and smoothly from room to room or from one corner of the room to another. The rolling TV stand is recommended for classrooms, lecture halls, offices, auditoriums, conference rooms and other settings where you need your audio/video equipment to be mobile. Supports up to 88 pounds (39.9 kg)

Designed to Match a Wide Variety of Applications
The height-adjustable mobile TV floor stand fits most LCD, plasma and other flat-panel displays from 37 to 70 inches. Its durable aluminum and steel frame supports up to 88 pounds (39.9 kg). You can raise or lower the height of the display from 52.5 to 67.5 inches above the floor, and adjust the display to an appropriate viewing angle from -10° to +10°.

Rolls Easily from Place to Place on Sturdy Metal Casters
The mobile TV cart with wheels rolls almost effortlessly to the proper viewing location and angle on sturdy four-inch swivel casters with rubber wheels that move smoothly in any direction through doorways and over thresholds. The rear casters lock to keep the stand securely in position while at rest. Equipment cables route through the stand's telescoping poles to keep them organized and out of the way during transport.

Convenient Shelf Holds Components in Place
A height-adjustable shelf mounted below the display holds various audio/video components, such as a Blu-ray player, laptop, webcam, cable box, DVR or video game system. The shelf measures 11 x 19-inches and supports up to 22 pounds (9.9 kg).

Complies with VESA Standards
The DMCS3770L conforms to VESA-compliant displays with any of the following standard mounting hole patterns: 200 x 200, 200 x 300, 200 x 400, 300 x 200, 300 x 300, 300 x 400, 400 x 200, 400 x 300, 400 x 400, 500 x 300, 500 x 400, 600 x 300 and 600 x 400.

5-Year Warranty and Environmentally Responsible Design
The DMCS3770L comes with a 5-year warranty. It's manufactured in compliance with strict RoHS specifications.

Specifications

Mounting
Minimum screen size	37"
Maximum weight capacity	88.2 lbs (40 kg)
Panel mounting interface	200 x 200,300 x 300,400 x 200,400 x 400,600 x 400
Number of displays supported	1
Mounting type	Floor
Minimum VESA mount	7.87 x 7.87" (200 x 200 mm)
Maximum VESA mount	15.7 x 15.7" (400 x 400 mm)
Maximum screen size	70"
Design
Type	Portable flat panel floor stand
Housing material	Aluminum, Steel
Product colour	Black
Weight & dimensions
Width	27.6" (701 mm)
Depth	27.6" (701 mm)
Height	67.5" (1714.5 mm)
Weight	34.6 lbs (15.7 kg)
Package width	19.1" (485.1 mm)
Package depth	40.8" (1036.3 mm)
Package height	3.1" (78.7 mm)
Package weight	38.1 lbs (17.3 kg)
Packaging data
Package width	19.1" (485.1 mm)
Package depth	40.8" (1036.3 mm)
Package height	3.1" (78.7 mm)
Package weight	38.1 lbs (17.3 kg)
Packaging content
Quantity	1
Technical details
Quantity	1
Number of displays supported	1
Mounting type	Floor
Other features
Country of origin	China
Master (outer) case GTIN (EAN/UPC)	10037332213478
Logistics data
Master (outer) case width	19.9" (505.5 mm)
Master (outer) case length	3.9" (99.1 mm)
Master (outer) case height	41.7" (1059.2 mm)
Master (outer) case gross weight	38.4 lbs (17.4 kg)
Products per master (outer) case	1 pc(s)
Master (outer) case GTIN (EAN/UPC)	10037332213478
Harmonized System (HS) code	85299097
