Thermaltake Versa H18 Micro Tower Black

Micro Case, USB 3.0, 4 expansion slots, 390 x 205 x 380mm, Black

Description

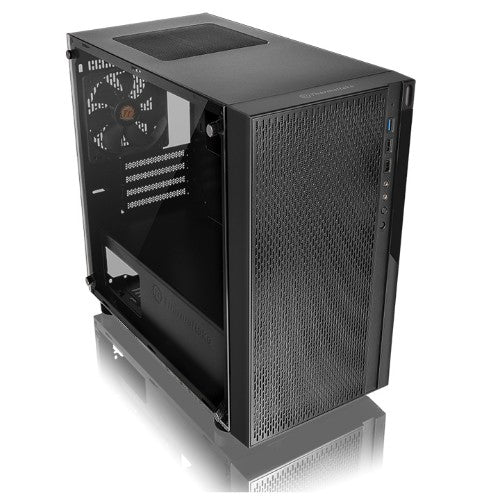

Versa H18 Tempered Glass Edition Micro Case
Designed for entry-level PC builders and gamers, Thermaltake Versa H18 Tempered Glass Edition Micro Case features the simplicity appearance with easy cable management design, AIO liquid cooling compatible, and ample ventilation options. Supporting the latest PC hardware and all high-end GPU solutions, the Versa H18 TG is a good choice for those who opt for stylish PC case with manageable frame size and advanced features.

Built for Gamers

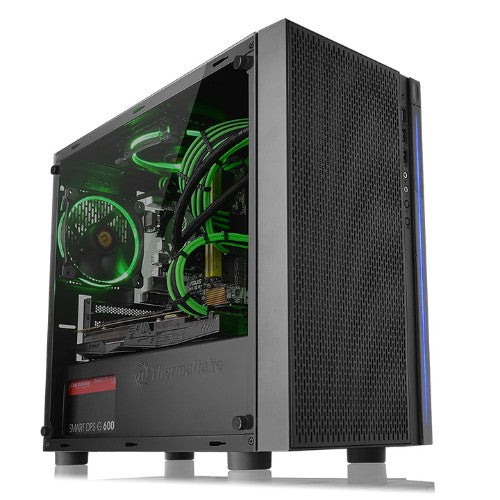

The beautiful tempered glass window allows users to display all component of the build, offering a direct view of inner system. The mesh front panel and perforated top panel plus the heighted foot-stands at the bottom provide efficient airflow for the system.

Easy Cable Management

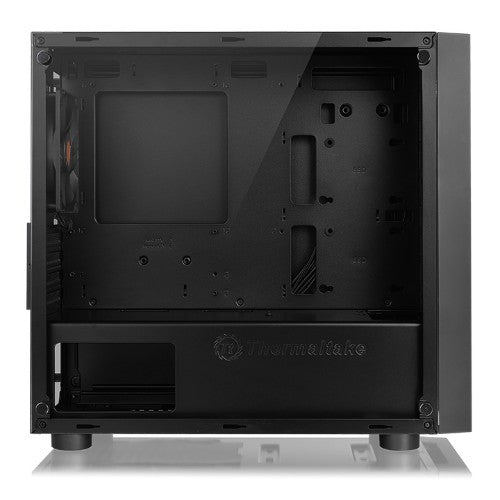

Wiring tangled problem no longer exists with the cable routing gap, hiding cables behind motherboard tray to ensure smoothness for building the system as well as better airflow. Plus, the pre-mounted PSU cover allows the entire bottom area of the case to be used to reorganize unused cables.

Superior Hardware Support
The Versa H18 TG supports motherboards up to Micro ATX, a tower CPU cooler with maximum height 155mm, and a dual expansion slot VGA of up to 350mm in length without front fan. The hidden drive bays can house up to two 2.5” and two 3.5” storage devices at same time.

AIO Liquid Cooling Compatible
Supporting all types of AIO liquid cooling solutions, the Versa H18 TG has the capability to accommodate up to one 280mm radiator at the front and one 120mm radiator at the rear.

Optimized Ventilation

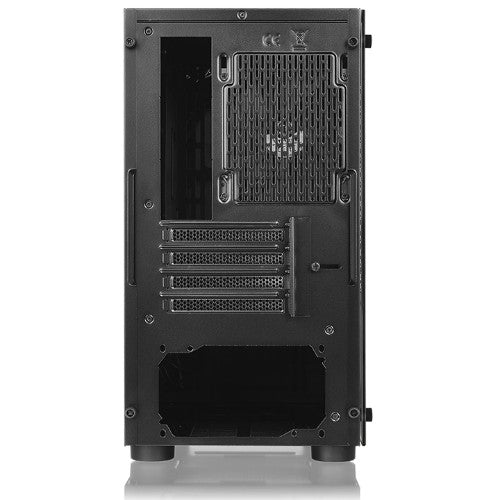

Standard equipped with one 120mm rear fan along with optional three 120mm or two 140mm intake fans as well as one 120mm/140mm exhaust fans provides efficient airflow for the system.

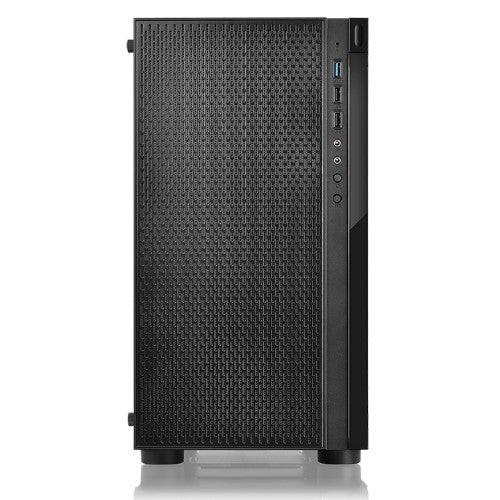

Handy I/O Ports
The front panel is designed a USB 3.0 data transfer port along with two standard USB 2.0 ports and a HD microphone and headset jacks, to grand direct access when needed.

Specifications

Technical details
Number of 3.5" bays	2
Number of 2.5" bays	2
Supported motherboard form factors	micro ATX, Mini-ITX
Supported HDD sizes	2.5,3.5"
Side window	Yes
Reset button	Yes
Product colour	Black
Number of expansion slots	4
Maximum CPU cooler height	6.1" (15.5 cm)
Maximum graphics card length	13.8" (35 cm)
Maximum PSU length	8.66" (22 cm)
Type	PC
Form factor	Micro Tower
Material
Material	SPCC
Indication
Illumination	No
Ergonomics
Reset button	Yes
On/off button	Yes
Design
Number of external 5.25" bays	0
Material	SPCC
Number of 3.5" bays	2
Number of 2.5" bays	2
Supported motherboard form factors	micro ATX, Mini-ITX
Side window	Yes
Reset button	Yes
Illumination	No
Product colour	Black
Number of expansion slots	4
Maximum CPU cooler height	6.1" (15.5 cm)
Maximum graphics card length	13.8" (35 cm)
Maximum PSU length	8.66" (22 cm)
Type	PC
Form factor	Micro Tower
On/off button	Yes
Tempered glass panel(s)	Yes
RGB control button	Yes
Power supply
Power supply included	No
Power supply location	Bottom
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Audio input	Yes
Audio output	Yes
USB 2.0 ports quantity	2
Cooling
Front radiator installed	No
Front radiator sizes supported	240,280 mm
Rear radiator installed	No
Rear radiator sizes supported	120 mm
Top radiator installed	No
Number of front fans supported (max)	3
Front fans diameters supported	120,140 mm
Rear fans installed	1x 120 mm
Number of rear fans supported (max)	1
Rear fans diameters supported	120 mm
Number of top fans supported (max)	3
Top fans diameters supported	120,140 mm
Storage
Supported HDD sizes	2.5,3.5"
Weight & dimensions
Width	8.07" (205 mm)
Depth	15" (380 mm)
Height	15.4" (390 mm)
Weight	12.2 lbs (5.55 kg)
