27" Touchscreen Monitor, 1920 x 1080 px, 300 cd/m², 14 ms, 178°/178°, 16:9, HDMI, 28W, VESA
Description

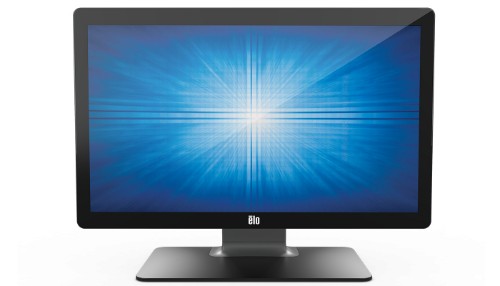

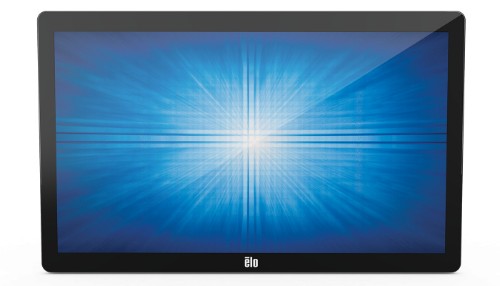

The Elo 2702L 27-inch touchscreen monitor delivers a professional-grade interactive solution with Elo’s industry-leading TouchPro PCAP technology featuring edge-to-edge glass and enabling up to 10 simultaneous touches. The clear glass touchscreen provides exceptional image clarity, resolution, and light transmission for vivid images and details. Backed by a three-year warranty, the feature rich touchscreen monitor is equipped with dual built-in speakers and VGA and HDMI video connectors. With a compact form factor, clean design aesthetic and flexible mounting options, these touchscreens are well-suited for POS, interactive digital signage and self-service.
Designed for commercial use, the new Elo touchscreen monitor makes business operations easy delivering energy efficiency and versatile accessories. The 2702L accessories include MSR, barcode scanner, fingerprint reader, NFC, customer facing display, handles and privacy screens. Third party peripherals can be easily added as well with the integrated USB 2.0 hub.
Specifications
| Display |
|---|
| Display number of colours |
16.78 million colors |
| Panel type |
TFT |
| Number of simultaneous touchpoints |
10 |
| Touchscreen |
Yes |
| Display technology |
LCD |
| Display diagonal |
27" |
| Display resolution |
1920 x 1080 pixels |
| Display brightness |
300 cd/m² |
| HD type |
Full HD |
| Response time |
14 ms |
| Contrast ratio (typical) |
1000:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Supported graphics resolutions |
640 x 400, 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 800 (WXGA), 1366 x 768, 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+) |
| Maximum refresh rate |
60 Hz |
| Touchscreen technology |
Capacitive |
| Ports & interfaces |
|---|
| HDMI ports quantity |
1 |
| Micro-USB ports quantity |
4 |
| Audio |
|---|
| RMS rated power |
4 W |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Product colour |
Black, Silver |
| Panel mounting interface |
100 x 100 mm |
| VESA mounting |
Yes |
| Screen shape |
Flat |
| Wall mountable |
Yes |
| Performance |
|---|
| International Protection (IP) code |
IPX1 |
| Mean time between failures (MTBF) |
50000 h |
| On Screen Display (OSD) languages |
Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Russian |
| Number of OSD languages |
10 |
| Power |
|---|
| Power consumption (off) |
0.38 W |
| Power consumption (typical) |
28 W |
| Power consumption (standby) |
0.45 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Weight & dimensions |
|---|
| Width (with stand) |
25.5" (647.6 mm) |
| Height (with stand) |
17.8" (450.9 mm) |
| Depth (with stand) |
9.17" (233 mm) |
| Weight (with stand) |
23.1 lbs (10.5 kg) |
| Packaging data |
|---|
| Package width |
30.1" (764 mm) |
| Package depth |
12.7" (322 mm) |
| Package height |
22" (560 mm) |
| Package weight |
31.5 lbs (14.3 kg) |
| Quick start guide |
Yes |
| Cables included |
AC, Audio (3.5mm), HDMI, USB, VGA |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Cables included |
AC, Audio (3.5mm), HDMI, USB, VGA |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Storage relative humidity (H-H) |
10 - 95% |
| Technical details |
|---|
| VESA mounting |
Yes |
| Dimensions (W x D x H) with stand |
25.5 x 9.17 x 17.8" (647.6 x 233 x 450.9 mm) |
| Panel type |
TFT |
| Number of simultaneous touchpoints |
10 |
| Weight (without stand) |
16 lbs (7.24 kg) |
| Full HD |
Yes |
| Display viewable area (HxV) |
23.5 x 13.2" (597.9 x 336.3 mm) |
| Weight (with stand) |
23.1 lbs (10.5 kg) |
| Logistics data |
|---|
| Harmonized System (HS) code |
85285210 |
| Features |
|---|
| Harmonized System (HS) code |
85285210 |
| Wall mountable |
Yes |
| Other features |
|---|
| Dimensions (W x D x H) with stand |
25.5 x 9.17 x 17.8" (647.6 x 233 x 450.9 mm) |
| Panel type |
TFT |
| Number of simultaneous touchpoints |
10 |
| Weight (without stand) |
16 lbs (7.24 kg) |
| Display viewable area (HxV) |
23.5 x 13.2" (597.9 x 336.3 mm) |
| Width (with stand) |
25.5" (647.6 mm) |
| Quick start guide |
Yes |
| Mean time between failures (MTBF) |
50000 h |
| Height (with stand) |
17.8" (450.9 mm) |
| Headphone outputs |
1 |
| Display technology |
LCD |
| Digital vertical frequency |
50 - 75 Hz |
| Digital horizontal frequency |
30 - 82 kHz |
| Depth (with stand) |
9.17" (233 mm) |
| Built-in microphone |
No |
| Built-in camera |
No |
| Aspect ratio |
16:9 |
| AC adapter included |
Yes |
| Weight (with stand) |
23.1 lbs (10.5 kg) |
| Maximum refresh rate |
60 Hz |
| Micro-USB ports quantity |
4 |
