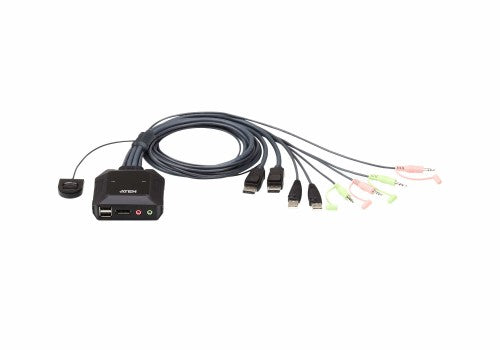

2-Port USB DisplayPort Cable KVM Switch with Remote Port Selector
Key Features
- One KVM console controls two USB DisplayPort computers
- Superior video quality – up to 4096 x 2160 @ 30 Hz
- Multiplatform support – Windows, Mac, and Linux
- Bus-powered design
Description
Having two computers running different projects at the same time can be a time saver, but having a KVM console set up to switch between computers via a pushbutton over one shared screen makes multitasking even more productive. Allow the CS22DP compact cable KVM switch to work its magic by de-cluttering your desktop workspace with a neat and space-efficient new look, and further enrich your operations with superb 4K audiovisual quality, making your desktop workflows more enjoyable.
Superior AV Performance in Vivid 4KThe CS22DP empowers your desktop operations with 4K audiovisual enhancement by presenting visual content in outstanding precision.
Smooth Cross-Platform IntegrationThe CS22DP enables the integration of different computer systems (Windows, Mac and Linux) that are accessible from one KVM console via one-button switching with the remote port selector.

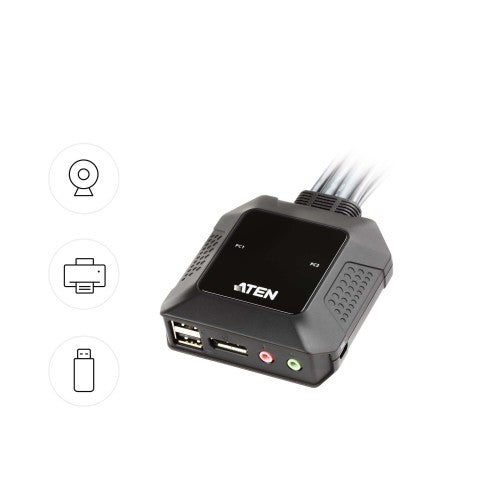

Flexible USB Peripheral SharingThe console USB ports can be used for plug-n-play connection to compatible USB 2.0 peripheral devices to fulfill data-intensive desktop work requirement.
Plug in. Power onThe CS22DP supports USB hot-plugging and is bus-powered by the connected KVM sources via USB ports.
ApplicationsThe CS22DP Cable KVM Switch allows for an ideal desktop setup in office, media design work and entertainment.
Specifications
| Ports & interfaces |
|---|
| Console USB ports quantity |
2 |

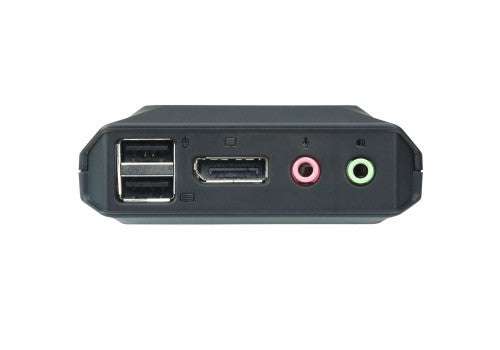

| Console ports |
3.5mm headphone, 3.5mm mic, DisplayPort, USB A |
| USB connector type |
Micro-USB B, USB Type-A |
| Number of microphone inputs |
1 |
| DisplayPorts quantity |
2 |
| DisplayPort version |
1.1 |
| Number of computers controlled |
2 |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| Video port type |
DisplayPort |
| Audio connections |
Yes |
| Headphone outputs |
1 |
| USB 2.0 Type-A hub ports quantity |
2 |
| Console DisplayPorts ports quantity |
1 |
| Cable length |
47.2" (1.2 m) |
| HDCP |
Yes |
| Network |
|---|
| Ethernet LAN |
No |
| Performance |
|---|
| HDCP |
Yes |
| HD type |
4K Ultra HD |
| Video bandwidth |
30 Hz |
| Hot-Plug support |
Yes |
| Maximum resolution |
4096 x 2160 pixels |
| Technical details |
|---|
| Product colour |
Black |
| Rack mounting |
No |
| Hot-Plug support |
Yes |
| LED indicators |
Yes |
| Compliance certificates |
RoHS |
| Design |
|---|
| Wired remote switch |
Yes |
| Remote switch cable length |
70.9" (1.8 m) |
| Product colour |
Black |
| Cable length |
47.2" (1.2 m) |
| Rack mounting |
No |
| LED indicators |
Yes |
| Housing material |
Plastic |
| Display |
|---|
| Built-in display |
No |
| Power |
|---|
| Power source |
DC |
| Power consumption (typical) |
1.38 W |
| Input voltage |
5 V |
| System requirements |
|---|
| Windows operating systems supported |
Yes |
| Linux operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Video |
|---|
| HD type |
4K Ultra HD |
| Video bandwidth |
30 Hz |
| Maximum resolution |
4096 x 2160 pixels |
| Sustainability |
|---|
| Compliance certificates |
RoHS |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Weight & dimensions |
|---|
| Width |
3.31" (84.2 mm) |
| Depth |
3.28" (83.4 mm) |
| Height |
1.2" (30.4 mm) |
| Weight |
12.3 oz (350 g) |
| Packaging content |
|---|
| Manual |
Yes |
