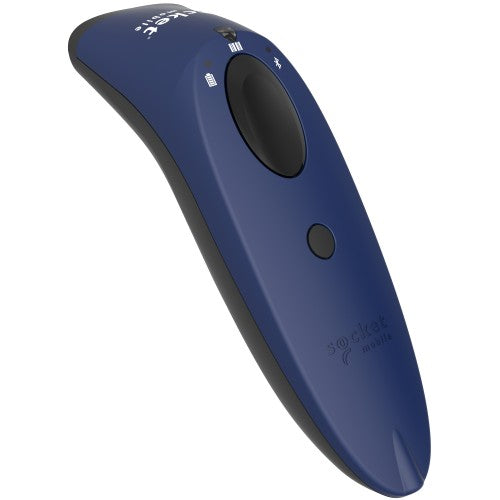

SocketScan S730, 1D Laser Barcode, Bluetooth 2.1+EDR
Description

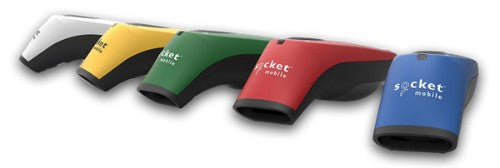

The SocketScan S730 laser 1D barcode scanner with Bluetooth wireless technology is ergonomic and comfortable to use for extended periods of time. The long-lasting battery withstands your entire work day while the scanner’s laser scans hard-to-reach places, meeting various jobs’ demands. It offers rapid scanning ability for moderate to rigorous scanning applications. It enables easy scanning of barcodes on high shelves or other unreachable areas. The five color options fit most styles and environment needs, with intuitive light icons to keep users informed on its connection and power status.
This scanner is dressed to impress both consumers and end users in most any environment. Ideal for scanning through glass/plastic, in bright sunlight, on curved reflective surfaces or other sensitive lighting conditions. Compatible with all applications in previous Socket Mobile barcode scanners, without any software changes.
Specifications
| Scanning |
|---|
| Type |
Handheld bar code reader |
| 2D (matrix & stacked) barcodes supported |
Not supported |
| Linear (1D) barcodes supported |
Codabar, Code 11, Code 128, Code 32, Code 39, Code 93, EAN-13, EAN-8, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, GS1-128 (UCC/EAN-128), Interleaved 2 of 5, MSI, Plessey, Telepen, Trioptic, U.P.C. |
| Wavelength |
650 nm |
| Sensor type |
Laser |
| Scanner type |
1D |
| Light levels (direct sunlight) |
4800 - 86000 lx |
| Ports & interfaces |
|---|
| Connectivity technology |
Wireless |
| Wireless range |
393.7" (10 m) |
| Bluetooth version |
2.1+EDR |
| Standard interfaces |
Bluetooth |
| Performance |
|---|
| LED indicators |
Yes |
| Product colour |
Blue |
| Light levels (direct sunlight) |
4800 - 86000 lx |
| Design |
|---|
| Type |
Handheld bar code reader |
| LED indicators |
Yes |
| Product colour |
Blue |
| Power |
|---|
| Power source type |
Battery |
| Number of batteries supported |
2 |
| Charging time |
6 h |
| Number of reads per charge |
100000 |
| Battery type |
AA |
| Battery technology |
Nickel-Metal Hydride (NiMH) |
| Weight & dimensions |
|---|
| Width |
1.46" (37.1 mm) |
| Depth |
1.58" (40.1 mm) |
| Height |
5.2" (132.2 mm) |
| Weight |
3.99 oz (113 g) |
| Technical details |
|---|
| Type |
Handheld bar code reader |
| LED indicators |
Yes |
| Product colour |
Blue |
| Harmonized System (HS) code |
84716070 |
| Compliance certificates |
RoHS |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
-20 - 50 °C |
| Light levels (direct sunlight) |
4800 - 86000 lx |
| Logistics data |
|---|
| Harmonized System (HS) code |
84716070 |
