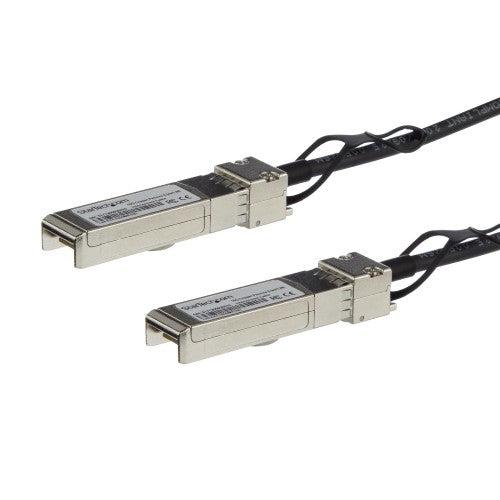

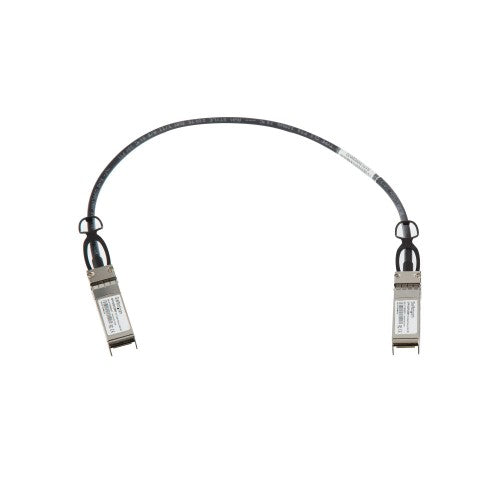

StarTech.com MSA Uncoded Compatible 0.5m 10G SFP+ to SFP+ Direct Attach Breakout Cable Twinax - 10 GbE SFP+ Copper DAC 10 Gbps Low Power Passive Transceiver Module DAC (SFP10GPC05M)
Key Features
- MSA UNCODED SFP+ CABLE (DAC): 10G direct attach cable works with MSA compliant switches the accept uncoded transceivers and modules
- TECHNICAL SPECS: 0.5m (1.6ft) / 10 Gbps / Passive Twinax (Copper) / 2x SFP+ Pluggable Connector / 100 Ohm Impedance / 30 AWG Wire Gauge / PVC Cable Jacket / Hot swappable / MSA Compliant
- DESIGNED FOR SERVER ROOMS: Mini GBIC DAC is a cost-effective copper alternative to fiber cable inside & between racks. Factory termination means high performance & reliability with less maintenance.
- OUTSTANDING SUPPORT: Backed by StarTech.com for the life of the cable itself, not your equipment; our cables won't void your OEM support and with access to our Tech Advisors 5/24
- WORKS WITH MSA COMPLIANT SWITCHES: Low power 10 GbE DAC also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules and transceivers
Description
Copper SFP+ Cable | 10 Gbps | Passive DAC | Lifetime Warranty
The SFP10GPC05M is an MSA compliant direct-attach copper SFP+ cable that’s designed, programmed and tested to work in 10G network deployments. It delivers dependable 10 GbE connectivity over copper cabling, which is a cost-effective alternative to fiber-optic cable setups.
This passive Twinax cable supports 10 Gigabit Ethernet applications connected through SFP+ (Mini-GBIC) ports. The cable is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
At 0.5 meters long and designed for high-speed performance, this copper SFP+ cable is ideal for medium-distance applications such as across-rack network switch or server connections.
StarTech.com SFP Cables
All StarTech.com SFP & SFP+ cables are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of direct-attach SFP Cables and SFP modules, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
Specifications
| Features |
|---|
| Jacket material |
Polyvinyl chloride (PVC) |
| Connector 1 |
SFP+ |
| Connector 2 |
SFP+ |
| Cable length |
19.7" (0.5 m) |
| Product colour |
Black |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Plug and Play |
Yes |
| Data transfer rate |
10000 Mbit/s |
| InfiniBand protocol |
Yes |
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-40 - 80 °C |
| Certification |
CE, FCC |
| Harmonized System (HS) code |
84733080 |
| Certificates |
|---|
| Certification |
CE, FCC |
| Compliance certificates |
RoHS |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-40 - 80 °C |
| Weight & dimensions |
|---|
| Weight |
1.98 oz (56 g) |
| Cable length |
19.7" (0.5 m) |
| Package width |
7.87" (200 mm) |
| Package depth |
8.66" (220 mm) |
| Package height |
0.157" (4 mm) |
| Package weight |
2.33 oz (66 g) |
| Packaging data |
|---|
| Package width |
7.87" (200 mm) |
| Package depth |
8.66" (220 mm) |
| Package height |
0.157" (4 mm) |
| Package weight |
2.33 oz (66 g) |
| Quantity per pack |
1 pc(s) |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Technical details |
|---|
| Jacket material |
Polyvinyl chloride (PVC) |
| Connector 1 |
SFP+ |
| Connector 2 |
SFP+ |
| Cable length |
19.7" (0.5 m) |
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Quantity per pack |
1 pc(s) |
| Master (outer) case width |
10" (255 mm) |
| Master (outer) case length |
13.5" (344 mm) |
| Master (outer) case height |
11.6" (295 mm) |
| Products per master (outer) case |
10 pc(s) |
| Harmonized System (HS) code |
84733080 |
