StarTech.com MSA Uncoded Compatible 3m 40G QSFP+ to 4x SFP+ Direct Attach Breakout Cable Twinax - 40GbE QSFP+ to 4x SFP+ Copper DAC 40 Gbps Low Power Passive Transceiver Module DAC (QSFP4SFPPC3M)
Key Features
- MSA UNCODED QSFP+ CABLE (DAC): 40Gb direct attach cable works with MSA compliant switches the accept uncoded transceivers and modules
- TECHNICAL SPECS: 3m (9.8ft) / 40 Gbps / Passive Twinax (Copper) / 1x QSFP+ to 4x SFP+ Pluggable Connector / 100 Ohm Impedance / 30 AWG Wire Gauge / PVC Cable Jacket / Hot swappable / MSA Compliant
- DESIGNED FOR SERVER ROOMS: This DAC is a cost-effective copper alternative to fiber cable inside & between racks; factory termination means high performance & reliability with less maintenance.
- OUTSTANDING SUPPORT: Backed by StarTech.com for the life of the cable itself, not your equipment; our cables won't void your OEM support and with access to our Tech Advisors 5/24.
- WORKS WITH MSA COMPLIANT SWITCHES: Low power 40GbE DAC also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules and transceivers
Description
Copper QSFP+ Cable | 40 Gbps | Passive Breakout DAC | Lifetime Warranty

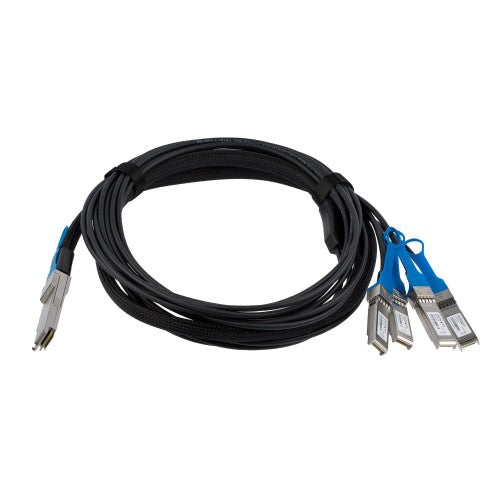

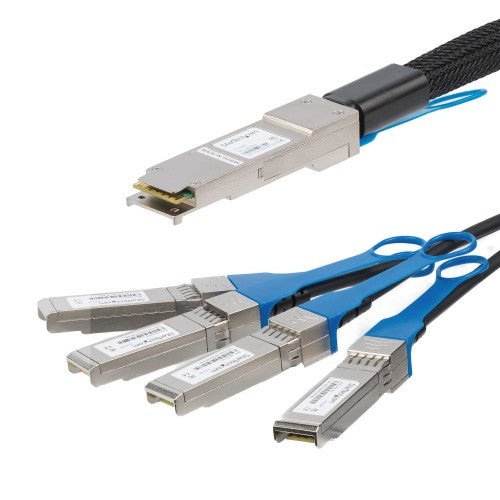

The QSFP4SFPPC3M is an MSA Compliant QSFP+ direct-attach Twinax breakout cable. It is designed, programmed and tested to bridge 40G network equipment with 10G compatible servers or routers. This passive Twin axial cable connects a single QSFP+ port to four 10G SFP+ ports and is fully hot-pluggable making upgrades and replacements seamless by minimizing network disruptions.
At 3 meters long and designed for short-length, high-speed interconnects, this low-power, low-latency copper QSFP+ cable also uses a cost-effective cabling alternative to fiber-optic assemblies. It supports short-distance applications such as point-to-point in-rack and across-rack network switch or server connections, for up to four 10G SFP+ devices.
StarTech.com SFP Cables
All StarTech.com QSFP & QSFP+ cables are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of direct-attach SFP Cables and SFP modules, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
Specifications
| Features |
|---|
| Jacket material |
Polyvinyl chloride (PVC) |
| Connector 1 |
QSFP+ |
| Connector 2 |
4x SFP+ |
| Cable length |
39.4" (1 m) |
| Product colour |
Black |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Plug and Play |
Yes |
| Data transfer rate |
40000 Mbit/s |
| InfiniBand protocol |
Yes |
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-40 - 80 °C |
| Certification |
CE, FCC, REACH |
| Harmonized System (HS) code |
84733080 |
| Certificates |
|---|
| Certification |
CE, FCC, REACH |
| Compliance certificates |
RoHS |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-40 - 80 °C |
| Weight & dimensions |
|---|
| Weight |
16.1 oz (456 g) |
| Cable length |
39.4" (1 m) |
| Package width |
9.65" (245 mm) |
| Package depth |
12.8" (325 mm) |
| Package height |
1.18" (30 mm) |
| Package weight |
16.7 oz (474 g) |
| Packaging data |
|---|
| Package width |
9.65" (245 mm) |
| Package depth |
12.8" (325 mm) |
| Package height |
1.18" (30 mm) |
| Package weight |
16.7 oz (474 g) |
| Quantity per pack |
1 pc(s) |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Technical details |
|---|
| Jacket material |
Polyvinyl chloride (PVC) |
| Connector 1 |
QSFP+ |
| Connector 2 |
4x SFP+ |
| Cable length |
39.4" (1 m) |
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Quantity per pack |
1 pc(s) |
| Master (outer) case width |
10" (255 mm) |
| Master (outer) case length |
13.5" (344 mm) |
| Master (outer) case height |
11.6" (295 mm) |
| Products per master (outer) case |
10 pc(s) |
| Harmonized System (HS) code |
84733080 |
