Directional, 50 Ohms, 50 Watts, 70 / 60 Deg, 50 / 45 Deg, N-Female, 700-800 MHz: 5.2 dB, 824-894 MHz: 4.4 dB, 880-960 MHz: 4.2 dB, 1710-1880 MHz: 10.1 dB, 1850-1990 MHz: 10.6 dB, 2110-2170 MHz: 8.2 dB
Key Features
- Indoor directional 3G & 4G antennas
- Works with all 50 Ohm signal boosters
- Easy installation, N-connectors
- Most popular in-building antenna
- Up to +10.6 dB gain
Description

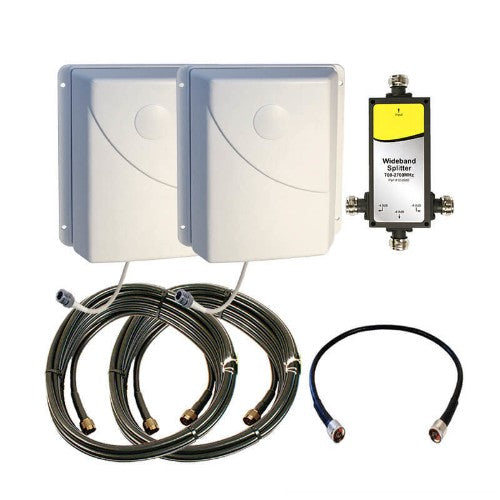

No more annoying dropped calls, poor call quality & slow Internet!The Wilson Dual Inside Panel Antenna Kit, Wall Mount from Wilson Electronics is the indoor antenna expansion kit featuring 1 Wilson inside panel antennas (#311135), 3-way splitter, and necessary cables for two additional indoor antenna installation.
The Wilson Dual Inside Panel Antenna Kit is a set of two 50 Ohm indoor, wall-mount antennas used to broadcast & expand boosted 3G & 4G LTE coverage from a Wilson weBoost signal booster. It’s powerful wide-band coverage features up to +10.6 dB gain. Best for priority area coverage and corridors.
Designed for fixed building installations inside a home, office, or commercial space.
Specifications
| Performance |
|---|
| Bandwidth note |
1850-1990 MHz |
| Antenna gain level (max) |
10.6 dBi |
| Impedance |
50 Ω |
| Features |
|---|
| Connector gender |
Female |
| Antenna gain level (max) |
10.6 dBi |
| Antenna type |
Directional antenna |
| Impedance |
50 Ω |
| Antenna connector type |
N-type |
| Power |
|---|
| Power consumption (max) |
50 W |
| Technical details |
|---|
| Antenna gain level (max) |
10.6 dBi |
| Antenna type |
Directional antenna |
| Impedance |
50 Ω |
| Antenna connector type |
N-type |
| Weight & dimensions |
|---|
| Weight |
21.2 oz (600 g) |
| Width |
7.09" (180 mm) |
| Depth |
1.57" (40 mm) |
| Height |
8.27" (210 mm) |
