Tripp Lite U444-06N-H4GUBC laptop dock/port replicator USB 3.2 Gen 2 (3.1 Gen 2) Type-C Black

USB-C Multiport Adapter - 4K HDMI, USB 3.x (5Gbps) Hub Port, GbE, 60W PD Charging, HDCP, Black

Key Features

• Transmits video signals from sources supporting USB-C DisplayPort Alt Mode
• Delivers UHD picture quality at resolutions up to 3840 x 2160 (4K x 2K) @ 30 Hz
• Connects you to a wired Gigabit Ethernet network when Wi-Fi is weak or unavailable
• Power Delivery port provides 20V 3A (60W) power output for charging connected device
• USB-A port provides up to 5V 1.5A (7.5W) of charging power and transers data at 5 Gbps

Description

USB-C Multiport Adapter Turns Your Device’s USB-C or Thunderbolt 3 Port into a Multifunction Workstation
This USB 3.2 adapter expands the potential of your tablet, laptop, Chromebook, MacBook, smartphone or PC’s USB-C or Thunderbolt 3 port. It’s ideal for transmitting digital audio and 4K video to a large display, adding a thumb drive or other USB peripheral, powering and quickly charging a PD Charging-compliant mobile device, and connecting to a Gigabit Ethernet network—all at the same time.
Supports USB DisplayPort Alternate Mode for Transmitting Audio/Video Content
With a source device that also supports USB DisplayPort Alt Mode, you can extend the desktop of your computer to a second display, duplicate the same video on both displays, or change the second display to your primary.
Transmits Crystal-Clear 4K Video and Digital Audio to an HDMI Display
To send 7.1-channel surround sound and Ultra High Definition video to a 4K-ready HDMI television, projector or monitor, connect the HDMI port to the display using a 4K-compatible HDMI cable (sold separately, such as the P568-Series). The HDMI port supports UHD video resolutions up to 4K x 2K (3840 x 2160) at 30 Hz.
Connects a USB Peripheral
The USB-A port accepts USB peripherals, such as a flash drive, mouse, keyboard or printer. It supports fast USB 3.2 Gen 1 data transfer rates up to 5 Gbps and is backward compatible with USB 2.0 and USB 1.1 devices. The port provides up to 5V 1.5A (7.5W) of fast-charging power to mobile devices. Note
: Host must support USB OTG (On-the-Go).
Charges a Connected Device
The USB-C Power Delivery (PD) port provides power and charging to the PD Charging-compliant host device (such as a MacBook, Chromebook or Android smartphone) the U444-06N-H4GUB-C is connected to. Connect the device’s AC wall charger to the USB-C PD port, which supports power input up to 20V 3A (60W). Note
: USB-C PD port does not support Quick Charge (QC).
Accesses a Wired Gigabit Ethernet Network
The RJ45 port offers access to a Gigabit Ethernet network when no Wi-Fi is available or when a wired connection offers faster speeds. Connect using a UTP cable (sold separately, such as the N201-Series), and enjoy true 10/100/1000 Mbps Ethernet speeds for fast data transfers.

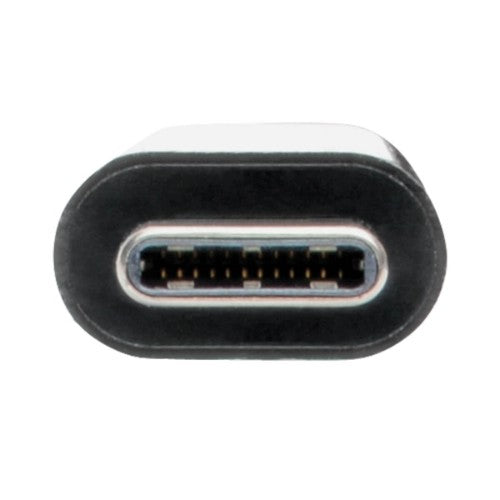

Built-In USB-C Cable Connects in Either Direction
Connect the reversible USB-C plug to your source device’s USB-C or Thunderbolt 3 port. The fumble-free USB-C plug connects in either direction to ensure fast, easy connection every time.
Ready to Use Right Out of the Package
The plug-and-play USB to multiport adapter works with all operating systems. It requires no software, drivers or external power. The compact unit fits easily into a pocket, briefcase or laptop bag for connecting on the go.

Specifications

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
Network
Full duplex	Yes
Auto MDI/MDI-X	Yes
Networking standards	IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Ethernet LAN (RJ-45) ports	1
Performance
Full duplex	Yes
Auto MDI/MDI-X	Yes
Country of origin	Vietnam
Product colour	Black
Plug and Play	Yes
Certification	CE, FCC, RoHS, REACH
Housing material	Polyvinyl chloride (PVC)
Hub interfaces	HDMI, RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C
Technical details
Product colour	Black
Plug and Play	Yes
Master (outer) case GTIN (EAN/UPC)	10037332209143
Harmonized System (HS) code	84719000
Products per master (outer) case	10 pc(s)
Master (outer) case width	11.6" (294.9 mm)
Master (outer) case gross weight	24 oz (680 g)
Master (outer) case length	5.31" (134.9 mm)
Master (outer) case height	4.72" (119.9 mm)
Power
Power source type	USB
Power consumption (typical)	2.8 W
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	10 - 85%
Storage relative humidity (H-H)	5 - 90%
Weight & dimensions
Weight	1.6 oz (45.4 g)
Width	1.57" (39.9 mm)
Depth	3.15" (80 mm)
Height	0.57" (14.5 mm)
Package weight	3.17 oz (90 g)
Package width	5.51" (140 mm)
Package depth	3.94" (100.1 mm)
Package height	0.909" (23.1 mm)
Design
Country of origin	Vietnam
Product colour	Black
Certification	CE, FCC, RoHS, REACH
Packaging data
Package weight	3.17 oz (90 g)
Package width	5.51" (140 mm)
Package depth	3.94" (100.1 mm)
Package height	0.909" (23.1 mm)
Certificates
Certification	CE, FCC, RoHS, REACH
Logistics data
Products per master (outer) case	10 pc(s)
Master (outer) case width	11.6" (294.9 mm)
Master (outer) case gross weight	24 oz (680 g)
Master (outer) case length	5.31" (134.9 mm)
Master (outer) case height	4.72" (119.9 mm)
Harmonized System (HS) code	84719000
