Tripp Lite U436-06N-GB-C interface cards/adapter

USB-C to Gigabit Network Adapter with 60W USB-C PD Charging - Thunderbolt 3, Black

Key Features

• Connects you to a wired Ethernet network when no Wi-Fi is available
• Supports USB 3.2 Gen 1 for fast data uploads and downloads up to 5 Gbps
• Widely compatible with Windows, Mac and Chromium computers
• Provides up to 60W to PD Charging-compliant devices, such as MacBooks and Chromebooks
• Easy installation with plug-and-play operation-no software required

Description

USB to Ethernet Converter Connects to Your Device’s USB-C or Thunderbolt 3 Port
This USB to LAN converter expands the potential of your tablet, laptop, Chromebook, MacBook, smartphone or PC’s USB-C or Thunderbolt 3 port. It’s ideal for connecting to a wired Gigabit Ethernet network or powering and charging a PD Charging-compliant mobile device.

Accesses a Wired Gigabit Ethernet Network

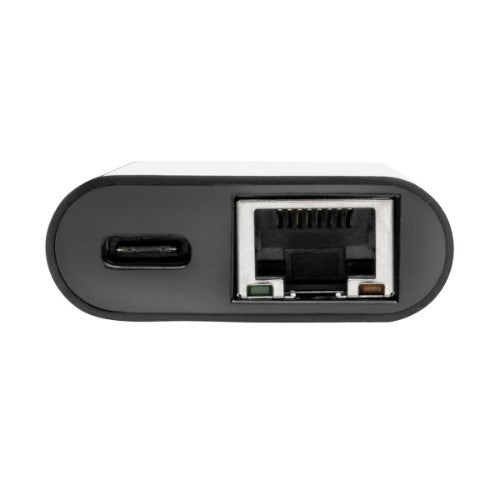

The RJ45 port offers access to a Gigabit Ethernet network when no Wi-Fi is available or when a wired connection offers faster speeds. Connect using a UTP cable (sold separately), and enjoy true 10/100/1000 Mbps Ethernet speeds for fast data transfers.

Charges a Connected Device with up to 60W
The USB-C Power Delivery (PD) port provides power and charging to the PD Charging-compliant device (such as a MacBook, Chromebook or Android smartphone) the USB-C network adapter is connected to. Connect the device’s AC wall charger to the USB-C PD port, which supports power input up to 60W.

Built-In USB-C Cable Connects in Either Direction

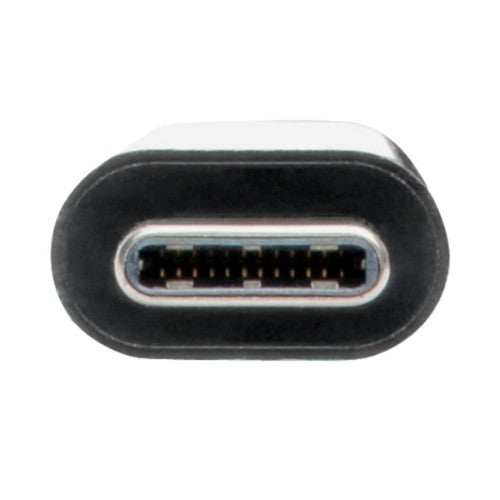

Connect the reversible USB-C plug to your source device’s USB-C or Thunderbolt 3 port. The fumble-free USB-C plug connects in either direction to ensure fast, easy connection every time.

Ready to Use Right Out of the Package
The plug-and-play USB to LAN converter requires no software, drivers or external power. The compact unit fits easily into a pocket, briefcase or laptop bag for connecting on the go. Plug it into your laptop for instant network connection.

3-Year Warranty and Environmentally Responsible Design
The U436-06N-GB-C comes with a 3-year warranty. It’s manufactured in compliance with strict RoHS specifications, reflecting commitment to environmental responsibility.
Note: To prolong the use of the product, it is recommended to disconnect the unit from the source and power source when not in use

Specifications

Technical details
Cable length	39.4" (1 m)
Networking standards	IEEE 802.11az, IEEE 802.1ab, IEEE 802.3, IEEE 802.3u
Master (outer) case GTIN (EAN/UPC)	10037332209228
Compliance certificates	RoHS
Network
Data transfer rate	1, 5
Performance
Product colour	Black
Harmonized System (HS) code	8517.62.0090
Certificates
Certification	CE, FCC, REACH
Colour
Product colour	Black
Design
Country of origin	Vietnam
Product colour	Black
Certification	CE, FCC, REACH
Features
Harmonized System (HS) code	8517.62.0090
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-10 - 70 °C
Weight & dimensions
Weight	1.76 oz (50 g)
Package width	3.9" (99.1 mm)
Package depth	4.8" (121.9 mm)
Package height	0.799" (20.3 mm)
Package weight	2.12 oz (60 g)
Packaging data
Package width	3.9" (99.1 mm)
Package depth	4.8" (121.9 mm)
Package height	0.799" (20.3 mm)
Package weight	2.12 oz (60 g)
Logistics data
Master (outer) case gross weight	20.8 oz (590 g)
Products per master (outer) case	10 pc(s)
Master (outer) case width	4.4" (111.8 mm)
Master (outer) case length	10" (254 mm)
Master (outer) case height	4.8" (121.9 mm)
Harmonized System (HS) code	8517.62.0090
Other features
Data transfer rate	1, 5
Cable length	39.4" (1 m)
Networking standards	IEEE 802.11az, IEEE 802.1ab, IEEE 802.3, IEEE 802.3u
