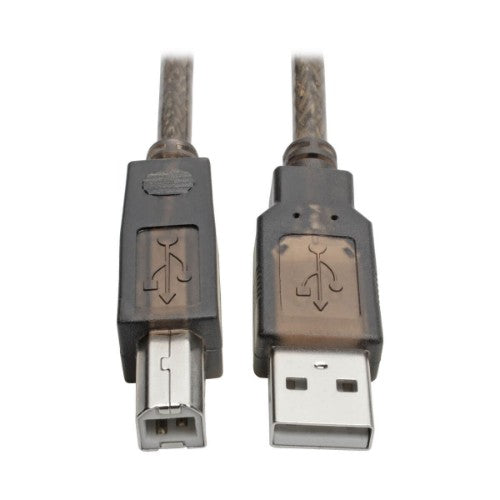

USB 2.0 A to B Active Repeater Cable (M/M), 30 ft. (9.14 m)
Key Features
- Allows a USB-B device to be located up to 30-ft. (9.14 m) from computer
- Supports USB 2.0 data transfer rates up to 480 Mbps
- Premium foil and braid shielding protects against EMI/RFI line noise
- Delivers up to 150mA of power to connected USB-B device
- Backward compatible with previous USB generations
Description
The U042-030 USB 2.0 Hi-Speed A/B Active Repeater Cable (M/M) allows you to connect a USB-B device to a computer up to 30 feet (9.1 meters) away with no danger of signal loss or decrease in performance. Connect the USB-A plug to a USB port on your computer or hub and the USB-B plug to a USB-B peripheral, such as a printer or scanner. A built-in bus-powered repeater ensures peak USB 2.0 signal quality. Backward compatible with previous USB generations, this 30-foot USB cable supports data transfer rates up to 480 Mbps.
The U042-030 works with all computers, devices and cables with USB-A or USB-B connectors, and provides up to 150mA of power to the connected USB-B device. An external power supply or powered USB 2.0 hub is required for power applications stronger than 150mA. You can hot-swap connected devices - for instance, unhook your printer and connect a scanner - without having to power down the computer.
Premium foil and braid shielding delivers reliable, error-free signal quality and protection from EMI/RFI line noise that can distort or destroy data. Molded connectors with corrosion-resistant gold-plated contacts provide maximum conductivity and minimize data loss. Integral strain relief gives the cable extra flexibility, reduces stress, and helps the cable and connectors move freely without cracking.
Specifications
| Features |
|---|
| Connector gender |
Male/Male |
| Country of origin |
China |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Plug and Play |
Yes |
| USB version |
USB 2.0 |
| Connector 1 |
USB A |
| Connector 2 |
USB B |
| Cable length |
359.8" (9.14 m) |
| Connector contacts plating |
Nickel/Gold |
| Magnetically shielded |
Yes |
| Maximum data transfer rate |
480 Mbit/s |
| Product colour |
Black, Translucent |
| Certification |
CE, FCC |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Maximum data transfer rate |
0.48 Gbit/s |
| Weight & dimensions |
|---|
| Cable length |
359.8" (9.14 m) |
| Package width |
9.05" (229.9 mm) |
| Package depth |
10.5" (266.7 mm) |
| Package height |
0.5" (12.7 mm) |
| Package weight |
11.3 oz (320 g) |
| Package type |
Polybag |
| Packaging data |
|---|
| Package width |
9.05" (229.9 mm) |
| Package depth |
10.5" (266.7 mm) |
| Package height |
0.5" (12.7 mm) |
| Package weight |
11.3 oz (320 g) |
| Package type |
Polybag |
| Ports & interfaces |
|---|
| USB version |
USB 2.0 |
| Connector 1 |
USB A |
| Connector 2 |
USB B |
| Connector contacts plating |
Nickel/Gold |
| Data transmission |
|---|
| Maximum data transfer rate |
480 Mbit/s |
| Technical details |
|---|
| Magnetically shielded |
Yes |
| Product colour |
Black, Translucent |
| Country of origin |
China |
| Compliance certificates |
RoHS |
| Certificates |
|---|
| Certification |
CE, FCC |
| Compliance certificates |
RoHS |
| Other features |
|---|
| Package type |
Polybag |
| Product colour |
Black, Translucent |
| Master (outer) case GTIN (EAN/UPC) |
10037332206944 |
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Country of origin |
China |
| Master (outer) case gross weight |
3.59 lbs (1.63 kg) |
| Products per master (outer) case |
5 pc(s) |
| Master (outer) case width |
13.7" (348 mm) |
| Master (outer) case length |
15.7" (398.8 mm) |
| Master (outer) case height |
1" (25.4 mm) |
| Master (outer) case GTIN (EAN/UPC) |
10037332206944 |
