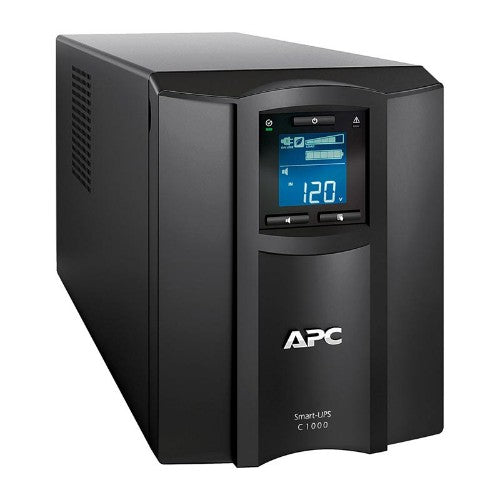

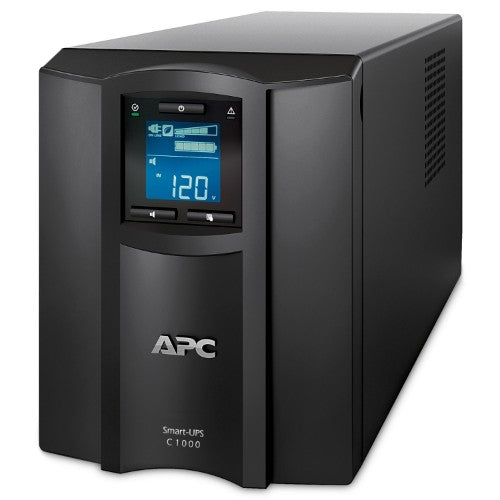

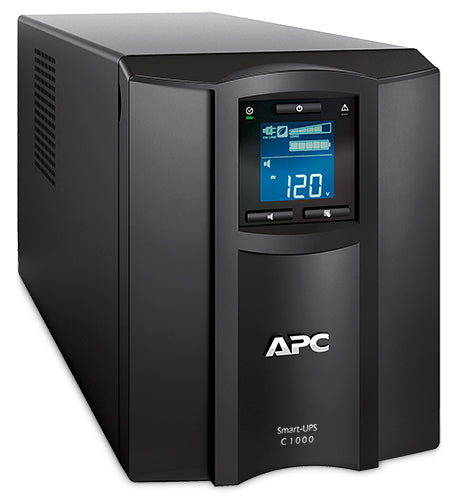

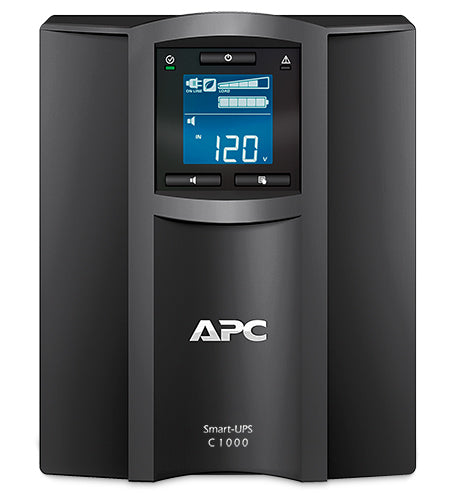

600 W, 120V, 50/60Hz, 8x NEMA 5-15R, RJ-45, USB, LCD, 219x171x439 mm
Key Features
- Cold-start capable
- Green mode
- High online efficiency
- LCD Status Display
- Pure sine wave output on battery
- Temperature-compensated battery charging
Description
Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Specifications
| Power |
|---|
| Output frequency |
50/60 Hz |
| Output power |
600 W |
| Input operation voltage (min) |
85 V |
| Input operation voltage (max) |
136 V |
| Output operation voltage (min) |
110 V |
| Output operation voltage (max) |
127 V |
| Surge energy rating |
680 J |
| Output voltage Total Harmonic Distortion (THD) |
5% |
| Output power capacity |
1 kVA |
| Input frequency |
50/60 Hz |
| Ports & interfaces |
|---|
| Cable length |
72" (1.83 m) |
| USB port |
Yes |
| Serial interface |
Yes |
| Serial interface type |
RJ-45 |
| AC outlets quantity |
8 AC outlet(s) |
| AC outlet types |
NEMA 5–15R |
| Power plug |
NEMA 5-15P |
| Performance |
|---|
| Hold time (min) |
6 ms |
| Hold time (max) |
10 ms |
| Audible alarm modes |
Alarm when on battery, Low battery alarm |
| UPS topology |
Line-Interactive |
| Waveform |
Sine |
| Auto-restart |
Yes |
| Surge protection |
Yes |
| Noise level |
41 dB |
| Features |
|---|
| Output frequency |
50/60 Hz |
| Hold time (min) |
6 ms |
| Hold time (max) |
10 ms |
| Audible alarm modes |
Alarm when on battery, Low battery alarm |
| UPS topology |
Line-Interactive |
| Waveform |
Sine |
| Auto-restart |
Yes |
| Output power |
600 W |
| Input operation voltage (min) |
85 V |
| Input operation voltage (max) |
136 V |
| Output operation voltage (min) |
110 V |
| Output operation voltage (max) |
127 V |
| Surge energy rating |
680 J |
| Surge protection |
Yes |
| Output voltage Total Harmonic Distortion (THD) |
5% |
| Noise level |
41 dB |
| Output power capacity |
1 kVA |
| Input frequency |
50/60 Hz |
| Battery |
|---|
| Battery life (max) |
5 year(s) |
| Battery technology |
Lead-Acid |
| Battery recharge time |
3 h |
| Hot-swap battery |
Yes |
| Cold start |
Yes |
| Replacement battery cartridge |
APCRBC142 |
| Design |
|---|
| Form factor |
Tower |
| Product colour |
Black |
| Certification |
CSA, CSA C22.2 No. 107.1, ENERGY STAR V1.0 (USA), FCC 15 B, ICES-003, UL 1778 |
| Cable length |
72" (1.83 m) |
| Display type |
LCD |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-15 - 45 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 118110.2" (0 - 3000 m) |
| Non-operating altitude |
0 - 590551.2" (0 - 15000 m) |
| Technical details |
|---|
| Output voltage |
120 V |
| Output frequency |
50/60 Hz |
| Sustainability certificates |
ENERGY STAR |
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Package width |
13" (330 mm) |
| Package depth |
23.2" (590 mm) |
| Package height |
13" (330 mm) |
| Weight |
37.5 lbs (17 kg) |
| Width |
6.73" (171 mm) |
| Package weight |
43.2 lbs (19.6 kg) |
| Height |
8.62" (219 mm) |
| Depth |
17.3" (439 mm) |
| Packaging data |
|---|
| Resource CD |
Yes |
| Cables included |
USB cable |
| Software CD |
Yes |
| Package width |
13" (330 mm) |
| Package depth |
23.2" (590 mm) |
| Package height |
13" (330 mm) |
| Package weight |
43.2 lbs (19.6 kg) |
| Logistics data |
|---|
| Products per pallet |
12 pc(s) |
| Certificates |
|---|
| Certification |
CSA, CSA C22.2 No. 107.1, ENERGY STAR V1.0 (USA), FCC 15 B, ICES-003, UL 1778 |
| Other features |
|---|
| Output voltage |
120 V |
| Packaging content |
|---|
| Resource CD |
Yes |
| Cables included |
USB cable |
| Software CD |
Yes |
