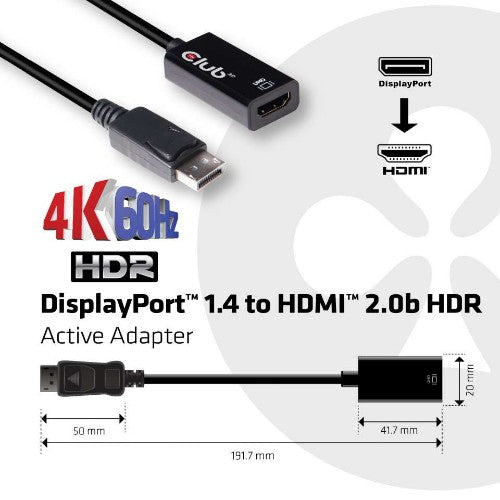

DisplayPort 1.4 to HDMI 2.0b HDR Active Adapter
Key Features
- Converts your DP 1.4 output into HDMI 2.0b
- Supports Resolutions up to 4096 x 2160p at 60Hz
- Supports HDR
Description
CAC-1080 - The Club3D DisplayPort™ 1.4 to HDMI™ 2.0b signal converter. It features support for HDR Video quality for deep color media content playback. The DisplayPort™ receiver supports up to 5,4 Gbps per lane over 4 lanes. The HDMI™ output is fully compliant to HDMI™ specification version 2.0b.
Resolution Support

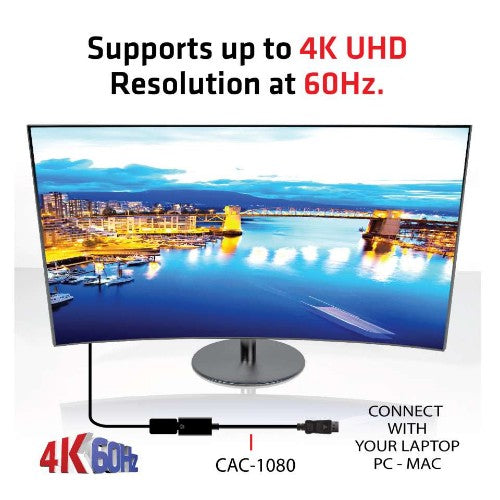

The CAC-1080 supports UHD resolutions up to 4096 x 2160p at 60Hz.
Color Formats
It supports RGB/YCbCr video color formats with a color depth of 16bpc (or 48 bits per pixel) as long as it fits within the DisplayPort™ and HDMI™ link bandwidth. The CAC-1080 also supports pixel encoding conversion from RGB or YCbCr 4:4:4 to YCbCr 4:2:0 and YCbCr 4:2:0 pass-trough function. In addition HDR with deep color up to 12Bpc at 4K 60Hz is supported through the conversion of RGB/YCbCr 4:4:4 over DP link to YCbCr 4:2:0 on the HDMI™ output with a horizontal expansion to CEA timings.
Note: For HDR to function, the source system needs to support DisplayPort™ 1.4 and the screen needs to have support for HDR and/or HDMI™ 2.0 a or b.
Specifications
| Ports & interfaces |
|---|
| DisplayPort version |
1.4 |
| Connector contacts plating |
Copper |
| Connector 2 |
HDMI 2.0b |
| Connector 1 |
DisplayPort 1.4 |
| Performance |
|---|
| Converter type |
Active video converter |
| Maximum refresh rate |
60 Hz |
| Maximum resolution (HDMI) |
4096 x 2160 pixels |
| USB required |
No |
| Plug and Play |
Yes |
| Maximum resolution |
4096 x 2160 pixels |
| Compatible operating systems |
Windows 10, 8.1
Mac OS Sierra, High Sierra |
| Product colour |
Black |
| Data transfer rate |
18 Gbit/s |
| Country of origin |
China |
| DisplayPort version |
1.4 |
| Certification |
ROHS, FCC, CE EMI, WEEE |
| Certificates |
|---|
| Certification |
ROHS, FCC, CE EMI, WEEE |
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Width |
0.787" (20 mm) |
| Weight |
1.13 oz (32 g) |
| Depth |
11, 184 |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Packaging data |
|---|
| Package width |
2.36" (60 mm) |
| Package type |
Box |
| Package height |
7.17" (182 mm) |
| Package depth |
1.38" (35 mm) |
| Package weight |
0.529 oz (15 g) |
| Plastic packaging weight |
0.0705 oz (2 g) |
| Paper/cardboard packaging weight |
0.705 oz (20 g) |
| Technical details |
|---|
| USB required |
No |
| Plug and Play |
Yes |
| Package type |
Box |
| Maximum resolution |
4096 x 2160 pixels |
| Product colour |
Black |
| Country of origin |
China |
| Cable colour |
Black |
| Compliance certificates |
RoHS |
| Design |
|---|
| Product colour |
Black |
| Certification |
ROHS, FCC, CE EMI, WEEE |
| System requirements |
|---|
| Compatible operating systems |
Windows 10, 8.1
Mac OS Sierra, High Sierra |
| Other features |
|---|
| Country of origin |
China |
| Cable colour |
Black |
| Logistics data |
|---|
| Country of origin |
China |
| Products per master (outer) case |
10 pc(s) |
| Harmonized System (HS) code |
8544 4290 |
