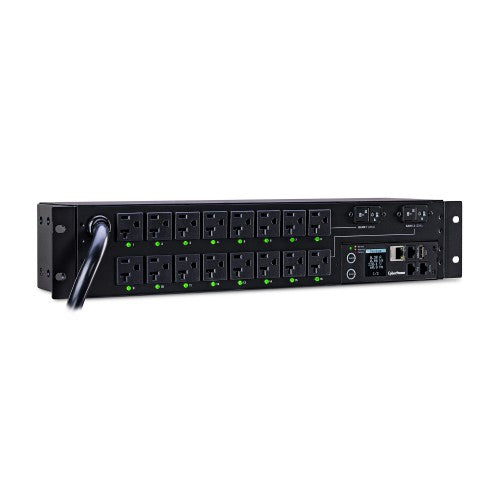

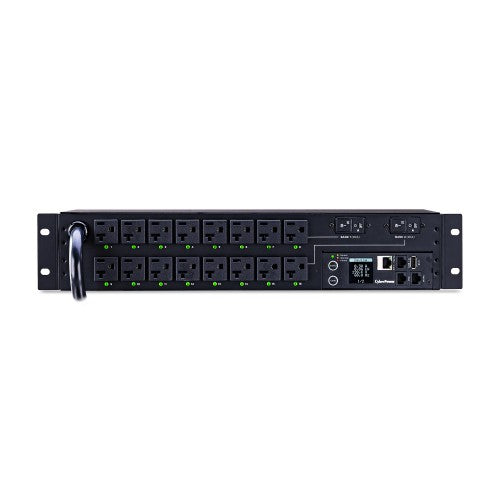

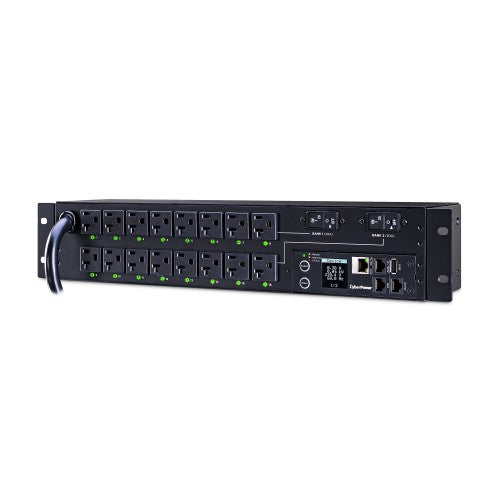

CyberPower PDU41003 power distribution unit (PDU) 16 AC outlet(s) 2U Black

30A (Derated to 24A), 100-120Vac, 50Hz/60Hz, NEMA L5-30P, 16 NEMA 5-20R, 2U Rackmount, E-mail, SMS, Text and SNMP Trap

Key Features

• Automated notifications: E-mail, SMS, Text and SNMP Trap
• Phase: Single
• Amps: 30A (Derated to 24A)
• Volts: 100-120Vac
• Frequency: 50Hz/60Hz
• Plug Type: NEMA L5-30P
• Outlets: 16 NEMA 5-20R
• Size: 2U Rackmount
• Cord Length (ft): 12

Description

The CyberPower PDU41003, a 2U rackmount, monitored power distribution unit (PDU) provides 100-120Vac, 30A output via sixteen (16) NEMA 5-20R receptacles from a single NEMA L5-30P input power plug. The switched outlet receptacles can be managed individually or collectively over the network, using the CyberPower Management Console, a web browser, and the RJ45 Ethernet port for network connection, or locally from the Power Control Display.

The PDU41003 comes with a three-year limited warranty that covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date.

Power Distribution
Delivers AC power to servers, equipment, and connected devices via a power distribution unit.

Switch-Free Design
Safeguards against accidental power shutdown.

Switchable Outlets
Provides local and remote control for individual and multiple outlets. Local control: turn on/turn off outlets and disable unused outlets. Remote control: restart outlets and devices, turn on/turn off, schedule power on/off sequencing, and disable unused outlets.

CyberPower Management Console
Built into Switched PDUs, a CyberPower Management Console is a hardware interface. Users can remotely switch individual PDU outlets or circuits on and off, either immediately or on a schedule, in order to power cycle connected equipment. It monitors the incoming power and power draw from the PDU, sends notifications based on the power status, and logs events.

Remote and Local Monitoring
The user is able to track PDU vitals both offsite and onsite. It also provides control to turn on/off individual outlets or circuits.

Automatic Event Notifications
Provide immediate updates about power events via email, SMS text, or SNMP traps.

Upgradeable Firmware
Downloadable improvements (firmware updates) to programs that run the PDU.

Power Control Display
Provides up-to-date status information about the PDU and power situation and allows for local set-up and configuration.

Network-Grade Plugs and Outlets
Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices.

Long Input Power Cord
Reaches distant power sources, allowing the PDU to be placed where it’s needed.

Cord Retention Tray
Secures power cords, keeping them organized and accessible. Helps cords stay plugged in.

Configurable Mounting Brackets
Allow for installation of the PDU in the following configurations: 0U (vertical, under counter, and wall mount), 1U (horizontal, vertical, under counter, and wall mount), and 2U (horizontal and wall mount).

Durable Metal Housing
Protects internal components and resists damage from impact or abrasions within challenging industrial environments. Also extends the life of the product.

Specifications

Design
On/off switch	Yes
Type	Single-phase
PDU types	Switched
Mounting	Horizontal/Vertical
Product colour	Black
Rack capacity	2U
Housing material	Steel
Ports & interfaces
AC outlets quantity	16 AC outlet(s)
AC outlet types	NEMA 5–20R
Power plug	NEMA L5-30P
Serial ports quantity	1
Ethernet LAN (RJ-45) ports	1
Features
Package type	Box
Cable length	145.7" (3.7 m)
LED indicators	Yes
Management features
Firmware upgradeable	Yes
Ergonomics
Cable length	145.7" (3.7 m)
LED indicators	Yes
Power
Nominal input voltage	100 - 120 V
Nominal output voltage	100 - 120 V
Maximum current	30 A
AC input frequency	50 - 60 Hz
Weight & dimensions
Weight	7.28 lbs (3.3 kg)
Width	17" (433 mm)
Depth	4.41" (112 mm)
Height	3.46" (88 mm)
Package width	19.7" (500 mm)
Package depth	9.84" (250 mm)
Package height	5.91" (150 mm)
Package weight	14.1 lbs (6.4 kg)
Packaging data
Package type	Box
Package width	19.7" (500 mm)
Package depth	9.84" (250 mm)
Package height	5.91" (150 mm)
Package weight	14.1 lbs (6.4 kg)
Packaging content
Cables included	AC
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Technical details
Compliance certificates	RoHS
