2.5", 6 Gbit/s, 127.8x129.4x9.5mm, 151g, Black
Description

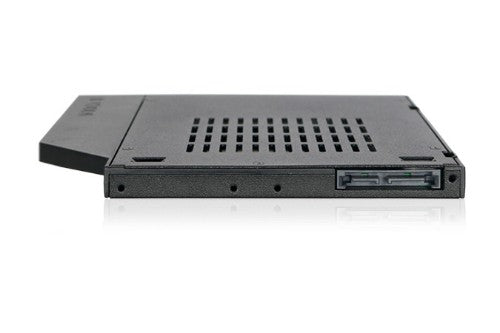

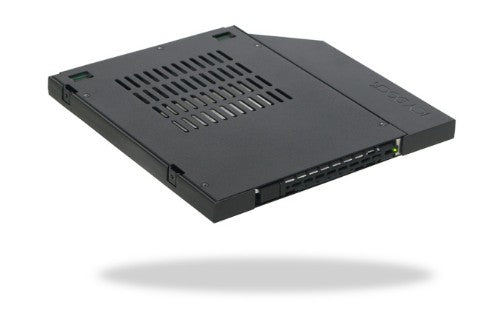

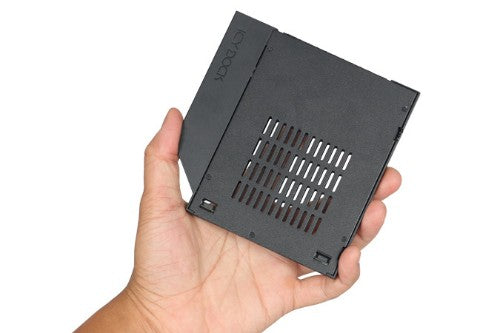

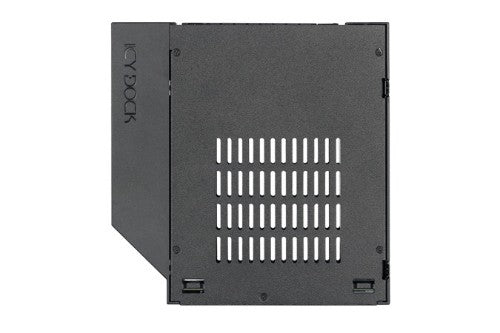

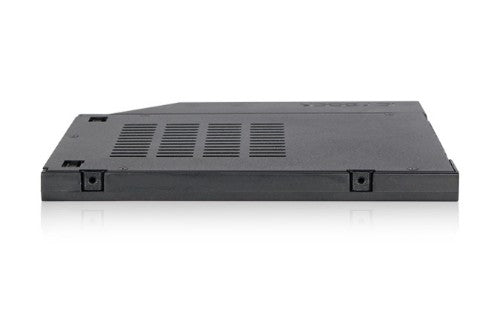

ToughArmor MB411SPO-2B (Fits 9.5mm height ODD Slot)Introducing the ToughArmor MB411SPO-2B, a full metal 2.5” SATA hard drive / SSD mobile rack designed to fit into a 9.5mm Ultra slimline optical disk drive bay (Ultra Slim ODD bay) that is available in newer generation laptops, desktop PCs, and workstations. The MB411SPO-2B uses a full metal construction to ensure maximum device lifespan and is capable of withstanding the harshest environments. The EZ Slide Slim carrier tray supports any capacity 2.5” (5 - 7mm) SATA hard drives and solid-state-drives (SSD) and provides hot-swap capability for quick drive removal and the easy drive maintenance. In addition, the MB411SPO-2B supports up to 6Gbps transfer speed, with receiving connector rated for up to 10,000 drive insertions. Utilizing its heavy duty design with hot-swap drive function, the MB411SPO-2B is a perfect storage device for those who need high-quality, robust, removable drive enclosure to store, transport, and protect their sensitive data such as government agencies, digital cinemas, and small business organizations.
Ultra Slim ODD Bay CompatibleThe ToughArmor MB411SPO-2B has the exact same form factor of an ultra slim ODD, including the outer dimensions, port locations, and mounting holes, allowing it to fit perfectly into any 9.5mm ultra slim optical bay. With ToughArmor MB411SPO-2B, you can quickly add a hot-swappable 2.5” SATA HDD / SSD to any system that has an ultra slim ODD bay such as laptops, rackmount computers, IPCs, workstation PCs, desktop computers, OEM / ODM systems, embedded control systems, and factory automation systems.

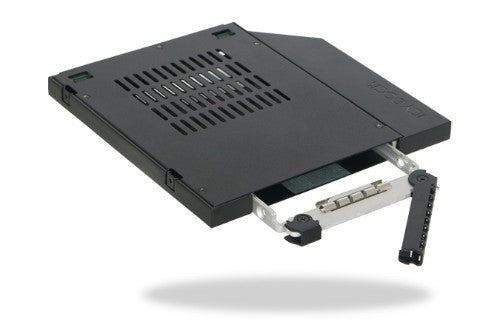

Removable 2.5” Drive DesignThe EZ Slide Slim carrier tray supports hot-swap and makes drive maintenance completely hassle-free in the event of drive failure, drive transport, and drive archive. With this tray, down time from a swap of a hard drive is now greatly reduced. Featuring both durable and slim design, the trays are built with robust solid metal frames to securely mount and protect 5mm to 7mm height HDD/SSD, creating a reliable 2.5" hot swap bay for any standard ultra slim optical bay. The EZ Slide Slim carrier tray is also compatible with ToughArmor MB993SK-B, making drive interchangeability between systems as easy as 1-2-3.
Exceptional Build QualityEnsuring the material used can be relied upon for many years after its deployment, the MB411SPO-2B has a heavy duty metal construction throughout the entire device, capable of holding up in the harshest environments. The ToughArmor’s full metal design is perfect for industrial devices that may require a flammability rating since a full-metal construction already complies with flammability requirements.

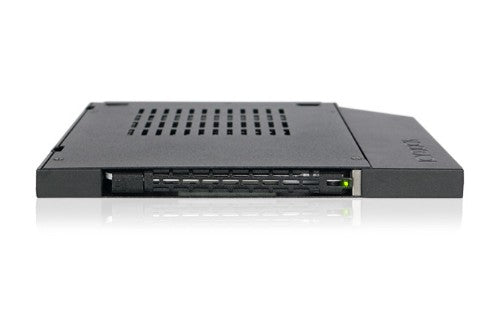

Versatile Utility & SecurityTo bring more utility to your hard drives and SSDs, a LED is installed into the front of the mobile rack to provide drive status information at all times. Active Power Technology (APT) allows device power to be on only when a drive is inserted into the enclosure. The ToughArmor MB411SPO-2B uses a single 13-pin slimline SATA cables to power & access the MB411SPO-2B.
Compatible with Laptop Optical Bay (9.5mm height)Transforming your optical CD/DVD-ROM bay to a hot-swappable 2.5" SSD bay is a simple task. However, for some Laptops, the ODD has a bracket attached in the rear. The bracket needs to be removed and installed onto the rear of MB411SPO-2B before inserting into the laptop's optical bay.
Specifications
| Features |
|---|
| LED indicators |
Yes |
| Certification |
CE, REACH |
| HDD size |
2.5" |
| Hot-swap |
Yes |
| Supported storage drive heights |
7 mm |
| Type |
Carrier panel |
| Size (imperial) |
2.5" |
| Number of HDDs supported |
1 |
| Data transfer rate |
6 Gbit/s |
| Product colour |
Black |
| Material |
Metal, Plastic |
| Technical details |
|---|
| LED indicators |
Yes |
| Certification |
CE, REACH |
| HDD size |
2.5" |
| Hot-swap |
Yes |
| Operating relative humidity (H-H) |
5 - 65% |
| Supported storage drive heights |
7 mm |
| Type |
Carrier panel |
| Size (imperial) |
2.5" |
| Operating temperature (T-T) |
0 - 60 °C |
| Number of HDDs supported |
1 |
| Data transfer rate |
6 Gbit/s |
| Product colour |
Black |
| Material |
Metal, Plastic |
| Harmonized System (HS) code |
84733080 |
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Width |
5.03" (127.8 mm) |
| Weight |
5.33 oz (151 g) |
| Height |
0.374" (9.5 mm) |
| Depth |
5.09" (129.4 mm) |
| Packaging data |
|---|
| Package weight |
6.89 oz (195.3 g) |
| Packaging content |
|---|
| Screws included |
Yes |
| Manual |
Yes |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
5 - 65% |
| Storage temperature (T-T) |
-35 - 70 °C |
| Operating temperature (T-T) |
0 - 60 °C |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733080 |
