612cps, 9-pin, 128KB, Parallel, USB 2.0, 55db, Black
Key Features
- Extreme reliability — long life cycle; durable design with very few moving parts; withstands dust, humidity and extreme temperatures
- Low cost of ownership — up-to-7.5-million-character ribbon cartridge offers a low cost per page and reduces the frequency of user interventions
- Powerful productivity — ultra-fast 9-pin printer speeds through multipart forms and reports at up to 738 cps
- Seamless integration with both new and legacy systems — includes Epson ESC/P, IBM PPDS and MICROLINE printer languages for greater flexibility
- Advanced paper handling — simple paper path for remarkable reliability; accommodates cut-sheet paper and continuous forms up to 7 pages thick
- Easy setup and operation — user-friendly control panel with intuitive setup and configuration features
- Low power consumption — ENERGY STAR® V2.0 compliant
- Ethernet compatible — network card supports IPv6
Description

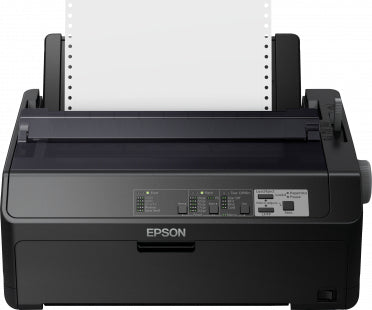

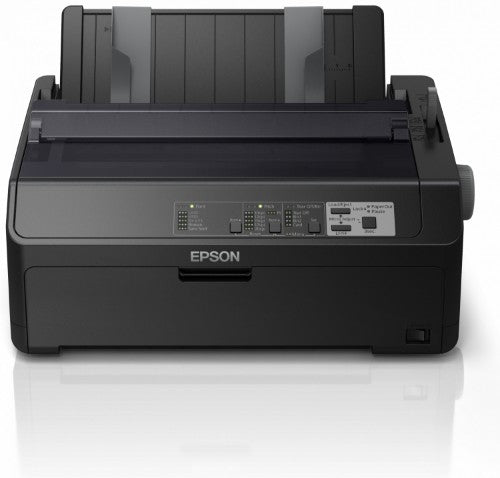

High-performance impact printers built for demanding print environmentsThe Epson FX-890II Series offers the durability and ease of use for critical daily print requirements. These reliable 9-pin, narrow-carriage impact printers boast a long life cycle, a 3-year limited warranty and speeds up to 738 cps1. Their up-to-7.5-million-character ribbon cartridge2 reduces user interventions as well as cost per page. Engineered for seamless integration into virtually any system, they include Epson ESC/P®, IBM® PPDS and MICROLINE® printer languages. Ideal for harsh environments, these workhorses race through cut-sheet, continuous or multipart forms up to 7 pages thick, and feature an intuitive control panel for easy setup and operation.
Specifications
| Print quality |
|---|
| Maximum printing width (columns) |
80 |
| Colour |
No |
| Printing |
|---|
| Maximum print speed (draft) |
463 cps |
| Maximum print speed (LQ) |
115 cps |
| Character pitch |
10 cpi |
| Maximum printing width (columns) |
80 |
| Character sets |
ISO 8859-15, Italic, PC437, PC850, PC858, Roman 8 |
| Built-in barcodes |
CODABAR (NW-7), Code 128 (A/B/C), Code 39, Industrial 2/5, Matrix 2/5, POSTNET, UPC-A, UPC-E |
| Maximum print speed |
612 cps |
| Colour |
No |
| Print technology |
|---|
| Print head |
9-pin |
| Paper handling |
|---|
| Cut sheet thickness range |
0.00472 - 0.0181" (0.12 - 0.46 mm) |
| Continuous paper thickness range |
0.0181 - 0.0181" (0.46 - 0.46 mm) |
| Features |
|---|
| Product colour |
Black |
| Buffer size |
128 KB |
| Sound pressure level (printing) |
55 dB |
| Page description languages |
ESC P, PPDS |
| Memory |
|---|
| Buffer size |
128 KB |
| Ports & interfaces |
|---|
| Standard interfaces |
Parallel, USB 2.0 |
| Endurance |
|---|
| Print head |
9-pin |
| Print head life |
400 million characters |
| Ribbon life |
7.5 million characters |
| Mean time between failures (MTBF) |
20000 h |
| Power |
|---|
| AC input voltage |
120 V |
| AC input frequency |
50 - 60 Hz |
| Operational conditions |
|---|
| Operating temperature (T-T) |
5 - 35 °C |
| Storage temperature (T-T) |
-30 - 60 °C |
| Operating relative humidity (H-H) |
10 - 80% |
| Storage relative humidity (H-H) |
30 - 60% |
| Weight & dimensions |
|---|
| Width |
17.2" (437 mm) |
| Depth |
14.8" (376 mm) |
| Height |
6.97" (177 mm) |
| Weight |
15.8 lbs (7.17 kg) |
| Technical details |
|---|
| Sustainability certificates |
ENERGY STAR |
| Design |
|---|
| Product colour |
Black |
