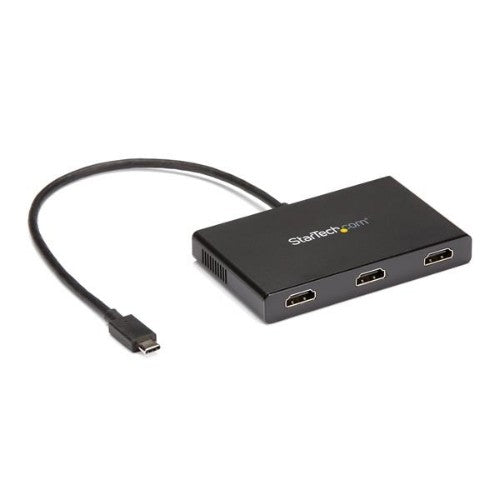

StarTech.com 3-Port Multi Monitor Adapter - USB-C to 3x HDMI Video Splitter - USB Type-C to HDMI MST Hub - Dual 4K 30Hz or Triple 1080p - Thunderbolt 3 Compatible - Windows Only (MSTCDP123HD)
Key Features
- MULTI-MONITOR CONFIGURATION: USB Type-C to Triple HDMI adapter/splitter hub drives up to three 1080p 60Hz or two 4K 30Hz monitors using a USB C DP Alt-Mode port on Windows laptops; TB3/TB4/USB4 Compatible; Not compatible with macOS
- NO DRIVERS OR SOFTWARE: Increase productivity by adding three extended or mirrored displays to a Windows laptop; Utilize integrated or discrete GPU (Intel/AMD/Nvidia) capabilities enabling high performance graphics with minimal CPU usage
- HARDWARE COMPATIBILITY: Host system must support DP Alt Mode 1.2 / HBR2 / MST; Please verify maximum number of displays supported by your GPU; Some GPU chips (such as Intel HD Graphics) are only capable of supporting a maximum of three displays
- Extra-Long CABLE: 1ft (30 cm) built-in cable for extended reach reduces USB-C port/connector strain on 2-in-1 devices like Surface Pro 7/8/9, HP Elite x2/laptops on riser stands; Ideal for on-the-go travel use in office/home office/shared workspaces
- OUR ADVANTAGE: Included connectivity tools for IT Pro's and IT help-desk support teams with Windows Layout Utility which restores windows app locations when re-connecting the USBC to Triple HDMI Adapter
Description

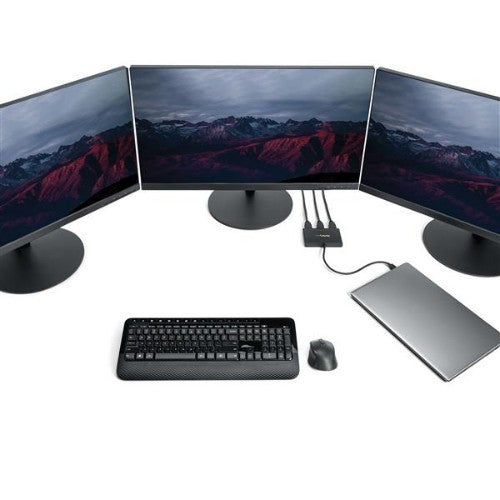

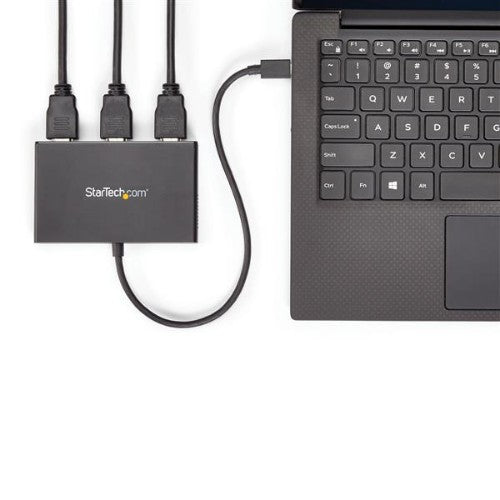

Create a high-performance triple-display workstation by connecting a USB Type-C™ device to three independent HDMI® monitors
This 3-port USB-C to HDMI MST hub lets you connect three HDMI monitors to your USB Type-C Windows device, conveniently helping you to increase and maximize your productivity.
Multi-tasking Made Easy
With devices becoming more portable than ever, you can be limited to fewer video outputs and confined to your small integrated screen. This multi-stream transport hub solves that problem by enabling you to connect three displays to your USB-C computer, making multi-tasking much easier.
Using this USB-C to HDMI video splitter, you can mirror your display onto additional monitors or stream independent content to each display which makes it the ideal accessory for travel or hot-desking.
Astonishing Picture Quality
MST technology uses your existing video card to minimize the use of system resources while delivering UHD 4K resolutions for up to two monitors simultaneously. Plus, because the USB-C hub can output HD 1080p on three independent displays, it’s perfect for all high-resolution applications such as graphic design and medical imaging.
Hassle-Free Setup
Multi-stream transport offers an easy setup, by natively working on any Windows device that supports DP Alt Mode over USB Type-C. This USB-C to HDMI adapter is Thunderbolt 3 compatible and offers for plug-and-play installation with no drivers or software required. Additionally, this triple monitor adapter is powered by the USB-C port, meaning no external power cords are necessary.
MSTCDP123HD is backed by a StarTech.com 3-year warranty, and free lifetime technical support.
The StarTech.com Advantage
Specifications
| Performance |
|---|
| Chipset |
MegaChips - STDP4320, |
| Supported graphics resolutions |
1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1200 (WUXGA), 2560 x 1440, 2560 x 1600 (WQXGA), 3840 x 2160 |

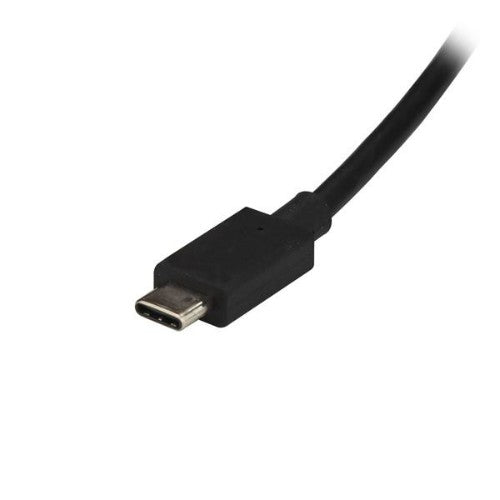

| USB connector type |
USB Type-C |
| USB connector gender |
Male |
| DVI output |
No |

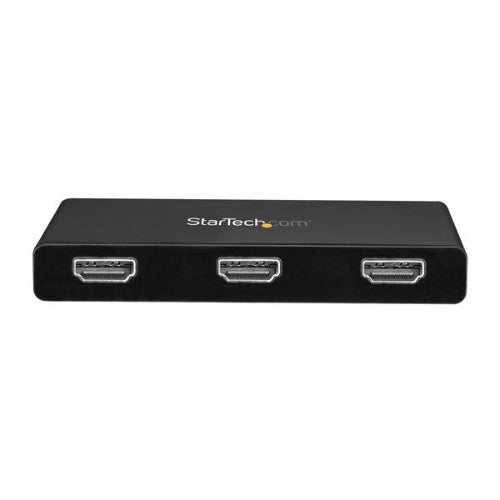

| HDMI output |
Yes |
| DisplayPort output |
No |
| Number of displays supported |
3 |
| HDMI version |
1.4 |
| Maximum resolution |
3840 x 2160 pixels |
| Refresh rate at maximum resolution |
30 Hz |
| Certification |
CE, FCC, REACH |
| Design |
|---|
| Product colour |
Black |
| Integrated USB cable |
Yes |
| USB cable length |
11.8" (0.3 m) |
| System requirements |
|---|
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 x64 |
| Weight & dimensions |
|---|
| Width |
2.56" (65 mm) |
| Depth |
4.13" (105 mm) |
| Height |
0.591" (15 mm) |
| Weight |
4.16 oz (118 g) |
| USB cable length |
11.8" (0.3 m) |
| Package width |
6.06" (154 mm) |
| Package depth |
9.65" (245 mm) |
| Package height |
2.44" (62 mm) |
| Package weight |
10.6 oz (300 g) |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 45 °C |
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating relative humidity (H-H) |
50 - 90% |
| Packaging data |
|---|
| Package width |
6.06" (154 mm) |
| Package depth |
9.65" (245 mm) |
| Package height |
2.44" (62 mm) |
| Package weight |
10.6 oz (300 g) |
| Technical details |
|---|
| Harmonized System (HS) code |
84733020 |
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Products per master (outer) case |
10 pc(s) |
| Master (outer) case width |
13" (330 mm) |
| Master (outer) case length |
19.7" (500 mm) |
| Master (outer) case height |
8.66" (220 mm) |
| Harmonized System (HS) code |
84733020 |
