StarTech.com 12U 19" Wall Mount Network Rack - Adjustable Depth 12-20" 2 Post Open Frame Server Room Rack for AV/Data/ IT Communication/Computer Equipment/Switch w/Cage Nuts & Screws (RK12WALLOA)
Key Features
- DURABLE & ADJUSTABLE: This adjustable 12U 19" open frame wall mount network rack is EIA/ECA-310 compatible w/ 12-20" mounting depth supports most network switches like Cisco 2960
- HEAVY DUTY: This heavy duty 2 post open frame rack supports unobstructed airflow and is easy to install w/ a durable design made from SPCC cold-rolled steel with support for up to 200lbs of equipment
- CERTIFIED PACKAGING: The rack ships flat packed with ISTA-6 certified packaging to ensure complete and undamaged delivery and also features comprehensive assembly instructions

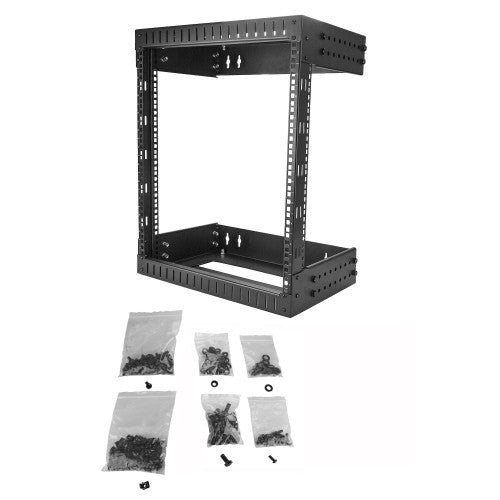

- ACCESSORIES INCLUDED: The wall mount server room/ computer/communication/AV/IT equipment rack includes a complete set of screws & cage nuts to securely mount all of your equipment in the rack
- STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years; this 2-post adjustable wallmount rack is backed for 5 years by StarTech.com, including free 24/5 North America based multi-lingual tech support
Description
Mount your network and telecommunications equipment with the convenience of adjustable depth
This open-frame wall-mount server rack provides 12U of storage, helping you to save space and stay organized. The equipment rack features an adjustable depth and can hold a total of up to 198 lb. (90 kg).
Easy, hassle-free installation
With adjustable depth to as low as 12 in. (30.5 cm) this network rack is perfect for smaller spaces. It's easy to assemble and features wall-mounting holes that are spaced 12 and 16 in. apart, making it suitable for mounting on almost any wall, based on North American wall-frame stud-spacing standards. The wall-mount rack comes in a flat-pack, which makes it easy to transport and saves you money on shipping.
Accommodate larger devices
The open-frame rack adjusts from 12 to 20 in. (30.5 to 50.8 cm) to accommodate larger data, network, and telecommunication devices. The above-average depth also gives you the option to mount shelves and other accessories.
Free up space
When space is limited you can mount the open-frame rack on a server room wall, office, or above a doorway, to expand your workspace and ensure your equipment is easy to access.
Keep your equipment cool and accessible
The rack's open frame design ensures passive cooling for your rack-mounted equipment. Additionally, the open frame provides easy access to your equipment and makes it easier to configure mounted devices, which saves you time.
The StarTech.com Advantage
Specifications
| Weight & dimensions |
| Package depth |
26.4" (670 mm) |
| Package width |
20.9" (530 mm) |
| Package height |
5.12" (130 mm) |
| Package weight |
37.5 lbs (17 kg) |
| Mounting depth (max) |
19.9" (50.5 cm) |
| Width |
19.8" (503 mm) |
| Depth |
20.1" (510 mm) |
| Height |
25.2" (640 mm) |
| Weight |
32.2 lbs (14.6 kg) |
| Maximum weight capacity |
198.4 lbs (90 kg) |
| Packaging content |
| Manual |
Yes |
| Nuts included |
Yes |
| Number of nuts |
48 |
| Screws included |
Yes |
| Number of screws |
64 |
| Number of bolts |
24 |
| Number of washers included |
72 |
| Features |
| Frame type |
Open |
| Product design |
2-post |
| Rack capacity |
12U |
| Adjustable mounting rails |
Yes |
| Cable management |
No |
| Mounting hole shape |
Square |
| Type |
Wall mounted rack |
| Maximum weight capacity |
198.4 lbs (90 kg) |
| Material |
Steel |
| Product colour |
Black |
| Certification |
CE, REACH |
| Packaging data |
| Manual |
Yes |
| Nuts included |
Yes |
| Number of nuts |
48 |
| Package depth |
26.4" (670 mm) |
| Package width |
20.9" (530 mm) |
| Package height |
5.12" (130 mm) |
| Package weight |
37.5 lbs (17 kg) |
| Screws included |
Yes |
| Number of screws |
64 |
| Number of bolts |
24 |
| Number of washers included |
72 |
| Technical details |
| Package width |
20.9" (530 mm) |
| Package height |
5.12" (130 mm) |
| Type |
Wall mounted rack |
| Compliance industry standards |
EIA/ECA-310-E |
| Harmonized System (HS) code |
85381000 |
| Compliance certificates |
RoHS |
| Rack capacity |
12U |
| Colour |
| Product colour |
Black |
| Certificates |
| Certification |
CE, REACH |
| Material |
| Material |
Steel |
| Logistics data |
| Master (outer) case width |
24.8" (630 mm) |
| Master (outer) case length |
26.4" (670 mm) |
| Master (outer) case height |
5.12" (130 mm) |
| Products per master (outer) case |
1 pc(s) |
| Harmonized System (HS) code |
85381000 |
| Other features |
| Compliance industry standards |
EIA/ECA-310-E |
