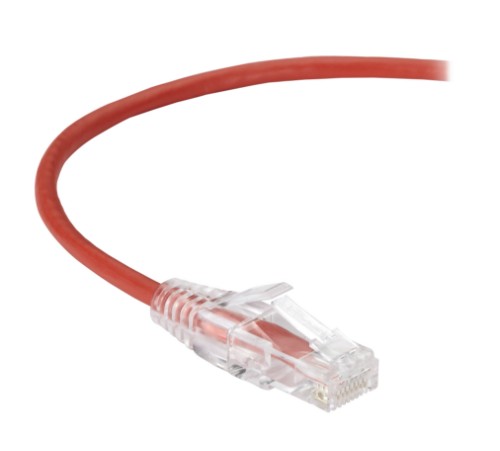

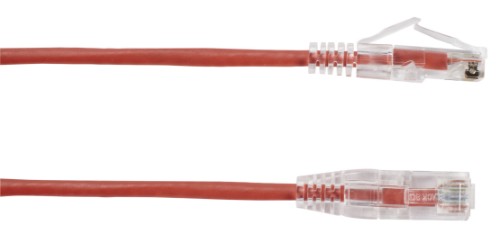

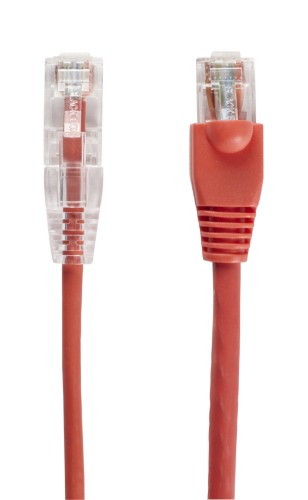

Slim-Net Low-Profile CAT6 250-MHz Ethernet Patch Cable - Snagless, Unshielded (UTP)
Key Features
- Slim-Net cables feature a low-profile design to save space in high-density applications.
- 28-AWG cable is nearly half the diameter of standard cabling.
- This cable reduces clutter, enhances airflow and improves heat dissipation.
- Cabling meets ANSI/TIA-568-C.2 performance standards.
- Cable tested to 250-MHz CAT6 industry standard.
- 50-micron gold-plated contacts provide superior conductivity.
- Snagless boots prevent connector damage due to snags during installation.
Description
- Save space in crowded telecom rooms and data centers.
- 28-AWG cable is nearly half the diameter of 24-AWG cable.
- Reduce clutter in high-density cabinets and racks.
- Tested up to 250 MHz.
- Smaller diameter means easier cable handling.
- Improve cable management.
- Improve air flow.
- Strain-relief boot with tab protects cables.
- Guaranteed for life!
Slim fit.28-AWG Ethernet patch cables save space and reduce clutter in crowded telecom rooms and high-density data centers. With a diameter of only .161"", this 28-AWG cable is almost half the size of a typical 24-AWG cable. When you calculate the physical cable area in bundles and in patching connections, you'll actually save more than 50% space when compared to traditional cables.
Easier cable handling.Because there's more space between patched 28-AWG cables, there's more space for handling when doing installs and MACs. A side benefit is improved air flow and port visibility.
Reduce cable management.Because 28-AWG cables have a reduced footprint and increased flexibility, you can easily route cables without a cable manager. And you can gain 50% or more space in vertical cable managers.
Conserve rack space.A major benefit of using 28-AWG cables is the ability to put more cables in high-density 1U or 2U patch panels freeing up valuable rack units. You can also eliminate or reduce the number of horizontal cable managers, freeing up even more space.
Big performance in a small cable.Black Box 28-AWG cable conforms to all performance standards and passed channel testing. You can be assured of guaranteed-for-life performance.
Specifications
| Technical details |
|---|
| Product colour |
Red |
| Plug and Play |
Yes |
| Cable standard |
Cat6 |
| Cable shielding |
U/UTP (UTP) |
| Connector 1 |
RJ-45 |
| Connector 2 |
RJ-45 |
| Connector contacts plating |
Gold |
| Input impedance |
100 Ω |
| Jacket material |
Polyvinyl chloride (PVC) |
| Conductor type |
Stranded |
| Cable length |
35.4" (0.9 m) |
| Features |
|---|
| Input impedance |
100 Ω |
| Product colour |
Red |
| Snagless cable boot |
Yes |
| Connector shielding |
No |
| Conductor material |
Copper |
| Frequency |
250 MHz |
| AWG wire size |
28 |
| Plug and Play |
Yes |
| Cable standard |
Cat6 |
| Cable shielding |
U/UTP (UTP) |
| Connector 1 |
RJ-45 |
| Connector 2 |
RJ-45 |
| Connector contacts plating |
Gold |
| Jacket material |
Polyvinyl chloride (PVC) |
| Conductor type |
Stranded |
| Cable length |
35.4" (0.9 m) |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Weight & dimensions |
|---|
| Outer diameter |
0.161" (4.1 mm) |
| Other features |
|---|
| Input impedance |
100 Ω |
