2-Port HDMI Splitter - HDCP 2.2, 4K @ 60 Hz, HDR, TAA
Key Features
- Supports UHD resolutions up to 4K @ 60 Hz (3840 x 2160) for crystal-clear video
- Distributes A/V up to 15 ft. when used with 28 AWG HDMI cable
- Supports High Dynamic Range (HDR) for richer contrast and expanded color accuracy
- Expand the number of connected displays, up to 32, by cascading up to 3 levels of splitters together
- Plug-and-play operation with no software required for easy, immediate installation
Description

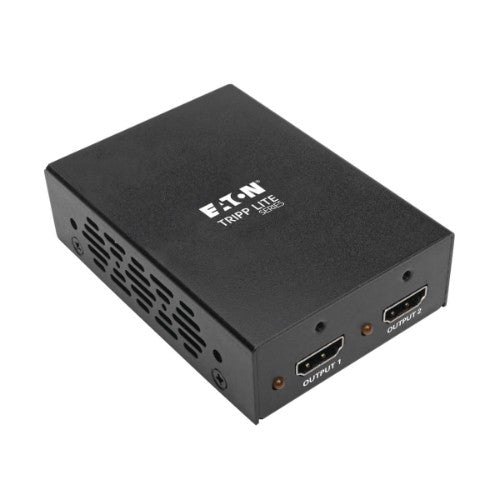

The B118-002-UHD-2 2-Port 4K 3D HDMI Splitter transmits a UHD 4K @ 60 Hz (3840 x 2160) audio/video signal from an HDMI source, such as a Blu-ray player or computer, to two HDMI monitors, projectors or televisions at the same time. Ideal for classrooms, churches, offices, restaurants, bars, trade shows and anywhere else featuring 4K x 2K digital signage, the B118-002-UHD-2 is quick and simple to install with no software or drivers necessary.
Using standard 28 AWG HDMI cabling, this splitter can transmit a 4K (3840 x 2160) signal up to 15 feet (4.6 meters). It supports a wide range of audio formats, including DTS-HD, Dolby TrueHD, Dolby Digital Plus, and LPCM 7.1-channel surround sound, as well as 36-bit Deep Color (12 bits per channel). The Full 3D-compliant B118-002-UHD-2 also supports HDCP 2.2 for up-to-date content protection.
Note: The B118-002-UHD-2 sends the same image to all connected displays. If you would like to extend an image over multiple displays, you will need an MST hub, such as the B156-002-HD-V2.
Specifications
| Ports & interfaces |
|---|
| Video ports quantity |
3 |
| Video port type |
HDMI |

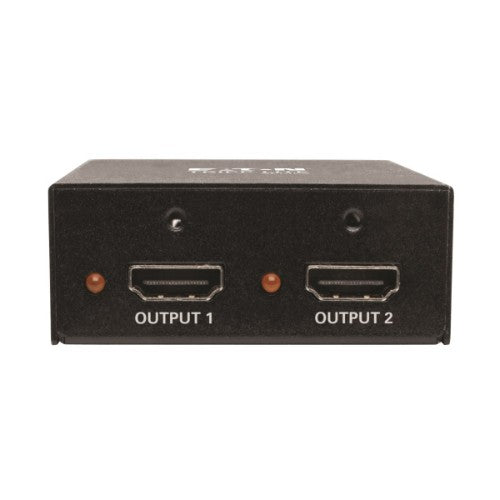

| Video out |
2x HDMI |

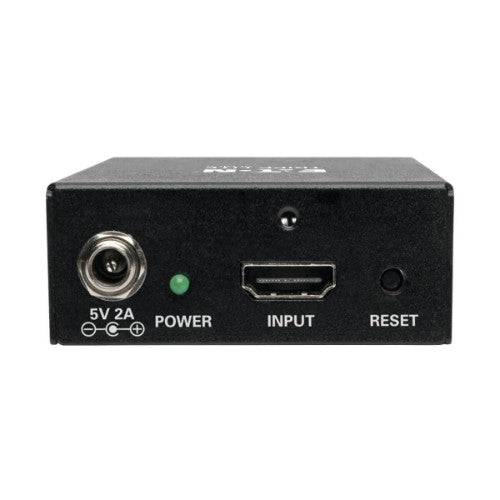

| DC-in jack |
Yes |
| Connector(s) |
HDMI (FEMALE), HDMI (FEMALE) (X2) |
| Connector contacts plating |
Nickel |
| Features |
|---|
| Housing material |
Metal |
| Maximum refresh rate |
60 Hz |
| Colour depth |
36 bit |
| Supported graphics resolutions |
3840 x 2160 |
| Maximum resolution |
3840 x 2160 pixels |
| HDCP |
Yes |
| Power LED |
Yes |
| Plug and Play |
Yes |
| Maximum operating distance |
181.1" (4.6 m) |
| Product colour |
Black |
| 3D |
Yes |
| Connector contacts plating |
Nickel |
| HDCP version |
2.2 |
| High Dynamic Range (HDR) supported |
Yes |
| Country of origin |
Taiwan |
| Power |
|---|
| Input current |
0.35 A |
| Output current |
2 A |
| Output voltage |
5 V |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100-240 V |
| Weight & dimensions |
|---|
| Weight |
2.82 oz (80 g) |
| Width |
6.46" (164 mm) |
| Depth |
7.24" (184 mm) |
| Height |
21.6" (549 mm) |
| Package weight |
15.9 oz (450 g) |
| Package type |
Box |
| Package depth |
7.2" (182.9 mm) |
| Package width |
6.2" (157.5 mm) |
| Package height |
2.1" (53.3 mm) |
| Packaging data |
|---|
| Package weight |
15.9 oz (450 g) |
| Package type |
Box |
| Package depth |
7.2" (182.9 mm) |
| Package width |
6.2" (157.5 mm) |
| Package height |
2.1" (53.3 mm) |

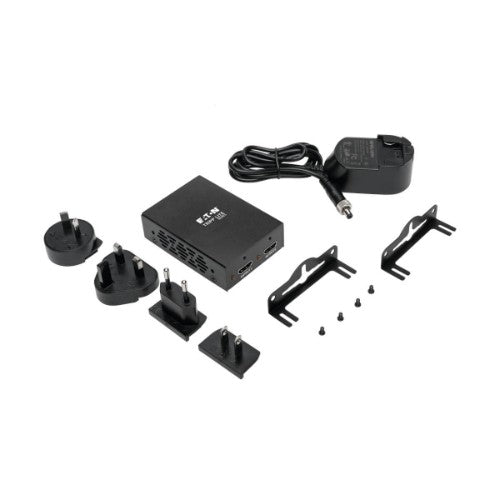

| Packaging content |
|---|
| Manual |
Yes |
| Package type |
Box |
| Video |
|---|
| Maximum refresh rate |
60 Hz |
| Colour depth |
36 bit |
| Supported graphics resolutions |
3840 x 2160 |
| Maximum resolution |
3840 x 2160 pixels |
| HDCP |
Yes |
| 3D |
Yes |
| Colour |
|---|
| Product colour |
Black |
| Indication |
|---|
| Power LED |
Yes |
| Technical details |
|---|
| Housing material |
Metal |
| Package width |
6.2" (157.5 mm) |
| Package height |
2.1" (53.3 mm) |
| Video out |
2x HDMI |
| Plug and Play |
Yes |
| Number of connectors |
3 |
| Maximum operating distance |
181.1" (4.6 m) |
| Logistics data |
|---|
| Master (outer) case width |
6.9" (175.3 mm) |
| Master (outer) case length |
22.4" (569 mm) |
| Master (outer) case height |
7.8" (198.1 mm) |
| Master (outer) case gross weight |
11.5 lbs (5.22 kg) |
| Products per master (outer) case |
10 pc(s) |
| Master (outer) case GTIN (EAN/UPC) |
10037332200645 |
| Harmonized System (HS) code |
85176990 |
| Country of origin |
Taiwan |
