USB-C Multiport Adapter (M/3xF) - 4K HDMI, DVI, VGA, HDCP, White
Key Features
- Separate DVI, HD15 and HDMI female connectors
- HDMI port supports 4K x 2K video resolutions @ 30 Hz

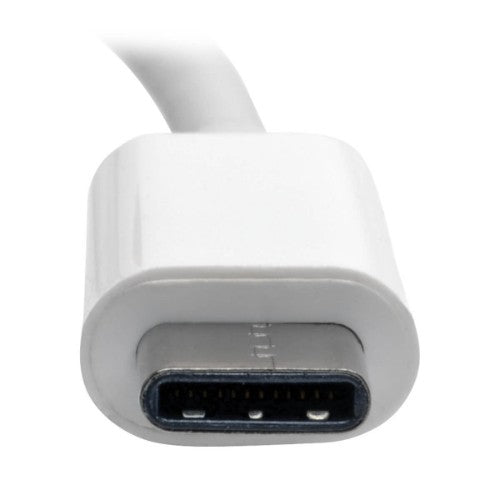

- Supports USB DisplayPort Alternate Mode
- Plug and play—no software, drivers or power supply needed
- Low-profile design for easy carrying in laptop bag or briefcase
Description

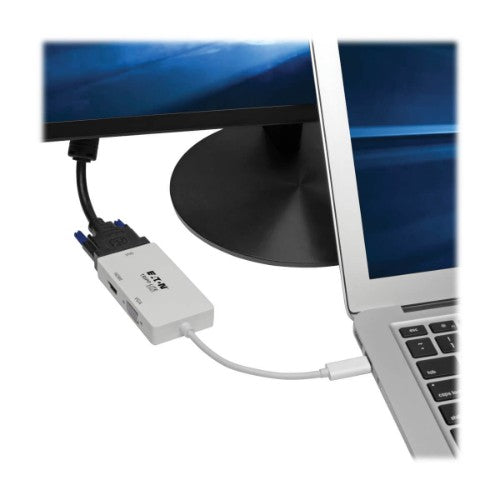

No more carrying around separate adapters for various monitors, projectors and televisions. The U444-06N-HDV4K USB-C to HDMI/DVI/VGA All-in-One Converter Adapter connects your laptop or tablet’s USB Type-C or Thunderbolt 3 port to an HDMI, DVI or VGA display. The simple all-in-one solution for displaying content on a larger screen, the U444-06N-HDV4K is ideal for use in trade shows, conference rooms, classrooms, lecture halls and anywhere else you might give a presentation.

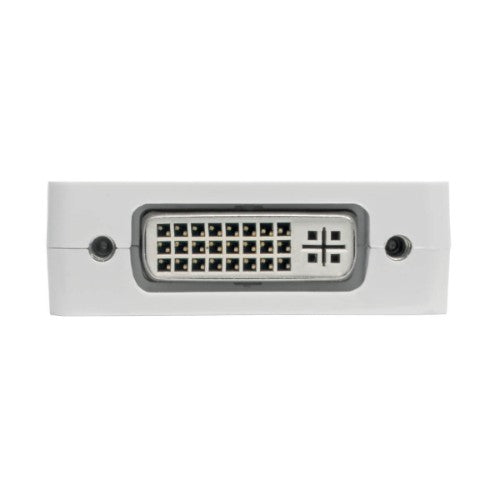

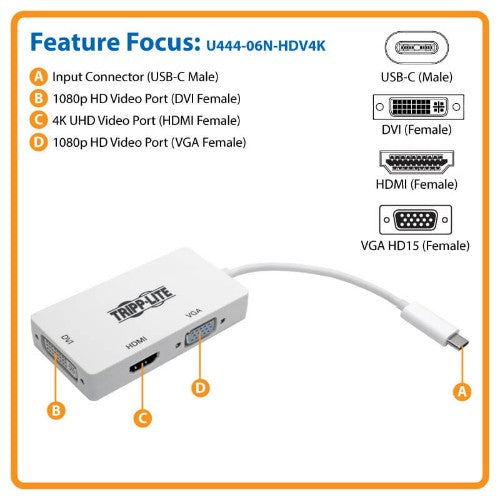

The all-in-one unit contains separate female HDMI, DVI and HD15 ports. USB DisplayPort Alternate Mode allows audio/video signals to pass through your source device’s USB-C or Thunderbolt 3 port. It supports video resolutions up to 3840 x 2160 (4K x 2K) at 30 Hz (HDMI); 1920 x 1080 (1080p) at 60 Hz (DVI); and 1920 x 1200, including 1080p (HD15) at 60 Hz. It also supports 36-bit Deep Color (12 bits per channel), 7.1-channel surround sound audio (HDMI) and HDCP 1.4.
The U444-06N-HDV4K is specifically designed for use with MacBook, Google Chromebook Pixel and all other laptops, tablets and devices equipped with a female USB-C or Thunderbolt 3 port. It’s completely plug-and-play with no software, drivers or external power supply required. With its small size and built-in cable, the U444-06N-HDV4K is recommended for stowing in your laptop bag and carrying to school, the office or the latest trade show.
Specifications
| Performance |
|---|
| Maximum resolution |
3840 x 2160 pixels |
| Maximum resolution (DVI) |
1920 x 1080 pixels |
| Maximum resolution (HDMI) |
3840 x 2160 pixels |
| Certification |
CE, FCC |
| Design |
|---|
| Product colour |
White |
| Weight & dimensions |
|---|
| Weight |
1.76 oz (50 g) |
| Package width |
5.51" (140 mm) |
| Package depth |
3.94" (100.1 mm) |
| Package height |
0.909" (23.1 mm) |
| Package weight |
2.47 oz (70 g) |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 45 °C |
| Storage temperature (T-T) |
-10 - 70 °C |
| Packaging data |
|---|
| Package width |
5.51" (140 mm) |
| Package depth |
3.94" (100.1 mm) |
| Package height |
0.909" (23.1 mm) |
| Package weight |
2.47 oz (70 g) |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Technical details |
|---|
| Master (outer) case GTIN (EAN/UPC) |
10037332203578 |
| Harmonized System (HS) code |
84733020 |
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Country of origin |
Vietnam |
| Products per master (outer) case |
10 pc(s) |
| Master (outer) case width |
11.6" (294.9 mm) |
| Master (outer) case gross weight |
30.7 oz (870 g) |
| Master (outer) case length |
5.31" (134.9 mm) |
| Master (outer) case height |
4.72" (119.9 mm) |
| Quantity per pack |
1 pc(s) |
| Master (outer) case GTIN (EAN/UPC) |
10037332203578 |
| Harmonized System (HS) code |
84733020 |
