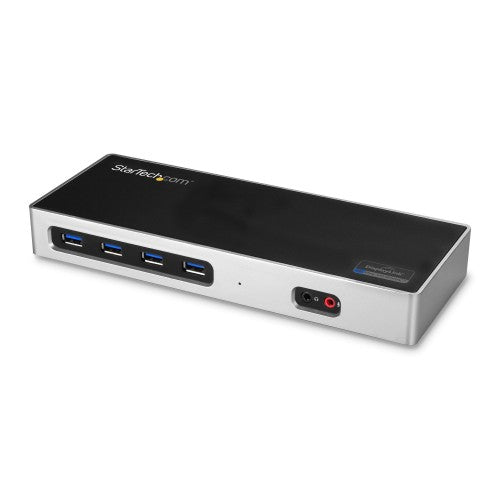

StarTech.com USB-C & USB-A Dock - Dual Monitor 4K 60Hz Dock DisplayPort + HDMI - Hybrid USB 3.0 Docking Station for USB-C/USB-A Laptops - 6x USB Type-A, GbE - USB 3.1 Gen 1 - Mac/Windows (DK30A2DH)
Key Features
- DUAL 4K 60Hz HYBRID USB-C & USB-A DOCK: Universal USB 3.0 docking station (5Gbps) works with USB-C & USB-A laptops/computers; port replicator features 6-Port USB Type-A hub, Gigabit Ethernet, and 3.5mm audio jacks (headset and mic)
- FLEXIBLE MULTI MONITOR VIDEO: This dual 4K 60Hz universal laptop docking station can connect up to 2 monitors: Dual DisplayPort or Dual HDMI or DP + HDMI displays - supports two extended displays on MacBooks with both the Intel processor or Apple M1/M2 chip

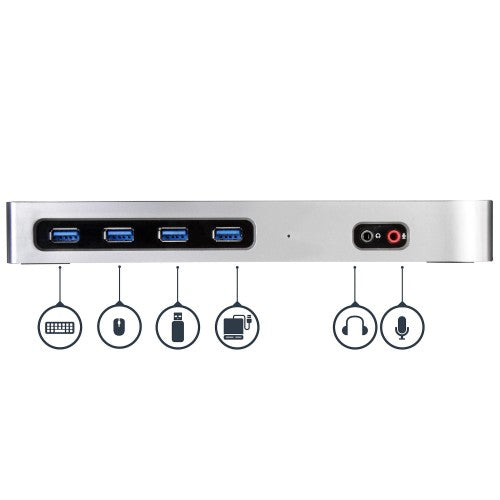

- 6 DOWNSTREAM USB-A PORTS: Hybrid USB C dock has a built-in 6-port USB 3.1/3.2 Gen 1 (5Gbps) hub with USB-A ports on the front and back to support devices such as a keyboard, mouse, flash drive, external hard drive, and printer
- FOR USB-A & USB-C LAPTOPS: DisplayLink certified DL 6950 chipset supports USB-C/Thunderbolt 3 & USB-A PCs; USB-C & USB-A host cables incl; Supports Windows, macOS, Chrome OS, & Ubuntu; This dock does not provide USB-C Power Delivery to charge your laptop
- STARTECH.COM ADVANTAGE: StarTech.com offers a 3-year warranty and free lifetime technical support on all docking stations; with over 3000 products globally, StarTech.com makes hard-to-find easy.
Description
Laptop Docking Station | Mac & Windows® | DisplayPort & HDMI | 4K 60 Hz
This dual-4K docking station offers wide flexibility in setting up your workstation, working with both USB-C and USB-A port laptops and supporting multiple combinations of Ultra HD 4K DisplayPort and HDMI monitors.

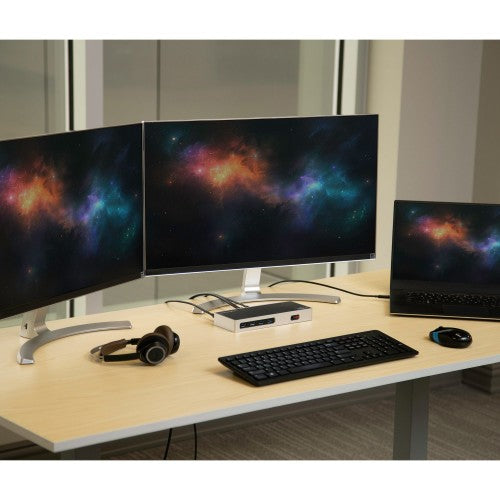

Enhance Productivity with Dual-4K 60Hz Video
Ideal for highly detailed graphics applications, this dual-4K 60Hz docking station enhances your productivity by expanding the display capabilities of your laptop across two Ultra HD 4K monitors. The laptop docking station works with DisplayLink® to support high-resolution monitors, enabling two full 4K 60Hz displays from a single USB connection.
With the dual-4K dock, connect:
• 2x 4K DisplayPort displays (up to 4096 x 2160p @ 60Hz)
• 2x 4K HDMI displays (up to 4096 x 2160p @ 60Hz)
• 1x 4K DisplayPort + 4K HDMI displays (up to 4096 x 2160p @ 60Hz)
Connects to USB-C and USB-A Laptops
The USB 3.0 docking station supports USB-C and USB-A enabled Mac and Windows laptops. This means you can connect newer USB-C or Thunderbolt™ 3 laptops or extend the life of legacy USB 3.0 (Type-A) laptops.

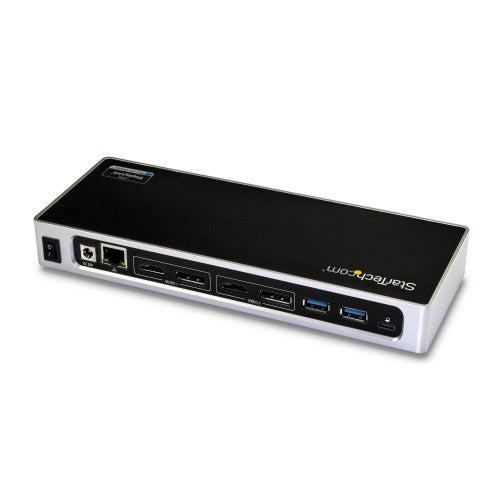

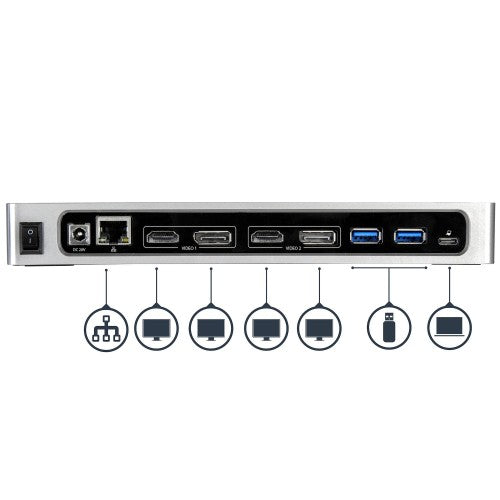

All the Connections You Need
This USB-A & USB-C dock lets you transform your Mac or Windows laptop into a full workstation with six USB 3.0 (Type-A) ports, a Gigabit Ethernet port, and separate 3.5 mm audio and microphone ports for multiple audio connections, all using a single cable.
DK30A2DH is backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
Specifications
| Ports & interfaces |
|---|
| Combo headphone/mic port |
No |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
6 |
| Number of microphone inputs |
1 |
| Headphone connectivity |
3.5 mm |
| Host interface |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI ports quantity |
2 |
| DisplayPorts quantity |
2 |
| Microphone in |
Yes |
| Headphone outputs |
1 |
| DC-in jack |
Yes |
| Connectivity technology |
Wired |
| Network |
|---|
| Full duplex |
Yes |
| Auto MDI/MDI-X |
Yes |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports |
1 |
| 10G support |
No |
| Performance |
|---|
| UASP support |
Yes |
| Maximum digital resolution |
4096 x 2160 pixels |
| Full duplex |
Yes |
| Auto MDI/MDI-X |
Yes |
| Number of displays supported |
2 |
| On/off switch |
Yes |
| Product colour |
Black, Silver |
| Card reader integrated |
No |
| Brand compatibility |
Any brand |
| LED indicators |
Power |
| Data transfer rate |
5 Gbit/s |
| Certification |
CE, FCC, REACH |
| Housing material |
Aluminum, Plastic |
| USB data transfer rates |
12,480,5000 Mbit/s |
| Technical details |
|---|
| Product colour |
Black, Silver |
| Brand compatibility |
Any brand |
| Data transfer rate |
5 Gbit/s |
| Cable length |
5.98" (0.152 m) |
| Harmonized System (HS) code |
84733020 |
| Compliance certificates |
RoHS |
| Products per master (outer) case |
10 pc(s) |
| Master (outer) case width |
12.8" (325 mm) |
| Master (outer) case length |
12.8" (325 mm) |
| Master (outer) case height |
12" (305 mm) |
| Storage |
|---|
| Card reader integrated |
No |
| Power |
|---|
| Power source type |
AC |
| Input current |
1 A |
| Power plug type |
Type N |
| Compatible power plug types |
AU, EU, JP, UK, US |
| AC input voltage |
100 - 240 V |
| Power consumption (typical) |
40 W |
| Output voltage |
20 V |
| Output current |
2 A |
| Software |
|---|
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 |
| Mac operating systems supported |
Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura |
| Mac compatibility |
Yes |
| Indication |
|---|
| LED indicators |
Power |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-10 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
|---|
| Weight |
10.6 oz (301 g) |

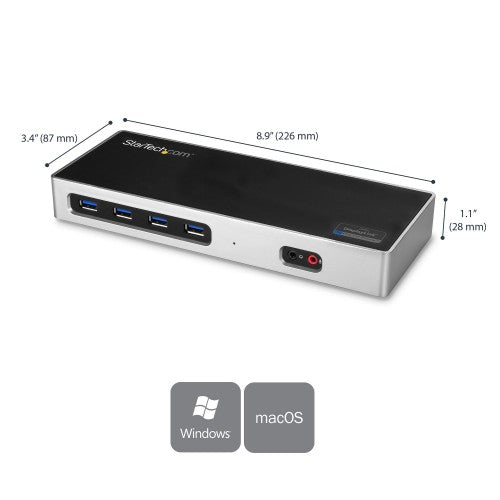

| Width |
3.43" (87 mm) |
| Depth |
8.9" (226 mm) |
| Height |
1.1" (28 mm) |
| Package weight |
31.7 oz (900 g) |
| Package width |
5.12" (130 mm) |
| Package depth |
12.5" (318 mm) |
| Package height |
2.05" (52 mm) |
| Design |
|---|
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 |
| Mac operating systems supported |
Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura |
| Product colour |
Black, Silver |
| LED indicators |
Power |
| Certification |
CE, FCC, REACH |
| Packaging data |
|---|
| Package weight |
31.7 oz (900 g) |
| Package width |
5.12" (130 mm) |
| Package depth |
12.5" (318 mm) |
| Package height |
2.05" (52 mm) |

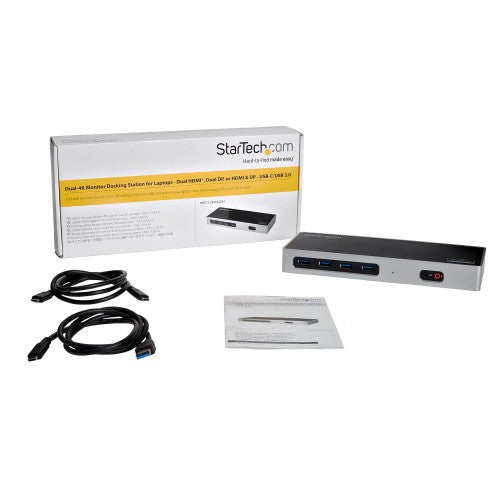

| Packaging content |
|---|
| Quick start guide |
Yes |
| Cables included |
USB Type-A to USB Type-C, USB Type-C |
| AC adapter included |
Yes |
| Certificates |
|---|
| Certification |
CE, FCC, REACH |
| Logistics data |
|---|
| Products per master (outer) case |
10 pc(s) |
| Master (outer) case width |
12.8" (325 mm) |
| Master (outer) case length |
12.8" (325 mm) |
| Master (outer) case height |
12" (305 mm) |
| Harmonized System (HS) code |
84733020 |
| Other features |
|---|
| USB data transfer rates |
12,480,5000 Mbit/s |
| Number of microphone inputs |
1 |
| Chipset |
DisplayLink - DL-6950, VIA/VLI - VL813 |
| Cable length |
5.98" (0.152 m) |
