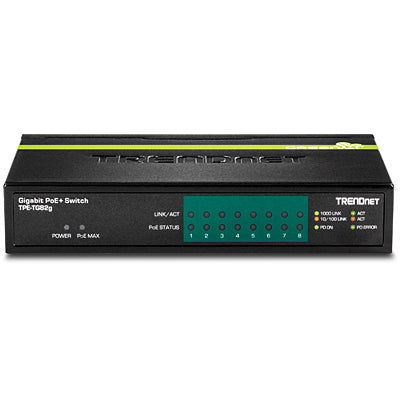

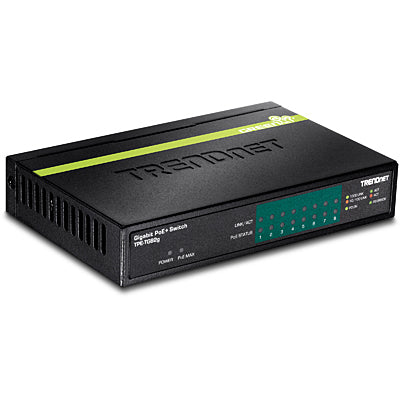

8-Port Gigabit PoE+ Switch
Key Features
- 8 x Gigabit PoE+ ports
- 61W PoE budget
- 16Gbps switching capacity
- Sturdy metal switch
- Plug and Play installation
- Use with TRENDnet's PoE Splitter to network and power non-PoE devices
- NDAA / TAA compliant (U.S. and Canada only)
Description
The 8-Port Gigabit PoE+ Switch, model TPE-TG82g, delivers data and power over existing Ethernet cables to Power over Ethernet (PoE) devices such as Access Points and IP Cameras. It supports both PoE and PoE+ devices with a 61W PoE budget. Plug and Play this sturdy metal switch for reliable high-speed PoE networking.
PoE PowerA 61W PoE power budget supports up to eight Power over Ethernet devices.
Gigabit EthernetEight gigabit ports provide a 16Gbps switching capacity to support edge network installations.
Compact DesignWith a compact and lightweight housing design, this switch is well-suited for desktop installations. Its fanless design is ideal for quiet environments that require silent operation.
Specifications
| Management features |
| Switch type |
Unmanaged |
| Virtual Cable Test (VCT) |
Yes |
| Ports & interfaces |

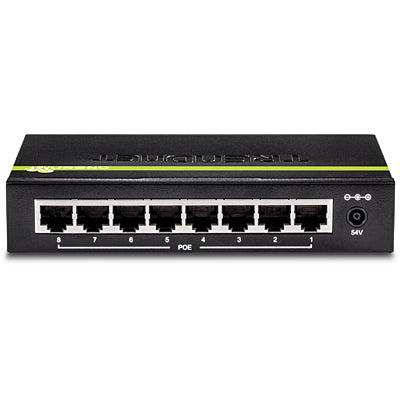

| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity |
0 |
| Installed SFP+ modules quantity |
0 |
| Network |
| Networking standards |
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Full duplex |
Yes |
| VLAN support |
Yes |
| Virtual LAN features |
VLAN Identifier ( VLAN ID), Voice VLAN |
| Data transmission |
| Jumbo frames |
9000 |
| Throughput |
11.9 Mpps |
| MAC address table |
8000 entries |
| Switching capacity |
16 Gbit/s |
| Jumbo frames support |
Yes |
| Security |
| DHCP features |
DHCP snooping |
| Design |
| Product colour |
Black |
| LED indicators |
Yes |
| Housing material |
Metal |
| Rack mounting |
No |
| Certification |
CE, FCC |
| Performance |
| Maximum data transfer rate |
2000 Mbit/s |
| Buffer size |
128 KB |
| Plug and Play |
Yes |
| Harmonized System (HS) code |
85176990 |
| Power |
| Power consumption (max) |
36 W |
| Output voltage |
54 V |
| Output current |
1.67 A |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Power over Ethernet (PoE) |
| Power over Ethernet plus (PoE+) ports quantity |
8 |
| Total Power over Ethernet (PoE) budget |
61 W |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
0 - 90% |
| Virtual LAN features |
| VLAN support |
Yes |
| Virtual LAN features |
VLAN Identifier ( VLAN ID), Voice VLAN |
| Weight & dimensions |
| Width |
5.91" (150 mm) |
| Depth |
3.74" (95 mm) |
| Height |
1.18" (30 mm) |
| Weight |
14.1 oz (400 g) |
| Packaging content |
| Quick start guide |
Yes |
| Cables included |
AC |

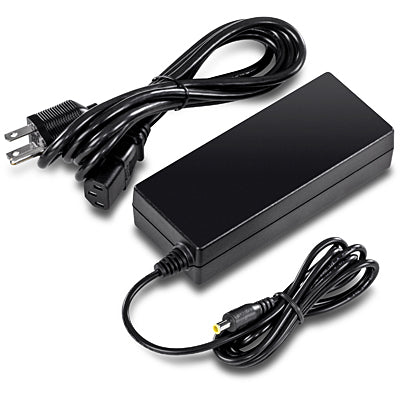

| AC adapter included |
Yes |
| Packaging data |
| AC adapter included |
Yes |
| Quick start guide |
Yes |
| Cables included |
AC |
| Technical details |
| Product colour |
Black |
| Housing material |
Metal |
| Rack mounting |
No |
| Certificates |
| Certification |
CE, FCC |
| Indication |
| LED indicators |
Yes |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
