USB-C to Displayport 4K 60Hz Adapter, Black
Key Features
- Supports USB DisplayPort Alternate Mode for transmitting audio/video
- Supports UHD video resolutions up to 3840 x 2160 (4K) @ 60 Hz
- Supports 7.1-channel surround sound

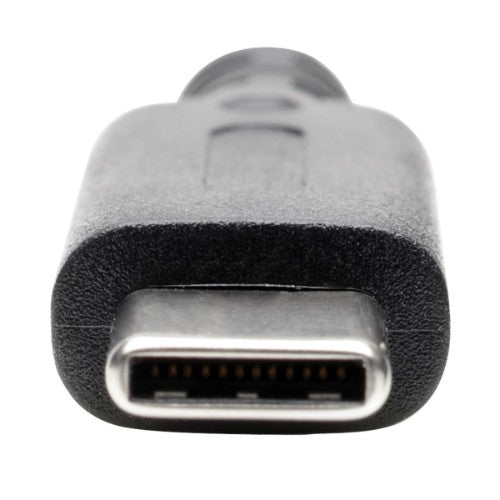

- Reversible USB-C plug connects in either direction
- Plug-and-play operation with no software or drivers required
Description

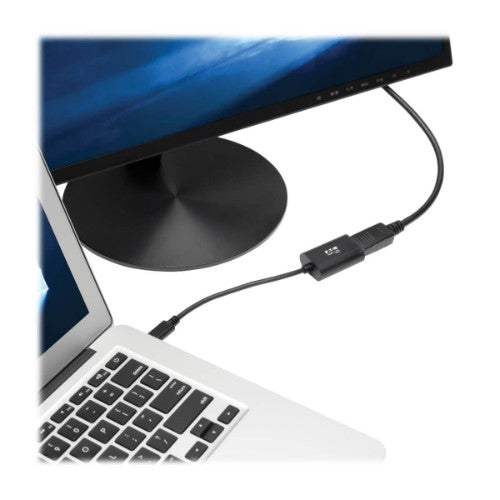

The U444-06N-DP4K6B USB 3.1 Gen 1 USB-C to DisplayPort 4K Adapter (M/F) helps you transmit digital audio and 4K video from your tablet, laptop, Chromebook, MacBook, smartphone or PC to a DisplayPort-enabled television, monitor or projector. It’s an ideal tool for giving video presentations in conference rooms and classrooms, editing multiple documents on a larger screen, or streaming video for digital signage in crystal-clear 4K.
With a source device that also supports USB DisplayPort Alternate Mode, you can extend video from your primary display to another, duplicate the same video on both displays, or change the second display to your primary.
The plug-and-play U444-06N-DP4K6B requires no software, drivers or external power. Connect the reversible USB-C plug to your source device’s USB-C or Thunderbolt 3 port. The fumble-free USB-C plug connects in either direction to ensure fast, easy connection every time. Then, connect the DisplayPort end to your display using a DisplayPort cable (sold separately).
The U444-06N-DP4K6B supports UHD video resolutions up to 3840 x 2160 (4K) at 60 Hz, 24-bit Deep Color (8 bits per channel) and 7.1-channel surround sound.
Specifications
| Features |
|---|
| Country of origin |
China |
| Product colour |
Black |
| Cable length |
5.98" (0.152 m) |
| Connector 1 |
USB Type-C |
| Connector 2 |
DisplayPort |
| Connector 1 gender |
Male |
| Connector 2 gender |
Female |
| Connector contacts plating |
Nickel/Gold |
| Data transfer rate |
5 Gbit/s |
| Maximum resolution |
3840 x 2160 pixels |
| Certification |
FCC, CE |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-20 - 70 °C |
| Storage temperature (T-T) |
-20 - 85 °C |
| Operating relative humidity (H-H) |
5 - 90% |
| Certificates |
|---|
| Certification |
FCC, CE |
| Compliance certificates |
RoHS |
| Technical details |
|---|
| Country of origin |
China |
| Harmonized System (HS) code |
84733080 |
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Cable diameter |
0.157" (4 mm) |
| Weight |
0.705 oz (20 g) |
| Package width |
2.9" (73.7 mm) |
| Package depth |
5.7" (144.8 mm) |
| Package height |
1" (25.4 mm) |
| Package weight |
1.76 oz (50 g) |
| Packaging data |
|---|
| Package width |
2.9" (73.7 mm) |
| Package depth |
5.7" (144.8 mm) |
| Package height |
1" (25.4 mm) |
| Package weight |
1.76 oz (50 g) |
| Quantity per pack |
1 pc(s) |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Logistics data |
|---|
| Master (outer) case width |
6.1" (154.9 mm) |
| Master (outer) case length |
11.5" (292.1 mm) |
| Master (outer) case height |
3.7" (94 mm) |
| Master (outer) case gross weight |
2.4 lbs (1.09 kg) |
| Products per master (outer) case |
10 pc(s) |
| Master (outer) case GTIN (EAN/UPC) |
10037332203424 |
| Harmonized System (HS) code |
84733080 |
