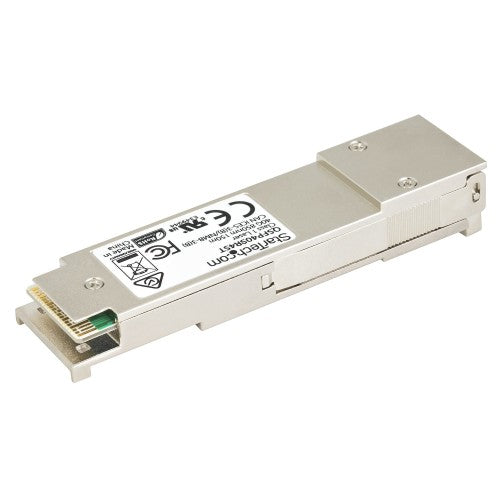

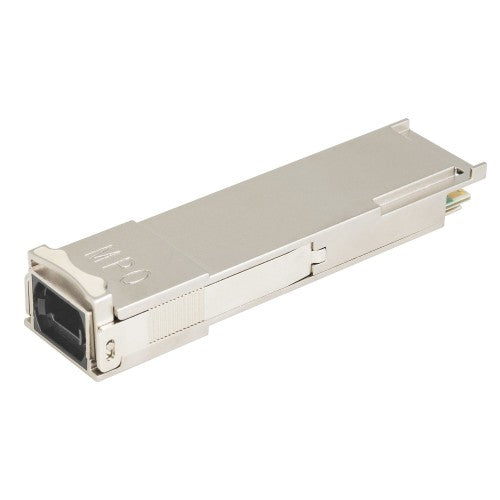

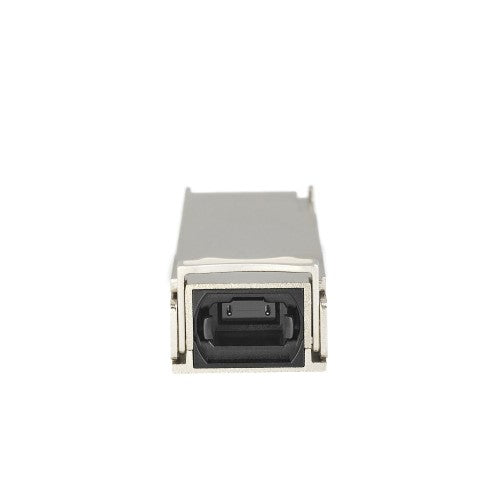

StarTech.com MSA Uncoded Compatible QSFP+ Module - 40GBASE-SR4 - 40GbE Multi Mode Fiber (MMF) Optic Transceiver - 40GE Gigabit Ethernet QSFP+ - MPO 100m - 850nm - DDM (QSFP40SR4ST)
Key Features
- 100% MSA UNCODED QSFP+ TRANSCEIVER: Designed, programmed and tested to work with compatible MSA Compliant switches and routers to deliver reliable 40GbE connectivity
- TECHNICAL SPECS: 40GBASE-SR4 / 40Gbps / Multi Mode (MMF) / MPO Connector / 850nm / Digital Diagnostic Monitoring (DDM) / Distances up to 100m (328ft)
- TESTED FOR COMPATIBILITY: Hot-swappable in MSA Compliant routers and switches; DDM support reports the transceiver's status to most SNMP network management tools.
- WORKS WITH MSA COMPLIANT SWITCHES: Works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
- THE IT PRO’S CHOICE: Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance
Description
40 Gbps | Multi Mode Fiber | MPO | 150 m (492 ft) | Lifetime Warranty
The QSFP40SR4ST is an MSA compliant fiber QSFP+ transceiver that's designed, programmed and tested to work with 40GBASE-SR4 compatible MSA switches and routers. The QSFP+ transceiver module supports a maximum distance of up to 150 m (492 ft) and delivers dependable 40 GbE connectivity over fiber cabling.
Technical Specifications:
• Wavelength: 850 nm
• Maximum Data Transfer Rate: 40 Gbps
• Type: Multi Mode Fiber
• Connection Type: MPO Connector
• Maximum Transfer Distance: 150 m (492 ft)
• MTBF: 1,489,426 hours
• Power Consumption: Less than 0.7 Watts
• DDM: Yes
This QSFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
Specifications
| Network |
|---|
| SFP transceiver type |
Fiber optic |
| Interface type |
QSFP+ |
| Maximum data transfer rate |
40000 Mbit/s |
| Fiber optic connector |
MPO |
| Networking standards |
IEEE 802.3ba |
| Performance |
|---|
| Product colour |
Silver |
| Housing material |
Aluminum |
| Hot-Plug support |
Yes |
| Mean time between failures (MTBF) |
1489426 h |
| SFP transceiver type |
Fiber optic |
| Digital Diagnostics Monitoring (DDM) |
Yes |
| Interface type |
QSFP+ |
| Maximum data transfer rate |
40000 Mbit/s |
| Fiber optic connector |
MPO |
| Networking standards |
IEEE 802.3ba |
| Maximum transfer distance |
5905.5" (150 m) |
| Wavelength |
850 nm |
| Duplex system |
Full |
| Multi-mode fiber (MMF) supported |
Yes |
| SFP transceiver standard |
SR4 |
| Harmonized System (HS) code |
85369010 |
| Features |
|---|
| Product colour |
Silver |
| Housing material |
Aluminum |
| Hot-Plug support |
Yes |
| Certification |
CE, FCC, UR |
| Mean time between failures (MTBF) |
1489426 h |
| Power |
|---|
| Power consumption (typical) |
0.7 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Weight & dimensions |
|---|
| Width |
0.724" (18.4 mm) |
| Depth |
2.83" (72 mm) |
| Height |
0.512" (13 mm) |
| Weight |
1.2 oz (34 g) |
| Package depth |
4.72" (120 mm) |
| Package width |
3.54" (90 mm) |
| Package height |
1.18" (30 mm) |
| Package weight |
2.19 oz (62 g) |
| Packaging data |
|---|
| Package depth |
4.72" (120 mm) |
| Package width |
3.54" (90 mm) |
| Package height |
1.18" (30 mm) |
| Package weight |
2.19 oz (62 g) |
| Technical details |
|---|
| Compliance certificates |
RoHS |
| Certificates |
|---|
| Certification |
CE, FCC, UR |
| Logistics data |
|---|
| Master (outer) case width |
10.6" (270 mm) |
| Master (outer) case length |
13.4" (340 mm) |
| Master (outer) case height |
13" (330 mm) |
| Products per master (outer) case |
60 pc(s) |
| Harmonized System (HS) code |
85369010 |
| Quantity per pack |
1 pc(s) |
