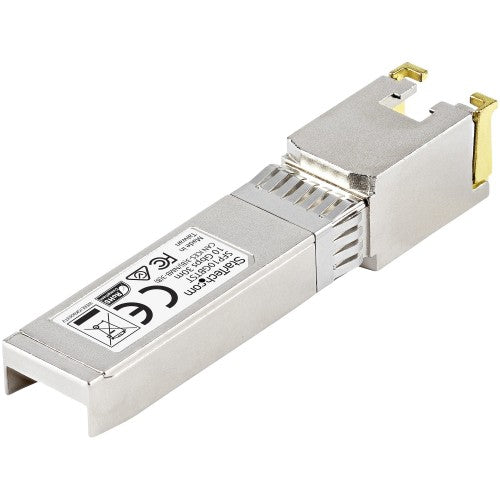

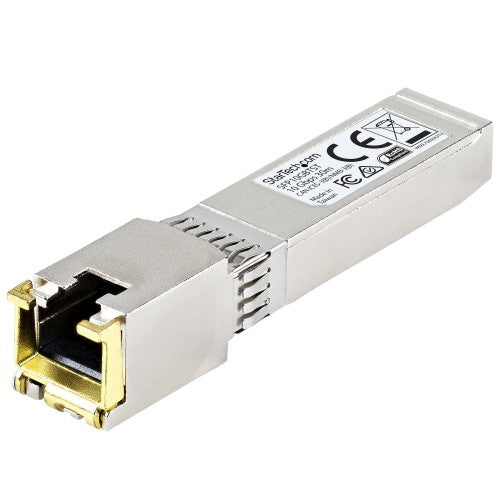

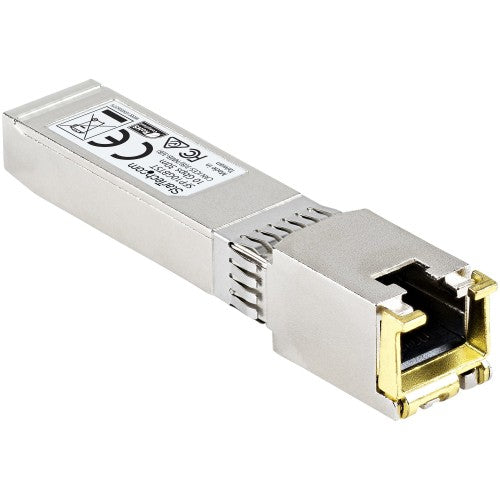

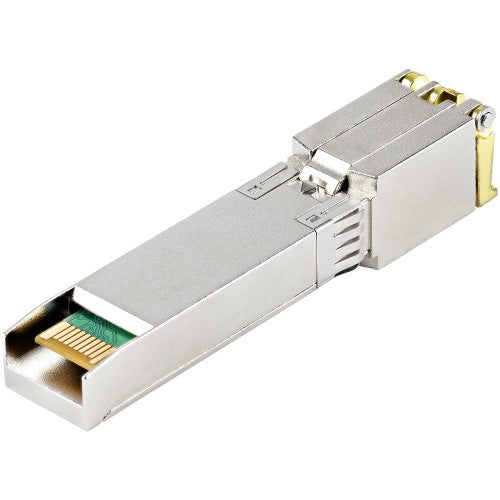

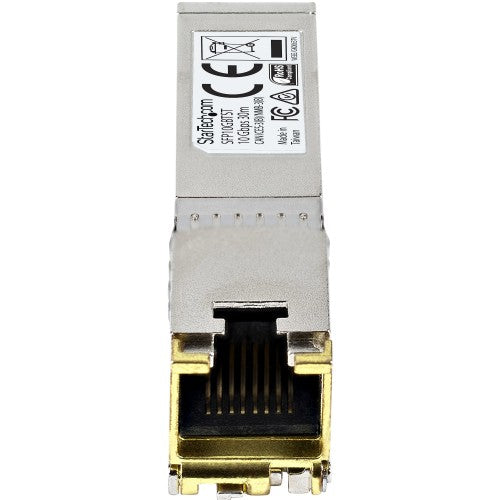

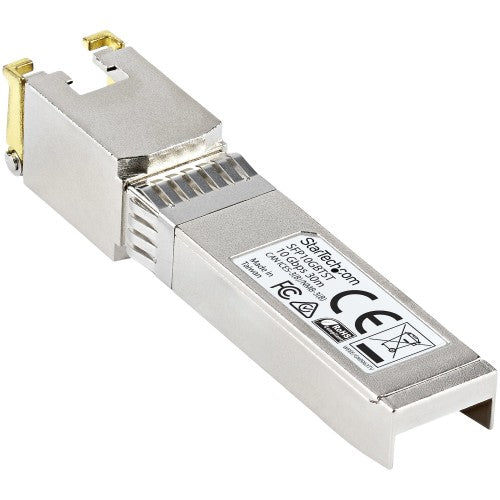

StarTech.com MSA Uncoded Compatible SFP+ Module - 10GBASE-T - SFP to RJ45 Cat6/Cat5e - 10GE Gigabit Ethernet SFP+ - RJ-45 30m -(SFP10GBTST)
Key Features
- 100% MSA UNCODED SFP+ TRANSCEIVER: Designed, programmed and tested to work with compatible MSA Compliant switches and routers to deliver reliable 10GbE connectivity
- TESTED FOR COMPATIBILITY: Hot-swappable in MSA Compliant routers and switches
- WORKS WITH MSA COMPLIANT SWITCHES: Works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
- THE IT PRO’S CHOICE: Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance
Description
10 Gbps | Copper | RJ45 | 30 m (98.4 ft) | Lifetime Warranty
The SFP10GBTST is an MSA compliant copper SFP transceiver that’s designed, programmed and tested to work with 10GBASE-T compatible switchess and routers. The SFP+ transceiver module supports a maximum distance of up to 30 m (98.4 ft.) and delivers dependable 10 GbE connectivity over copper cabling, which is a cost-effective alternative to fiber-optic cable setups.
Technical Specifications:
• Maximum Data Transfer Rate: 10 Gbps
• Type: Copper
• Connection Type: RJ45 Connector
• Maximum Transfer Distance: 30 m (98.4 ft.)
• MTBF: 4,598,430 hours DDM: No >
This SFP+ copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
Specifications
| Performance |
|---|
| SFP transceiver type |
Copper |
| Digital Diagnostics Monitoring (DDM) |
No |
| Interface type |
SFP+ |
| Maximum data transfer rate |
10000 Mbit/s |
| Networking standards |
IEEE 802.3an |
| Auto MDI/MDI-X |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Maximum transfer distance |
1181.1" (30 m) |
| Duplex system |
Full |
| Cabling technology |
10GBASE-T |
| Country of origin |
China |
| Product colour |
Silver |
| Housing material |
Zinc steel |
| Hot-Plug support |
Yes |
| Brand compatibility |
MSA Compliant |
| Harmonized System (HS) code |
85369010 |
| Features |
|---|
| Product colour |
Silver |
| Housing material |
Zinc steel |
| Hot-Plug support |
Yes |
| Brand compatibility |
MSA Compliant |
| Country of origin |
China |
| Certification |
CE, FCC |
| Power |
|---|
| Power consumption (typical) |
2.3 W |
| Certificates |
|---|
| Certification |
CE, FCC |
| Compliance certificates |
RoHS |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Network |
|---|
| SFP transceiver type |
Copper |
| Interface type |
SFP+ |
| Maximum data transfer rate |
10000 Mbit/s |
| Networking standards |
IEEE 802.3an |
| Ethernet LAN (RJ-45) ports |
1 |
| Cabling technology |
10GBASE-T |
| Weight & dimensions |
|---|
| Width |
0.547" (13.9 mm) |
| Depth |
2.76" (70 mm) |
| Height |
0.496" (12.6 mm) |
| Weight |
0.988 oz (28 g) |
| Package depth |
4.72" (120 mm) |
| Package width |
2.91" (74 mm) |
| Package height |
1.18" (30 mm) |
| Package weight |
2.12 oz (60 g) |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Packaging data |
|---|
| Package depth |
4.72" (120 mm) |
| Package width |
2.91" (74 mm) |
| Package height |
1.18" (30 mm) |
| Package weight |
2.12 oz (60 g) |
| Technical details |
|---|
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Quantity per pack |
1 pc(s) |
| Country of origin |
China |
| Master (outer) case width |
13.6" (345 mm) |
| Master (outer) case length |
15.2" (385 mm) |
| Master (outer) case height |
12" (305 mm) |
| Products per master (outer) case |
100 pc(s) |
| Harmonized System (HS) code |
85369010 |
