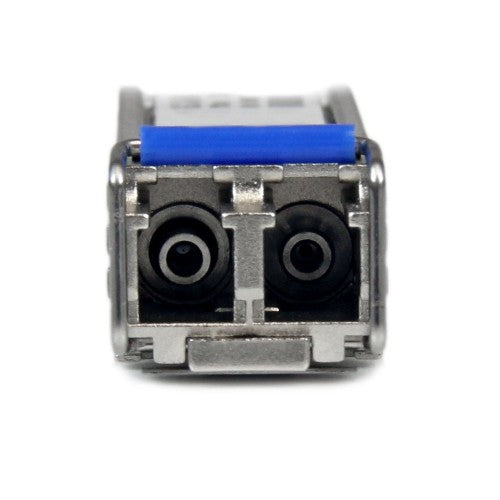

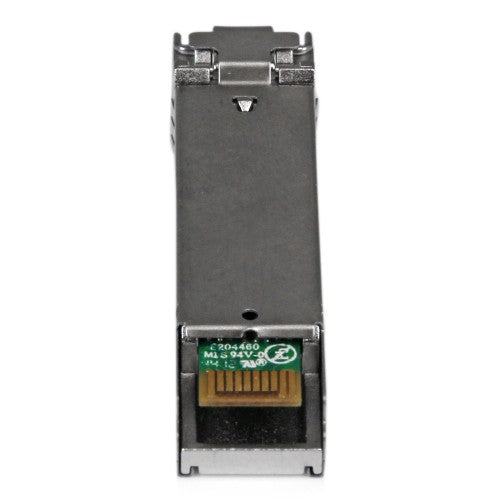

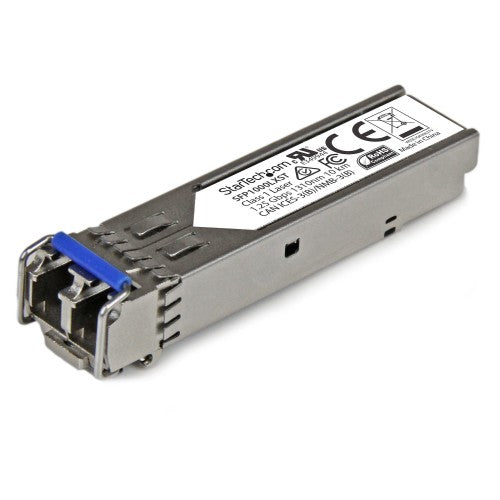

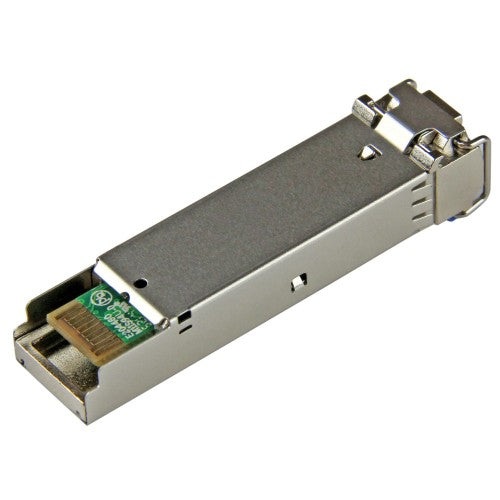

StarTech.com MSA Uncoded Compatible SFP Module - 1000BASE-LX - 1GbE Single Mode Fiber (SMF) Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 10km - 1310nm - DDM (SFP1000LXST)
Key Features
- 100% MSA UNCODED SFP TRANSCEIVER: Designed, programmed and tested to work with compatible MSA Compliant switches and routers to deliver reliable 1GbE connectivity
- TECHNICAL SPECS: 1000BASE-LX / 1Gbps / Single Mode (SMF) / LC Connector / 1310nm / Digital Diagnostic Monitoring (DDM) / Distances up to 10km (6.2mi)
- TESTED FOR COMPATIBILITY: Hot-swappable in MSA Compliant routers and switches; DDM support reports the transceiver's status to most SNMP network management tools.
- WORKS WITH MSA COMPLIANT SWITCHES: Works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
- THE IT PRO’S CHOICE: Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance
Description
1000 Mbps (1 Gbps) | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty
The SFP1000LXST is an MSA compliant fiber SFP transceiver that’s designed, programmed and tested to work with 1000BASE-LX compatible MSA switches and routers. The SFP transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 1 GbE connectivity over fiber cabling.
Technical Specifications:
• Wavelength: 1310nm
• Maximum Data Transfer Rate: 1.25 Gbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• Power Consumption: Less than 1 Watt
• DDM: Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
Specifications
| Performance |
| SFP transceiver type |
Fiber optic |
| Wavelength-division multiplexing (WDM) |
No |
| Digital Diagnostics Monitoring (DDM) |
Yes |
| Interface type |
SFP |
| Maximum data transfer rate |
1250 Mbit/s |
| Fiber optic connector |
LC |
| Networking standards |
IEEE 802.3z |
| Maximum transfer distance |
393700.8" (10000 m) |
| Wavelength |
1310 nm |
| Duplex system |
Full |
| Single-mode fiber (SMF) supported |
Yes |
| SFP transceiver standard |
LX |
| Country of origin |
China |
| Product colour |
Silver |
| Housing material |
Aluminum |
| Hot-Plug support |
Yes |
| Harmonized System (HS) code |
85369010 |
| Features |
| Product colour |
Silver |
| Housing material |
Aluminum |
| Hot-Plug support |
Yes |
| Country of origin |
China |
| Certification |
CE, FCC, UR |
| Power |
| Power consumption (typical) |
1 W |
| Certificates |
| Certification |
CE, FCC, UR |
| Compliance certificates |
RoHS |
| Operational conditions |
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Network |
| SFP transceiver type |
Fiber optic |
| Interface type |
SFP |
| Maximum data transfer rate |
1250 Mbit/s |
| Fiber optic connector |
LC |
| Networking standards |
IEEE 802.3z |
| Weight & dimensions |
| Width |
0.591" (15 mm) |
| Depth |
2.32" (59 mm) |
| Height |
0.472" (12 mm) |
| Weight |
0.635 oz (18 g) |
| Package depth |
4.61" (117 mm) |
| Package width |
3.62" (92 mm) |
| Package height |
1.3" (33 mm) |
| Package weight |
1.66 oz (47 g) |
| Packaging content |
| Quantity per pack |
1 pc(s) |
| Packaging data |
| Package depth |
4.61" (117 mm) |
| Package width |
3.62" (92 mm) |
| Package height |
1.3" (33 mm) |
| Package weight |
1.66 oz (47 g) |
| Technical details |
| Compliance certificates |
RoHS |
| Logistics data |
| Quantity per pack |
1 pc(s) |
| Country of origin |
China |
| Master (outer) case width |
7.87" (200 mm) |
| Master (outer) case length |
11.9" (302 mm) |
| Master (outer) case height |
10.1" (256 mm) |
| Products per master (outer) case |
35 pc(s) |
| Harmonized System (HS) code |
85369010 |
