StarTech.com 4K USB-C Dock, Triple UHD 4K Monitor Docking Station, Mac/Windows, HDMI & DisplayPort, 60W PD, 5x USB 5Gbps Hub, TAA
Key Features
- FULL-FEATURED DOCK: USB-C Dock with 3 video outputs (2x DP & 1x HDMI), 60WPower Delivery, 4x USB-A & 1x USB-C 5Gbps Hub, Gigabit Ethernet, headset + separate speaker/mic audio ports, K-Slot & 1m/3.3ft USB-C cable; Includes DisplayLink Update Utility
- TRIPLE DISPLAY ON MACBOOK AIR: Enable three external displays on Apple MacBook Air/Pro (base M-Series) laptops that natively only support one; Dual or Triple video connectivity w/ DisplayPort or HDMI ports; Driver installation required on Windows/macOS
- WORKS WITH ANY LAPTOP: Simplify your deployment with a USB-IF, VESA & DisplayLink compliant docking station that offers optimal performance and universal compatibility with any laptop (Windows, macOS and Ubuntu) or Chromebook (ChromeOS)
- UNIVERSAL USB-C & USB-A FUNCTIONALITY: Also connects to USB-A laptops with a USB-C to A cable adapter (USB315AC1M, sold separately); Note: Power Delivery to charge your laptop is not available through USB-A, and only dual display is supported
- IT-PRO ADVANTAGES: Included connectivity tools for IT Pros and IT help-desk support teams with Network MAC Address Pass-Through for network security, WiFi Auto Switching for improved network performance, USB Event Monitoring, and Windows Layout
Description
Laptop Docking Station | Mac & Windows® | 60W Power Delivery| 4K 60 DP + HDMI
This TAA compliant 4K USB-C™ dock for Mac and Windows® laptops takes productivity to a whole new level, with support for triple 4K monitors - a first in the market. The USB Type-C dock provides 60W charging power, and 5x USB 3.0 ports to connect your peripheral devices. It’s the perfect accessory for your Dell™ XPS 15, Chromebook Pixel™, or another USB-C enabled PC laptop.
The dock also connects to USB 3.0 laptops with a USB-A port (using a USB-C to A cable such as the USB315AC1M, sold separately).
Note: Power Delivery to charge your laptop is not available through USB-A, and only dual display is supported.
Enhance Productivity

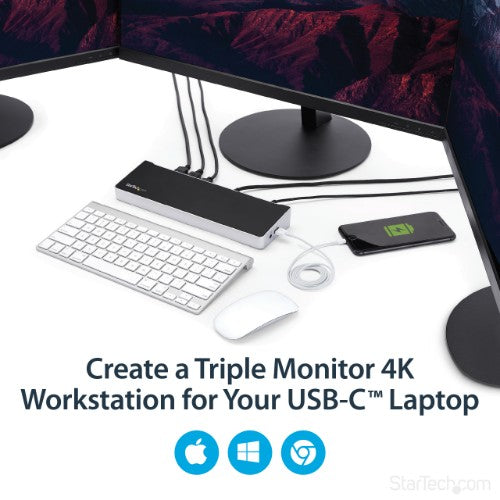

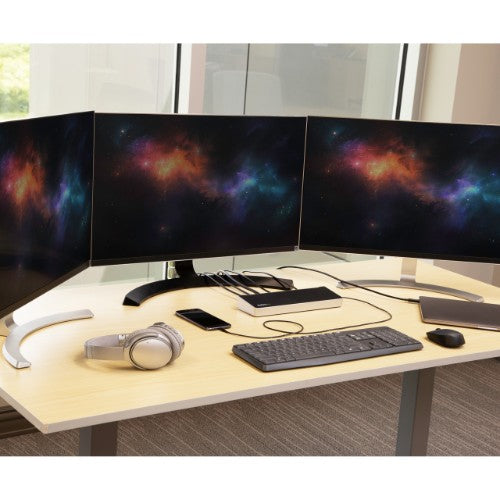

The 4K USB-C Dock for Mac and Windows lets you create a three-monitor Ultra HD workstation. Connect:
2x 4K DisplayPort (DisplayLink) at 4096 x 2160 resolution / 3840 x 2160 @ 60Hz and
1x 4K HDMI (DP Alt Mode) at 4096 x 2160 resolution @ 24Hz / 3840 x 2160 @ 30Hz
For high-resolution applications, the universal laptop docking station can also connect to a 5K display (5120 x 2880 resolution) at 60Hz, by connecting the two DisplayPort ports to a single 5K display.
Powerful Connections

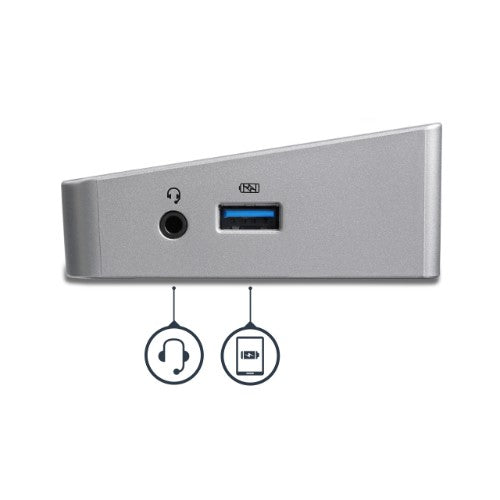

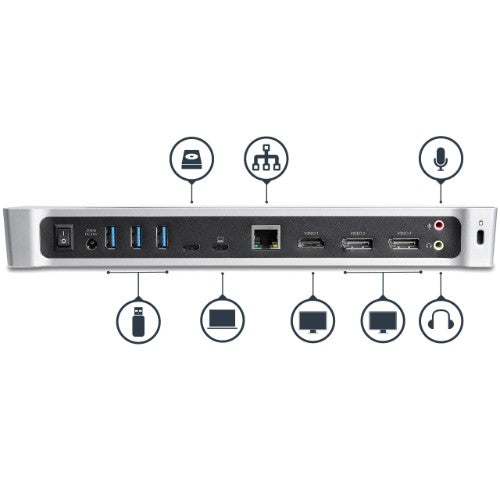

This triple-monitor docking station lets you connect your peripherals to transform your laptop into a full-sized workstation. With five USB 3.0 ports (1x USB Type-C and 4x USB Type-A incl 1x Fast-Charge port), a Gigabit Ethernet port, headset jack and separate 3.5 mm audio and microphone ports, you have all the connections you need for maximum performance.
60W Power Delivery
Using a single cable, the USB-C docking station with Power Delivery (up to 60W) will power and charge your laptop, and power your peripherals with its 120W power adapter.
The DK30CH2DPPD is backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
Specifications
| Ports & interfaces |
|---|
| Combo headphone/mic port |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
2 |
| Number of microphone inputs |
1 |
| Headphone connectivity |
3.5 mm |
| Host interface |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity |
0 |
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI ports quantity |
1 |
| DisplayPorts quantity |
2 |
| Microphone in |
Yes |
| Headphone outputs |
1 |
| DC-in jack |
Yes |
| Connectivity technology |
Wired |
| Network |
|---|
| Full duplex |
Yes |
| Auto MDI/MDI-X |
Yes |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports |
1 |
| Performance |
|---|
| UASP support |
Yes |
| Maximum digital resolution |
4096 x 2160 pixels |
| Full duplex |
Yes |
| Auto MDI/MDI-X |
Yes |
| On/off switch |
Yes |
| Product colour |
Black, Silver |
| Card reader integrated |
No |
| Brand compatibility |
Any brand |
| Cable lock slot |
Yes |
| Data transfer rate |
5 Gbit/s |
| Certification |
CE, FCC, TAA, REACH |
| Housing material |
Plastic |
| Technical details |
|---|
| Product colour |
Black, Silver |
| Brand compatibility |
Any brand |
| Cable lock slot |
Yes |
| Data transfer rate |
5 Gbit/s |
| Compliance certificates |
RoHS |
| Products per master (outer) case |
10 pc(s) |
| Master (outer) case width |
12.5" (318 mm) |
| Master (outer) case length |
14.6" (370 mm) |
| Master (outer) case height |
15" (382 mm) |
| Storage |
|---|
| Card reader integrated |
No |
| Power |
|---|
| Input current |
2 A |
| Power plug type |
Type N |
| Compatible power plug types |
AU, JP |
| AC input voltage |
100 - 240 V |
| Output voltage |
20 V |
| Output current |
6 A |
| Power supply |
60 W |
| Software |
|---|
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 |
| Mac operating systems supported |
Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura |
| Mac compatibility |
Yes |
| Other operating systems supported |
ChromeOS |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 60 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Weight & dimensions |
|---|
| Weight |
13.6 oz (385 g) |
| Width |
3.23" (82 mm) |
| Depth |
10.6" (270 mm) |
| Height |
1.34" (34 mm) |
| Package weight |
3.09 lbs (1.4 kg) |
| Package width |
6.34" (161 mm) |
| Package depth |
11.7" (296 mm) |
| Package height |
2.8" (71 mm) |
| Design |
|---|
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 |
| Mac operating systems supported |
Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura |
| Product colour |
Black, Silver |
| Cable lock slot |
Yes |
| Certification |
CE, FCC, TAA, REACH |
| Packaging data |
|---|
| Package weight |
3.09 lbs (1.4 kg) |
| Package width |
6.34" (161 mm) |
| Package depth |
11.7" (296 mm) |
| Package height |
2.8" (71 mm) |

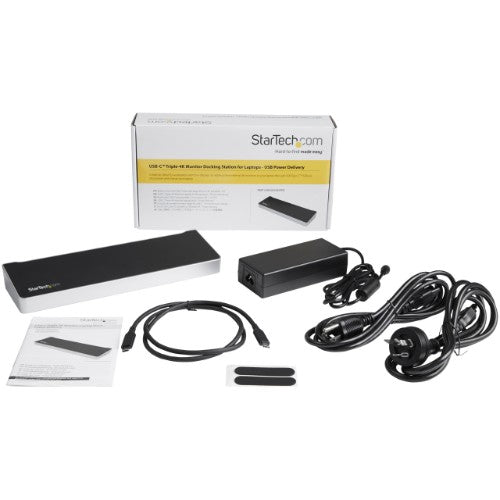

| Packaging content |
|---|
| Manual |
Yes |
| Cables included |
USB Type-C |
| AC adapter included |
Yes |
| Certificates |
|---|
| Certification |
CE, FCC, TAA, REACH |
| Logistics data |
|---|
| Products per master (outer) case |
10 pc(s) |
| Master (outer) case width |
12.5" (318 mm) |
| Master (outer) case length |
14.6" (370 mm) |
| Master (outer) case height |
15" (382 mm) |
| Other features |
|---|
| Number of microphone inputs |
1 |
| Chipset |
DisplayLink - DL-6950, Genesys Logic - GL3523, Texas Instruments - TPS65982, Parade Technologies - PS176 |
