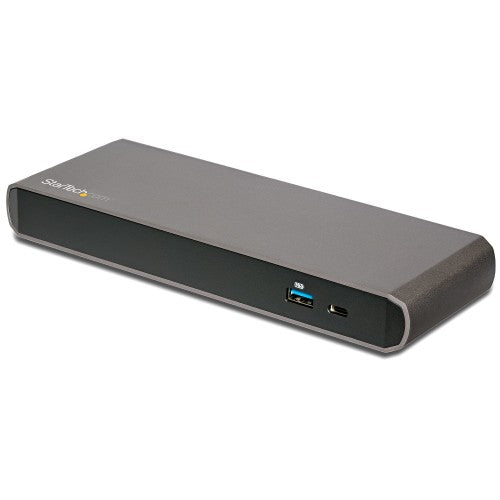

StarTech.com Thunderbolt 3 Dock, Dual Monitor 4K 60Hz TB3 Laptop Docking Station, DisplayPort, 85W PD, 3x USB, GbE - REPLACED BY TB3CDK2DH
Key Features
- NEW VERSION AVAILABLE: Replaced by TB3CDK2DH; Driverless setup for plug-and-play installation; 40Gbps video/data bandwidth; Dual monitor 4K 60Hz; USB Power Delivery, DisplayPort, USB 3.2 Gen 1 (5Gbps) Hub, Gigabit Ethernet, 3.5mm headset port
- 85W POWER DELIVERY: This Thunderbolt 3 Docking Station will power and charge laptops & ultrabooks such as MacBook Pro 13 & 16, MacBook Air, HP, Lenovo ThinkPad, & Dell XPS using macOS and Windows.
- COMPATIBILITY: This docking station is compatible with Windows, macOS, and Ubuntu; Supports Thunderbolt or USB4 laptops; Dual Display on M1, M2, M3 Max/Pro, M4 Pro/Max MacBooks, and single display on base M-series MacBooks and iPad Pro M1 & later
- FLEXIBLE THUNDERBOLT 3 PORT: Thunderbolt 3 port replicator w/ a downstream TB3 port that supports 3 modes of operation: a second monitor, daisychain TB3 peripherals, or connect USB Type-C accessories
- DAISYCHAIN UP TO 5 THUNDERBOLT 3 DEVICES: Connect additional TB3 devices to this TB3 dock including monitors, external hard drive bays, card readers, or an external GPU; using the downstream TB3 port.
Description
Laptop Docking Station | Mac & Windows® | USB-C to DP Cable | 85W PD
Easily transform your Thunderbolt 3™ equipped MacBook Pro or Windows laptop into a dual-4K workstation with up to 40Gbps of throughput. The high-quality TB3 dock features three USB 3.0 ports, 85W Power Delivery to charge your laptop.

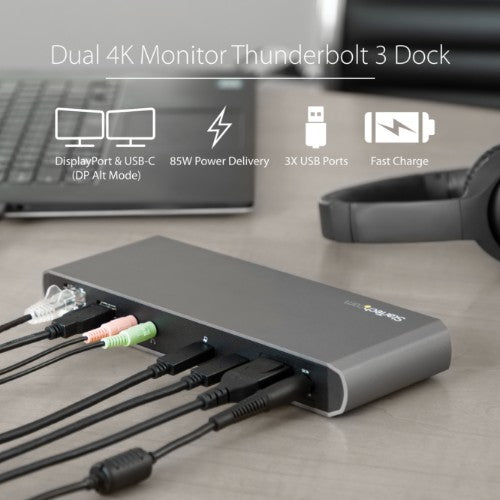

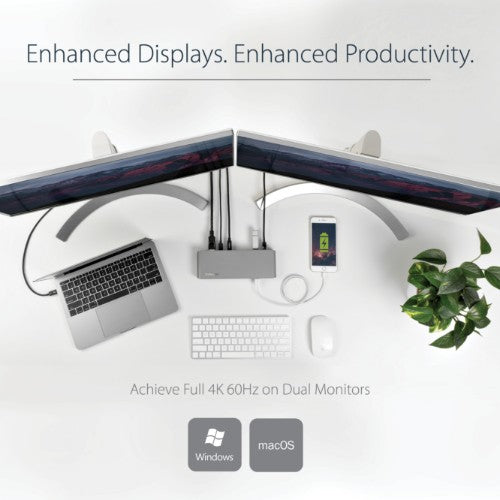

Create a Dual-4K Workstation
Great for video editing and other Ultra HD tasks, this dual-4K monitor docking station supports 40Gbps speeds and 4K resolution on two monitors. Run resource-demanding applications on two independent displays, without draining system resources.
Connect your laptop to:
• 1 x 4K monitor via the DP Port
• 1 x 4K monitor via the TB3 USB-C Port (1.8 m cable included)
OR
• 1 x 5K monitor via the DP & TB3 USB-C port
Easy Installation & Deployment
Simply connect the TB3 dock to your laptop with included TB3 cable and start working immediately. No time-consuming driver installations are required.

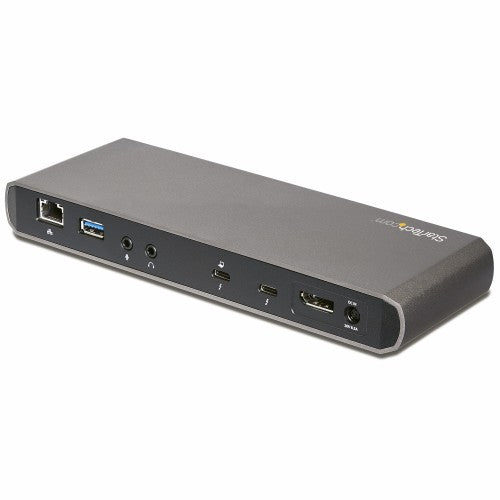

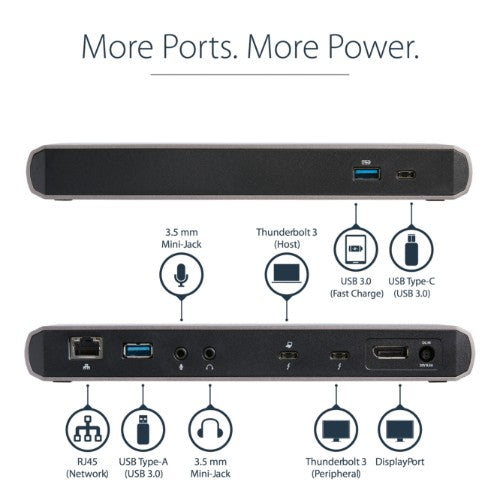

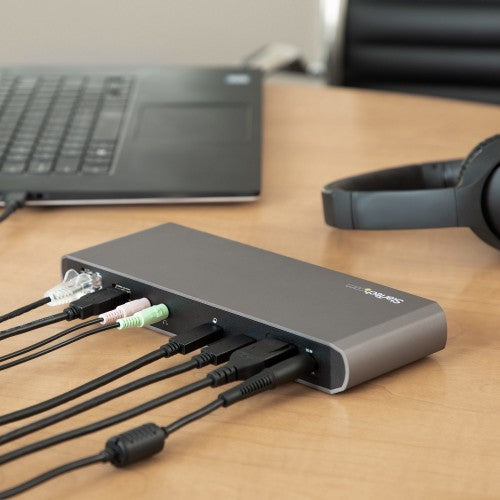

Connect your Devices
With three USB 3.0 ports, the Thunderbolt 3 docking station gives you plenty of ports for the latest and legacy devices. Connect USB devices like flash drives using the two Type-A ports. Keep your mobile device charged with the dock's Fast-Charge and sync port. Connect a USB-C device with the USB-C port ( 5Gbps - data only ).
Plenty of Charging Power
The Thunderbolt 3 docking station features a 170W power adapter supporting Power Delivery to power and charge (up to 85W) your laptop, while powering all your devices connected to the dock. This eliminates the need to use two separate power adapters for your laptop and dock.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
•
Advanced Windows Layout Utility : To setup and save custom windows layouts.
•
Mac Address Pass-Through Utility : To improve network security.
•
USB Event Monitoring Utility : To track and log connected USB devices
•
Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools
TB3DK2DPPD features a rugged aluminum casing and is backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
Specifications
| Ports & interfaces |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| Thunderbolt 3 ports quantity |
2 |
| Host interface |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity |
0 |
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI ports quantity |
0 |
| DisplayPorts quantity |
1 |
| Microphone in |
Yes |
| Headphone outputs |
1 |
| DC-in jack |
Yes |
| Connectivity technology |
Wired |
| USB Power Delivery (USB PD) |
Yes |
| USB Power Delivery up to |
85 W |
| Network |
|---|
| Full duplex |
Yes |
| Auto MDI/MDI-X |
Yes |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports |
1 |
| Performance |
|---|
| UASP support |
Yes |
| Maximum digital resolution |
4096 x 2160 pixels |
| Full duplex |
Yes |
| Auto MDI/MDI-X |
Yes |
| Number of displays supported |
2 |
| Product colour |
Black, Gray |
| Card reader integrated |
No |
| Brand compatibility |
Any brand |
| Data transfer rate |
40 Gbit/s |
| Charging function |
Yes |
| Certification |
CE, FCC, REACH |
| Housing material |
Aluminum, Plastic |
| USB data transfer rates |
480,5000 Mbit/s |
| Technical details |
|---|
| Product colour |
Black, Gray |
| Brand compatibility |
Any brand |
| Data transfer rate |
40 Gbit/s |
| Charging function |
Yes |
| Cable length |
20.5" (0.52 m) |
| Compliance certificates |
RoHS |
| Products per master (outer) case |
4 pc(s) |
| Master (outer) case width |
9.84" (250 mm) |
| Master (outer) case length |
14" (355 mm) |
| Master (outer) case height |
6.89" (175 mm) |
| Storage |
|---|
| Card reader integrated |
No |
| Power |
|---|
| Input current |
2.5 A |
| Compatible power plug types |
AU, JP, US |
| AC input voltage |
100 - 240 V |
| Power supply type |
External |
| Power consumption (typical) |
170 W |
| Output voltage |
20 V |
| Output current |
8.5 A |
| Software |
|---|
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Mac operating systems supported |
Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 13.0 Ventura |
| Mac compatibility |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
5 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Weight & dimensions |
|---|
| Weight |
15.9 oz (450 g) |
| Width |
3.15" (80 mm) |
| Depth |
8.66" (220 mm) |
| Height |
1.06" (27 mm) |
| Package weight |
3.31 lbs (1.5 kg) |
| Package width |
5.83" (148 mm) |
| Package depth |
9.76" (248 mm) |
| Package height |
3.46" (88 mm) |
| Design |
|---|
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Mac operating systems supported |
Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 13.0 Ventura |
| Product colour |
Black, Gray |
| Certification |
CE, FCC, REACH |
| Packaging data |
|---|
| Package weight |
3.31 lbs (1.5 kg) |
| Package width |
5.83" (148 mm) |
| Package depth |
9.76" (248 mm) |
| Package height |
3.46" (88 mm) |

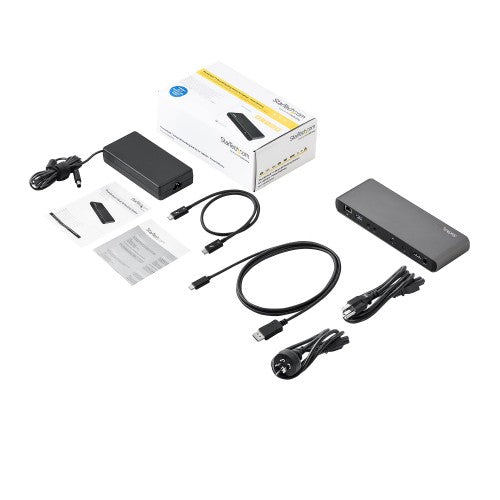

| Packaging content |
|---|
| Manual |
Yes |
| Cables included |
AC, Thunderbolt, USB Type-C |
| AC adapter included |
Yes |
| Certificates |
|---|
| Certification |
CE, FCC, REACH |
| Logistics data |
|---|
| Products per master (outer) case |
4 pc(s) |
| Master (outer) case width |
9.84" (250 mm) |
| Master (outer) case length |
14" (355 mm) |
| Master (outer) case height |
6.89" (175 mm) |
| Other features |
|---|
| USB data transfer rates |
480,5000 Mbit/s |
| Power supply type |
External |
| Chipset |
Intel - Alpine Ridge DSL6540, Fresco - FL1100EX, Texas Instruments - PCM2912A, Intel - WGI210AT, Texas Instruments - TPS65983 |
| Cable length |
20.5" (0.52 m) |
