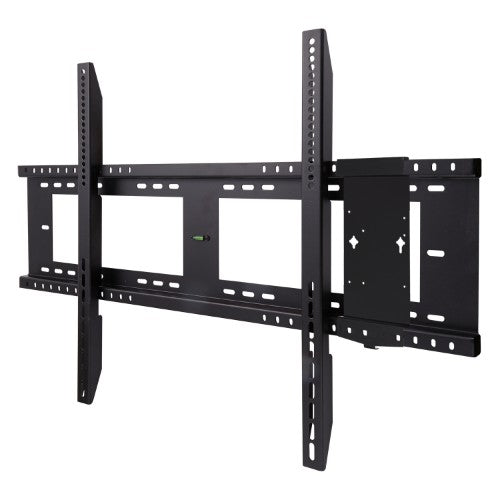

VESA 900 x 600, 91 Kg max, mini PC bracket, Black
Description
Commercial display wall mount 200x200, 200x400, 200x600, 400x200, 400x400, 400x600, 600x200, 600x400, 600x600, 800x200, 800x400, 800x600, 900x200, 900x400, 900x600 up to 200lbs with mini PC bracket.
Specifications
| Mounting |
|---|
| Maximum weight capacity |
200.6 lbs (91 kg) |
| Panel mounting interface |
200 x 200,200 x 400,200 x 600,400 x 200,400 x 400,400 x 600,600 x 200,600 x 400,600 x 600,800 x 200,800 x 400,800 x 600,900 x 600 |
| Number of displays supported |
1 |
| Mounting type |
Wall |
| Minimum VESA mount |
7.87 x 7.87" (200 x 200 mm) |
| Maximum VESA mount |
35.4 x 23.6" (900 x 600 mm) |
| Ergonomics |
|---|
| Distance to the wall (min) |
1.81" (4.6 cm) |
| Distance to the wall (max) |
1.81" (4.6 cm) |
| Design |
|---|
| Product colour |
Black |
| Weight & dimensions |
|---|
| Width |
37.8" (960 mm) |
| Depth |
1.81" (46 mm) |
| Height |
25.6" (650 mm) |
| Weight |
14.1 lbs (6.39 kg) |
| Package width |
40" (1015 mm) |
| Package depth |
11.2" (285 mm) |
| Package height |
2.56" (65 mm) |
| Package weight |
15.4 lbs (6.99 kg) |
| Packaging data |
|---|
| Package width |
40" (1015 mm) |
| Package depth |
11.2" (285 mm) |
| Package height |
2.56" (65 mm) |
| Package weight |
15.4 lbs (6.99 kg) |
| Packaging content |
|---|
| Washers included |
Yes |
| Screws included |
Yes |
| Number of washers included |
10 |
| Number of screws |
29 |
| Technical details |
|---|
| Number of displays supported |
1 |
| Mounting type |
Wall |
| Distance to the wall (min) |
1.81" (4.6 cm) |
| Distance to the wall (max) |
1.81" (4.6 cm) |
