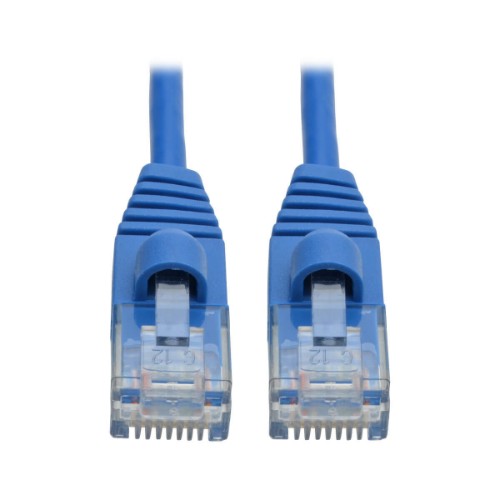

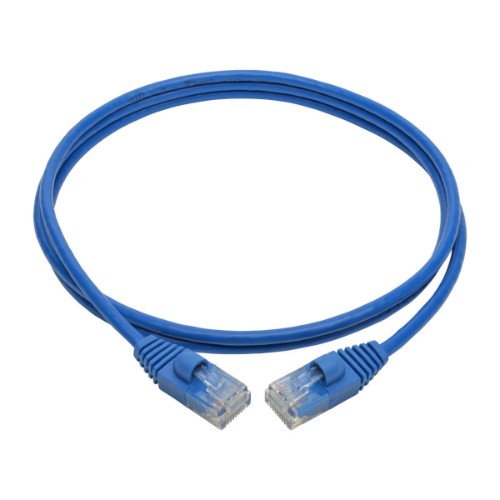

Cat6a 10G Snagless Molded Slim UTP Ethernet Cable (RJ45 M/M), Blue, 4 ft. (1.22 m)
Key Features
- Over 38% slimmer than standard Cat6a cables
- Easy to route through cable management panels
- Supports Ethernet speeds up to 10 Gbps

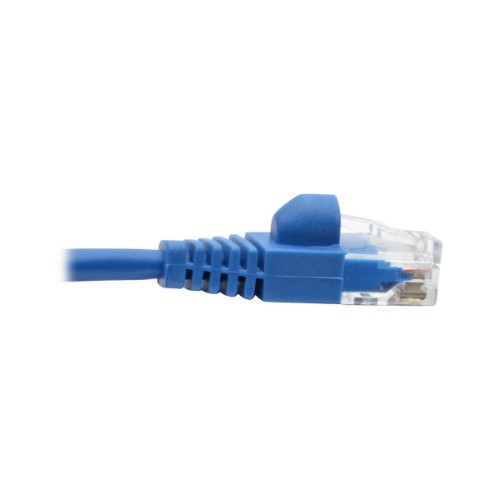

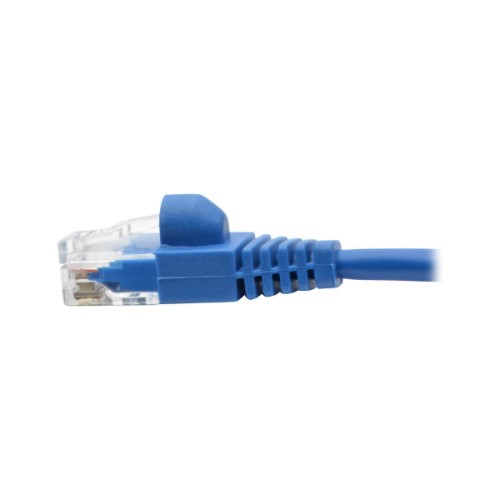

- Snagless RJ45 design protects tabs from damage
- High-quality 28 AWG stranded copper wire
Description
The N261-S04-BL Cat6a 10G Snagless Molded Slim UTP Network Patch Cable (M/M) is ideal for connecting network components like computers, servers, routers, printers, patch panels and switches in high-density data centers. Designed for fast transmission and excellent signal quality, this 4-ft. (1.22 m) blue cable ensures peak performance throughout your local area network (LAN).
Manufactured from 28 AWG copper wire, the four-pair stranded UTP N261-S04-BL delivers Ethernet speeds up to 10 Gbps. Protected by a PVC jacket, this cable is more than 38% smaller in diameter than standard Cat6a cable, which increases airflow in tight spaces and makes it easier to install around corners and through cable management panels.

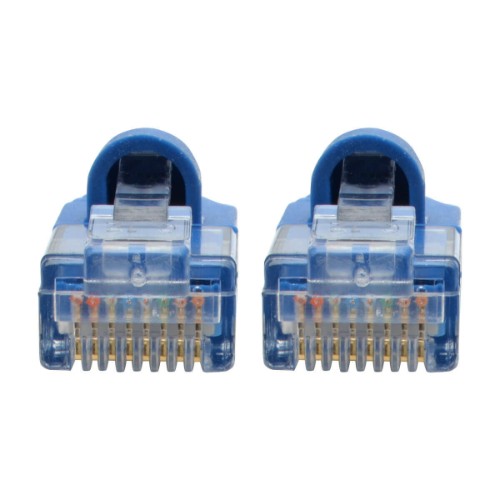

RJ45 male connectors are conducive to an accurate signal transfer, improving near-end crosstalk (NeXT) performance to 500 MHz. The snagless design protects the locking tabs against being damaged or broken off during installation. Integral strain relief gives the cable extra flexibility, reduces stress, and helps the cable and connectors move freely without cracking.
Each cable has been tested and certified using Fluke® test equipment. It supports IEEE 802.3af, is DTE power compliant and is compatible with T568A/T568B wiring.
Specifications
| Features |
|---|
| Product colour |
Blue |
| Snagless cable boot |
Yes |
| Country of origin |
China |
| AWG wire size |
28 |
| Cable standard |
Cat6a |
| Cable shielding |
U/UTP (UTP) |
| Connector 1 |
RJ-45 |
| Connector 2 |
RJ-45 |
| Cabling technology |
10/100/1000Base-T(X) |
| Data transfer rate |
10000 Mbit/s |
| Networking standards |
IEEE 802.3af |
| Jacket material |
Polyvinyl chloride (PVC) |
| Cable length |
47.2" (1.2 m) |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Harmonized System (HS) code |
8544.42.2000 |
| Certificates |
|---|
| Compliance certificates |
RoHS |
| Packaging data |
|---|
| Package width |
7" (177.8 mm) |
| Package depth |
9" (228.6 mm) |
| Package height |
0.5" (12.7 mm) |
| Package weight |
3.17 oz (90 g) |
| Technical details |
|---|
| Product colour |
Blue |
| Cable standard |
Cat6a |
| Cable shielding |
U/UTP (UTP) |
| Connector 1 |
RJ-45 |
| Connector 2 |
RJ-45 |
| Cabling technology |
10/100/1000Base-T(X) |
| Data transfer rate |
10000 Mbit/s |
| Networking standards |
IEEE 802.3af |
| Jacket material |
Polyvinyl chloride (PVC) |
| Cable length |
47.2" (1.2 m) |
| Country of origin |
China |
| Compliance certificates |
RoHS |
| Other features |
|---|
| Master (outer) case GTIN (EAN/UPC) |
10037332203875 |
| Logistics data |
|---|
| Master (outer) case gross weight |
28.9 oz (820 g) |
| Products per master (outer) case |
10 pc(s) |
| Master (outer) case width |
16" (406.4 mm) |
| Master (outer) case length |
18" (457.2 mm) |
| Master (outer) case height |
1" (25.4 mm) |
| Master (outer) case GTIN (EAN/UPC) |
10037332203875 |
| Harmonized System (HS) code |
8544.42.2000 |
