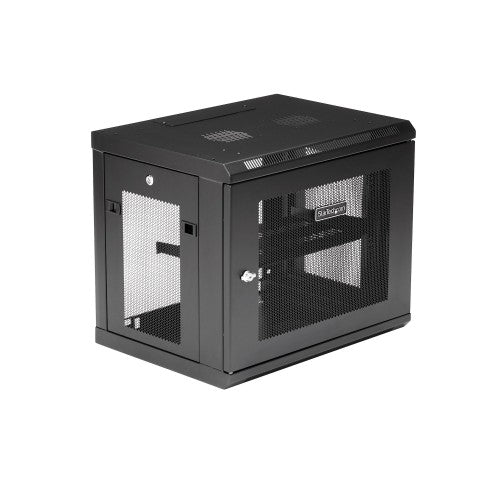

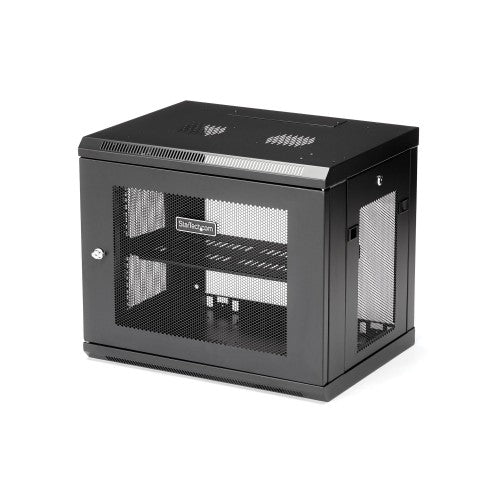

StarTech.com 2-Post 9U Wall Mount Network Cabinet w/ 1U Shelf, 19" Wall-Mounted Server Rack Kit for IT / Data Computer Equipment, Ships Fully Assembled
Key Features
- 2-Post 9U RACK CABINET: Wall-Mount Server Rack with a maximum mounting depth of 15.0" (38.0cm) is ideal for installing network switches, patch panels and other rackmount equipment in your warehouse, home / office, store location or server room
- EASY ACCESS: Wall-mount data rack features an enclosed and lockable rack design with easy access to the rear of the mounted devices; Small locking server cabinet with reversible and removable front door and removable side panels
- BUILT TO LAST: The 9U wall-mounted network cabinet is constructed of high-quality SPCC cold-rolled steel for strength and durability with a maximum weight capacity of 198lb (90kg)

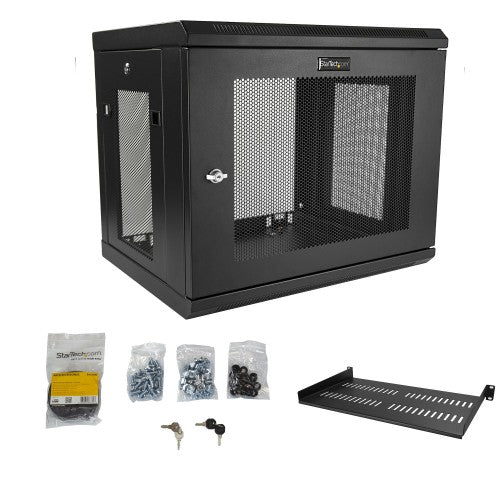

- FULLY ASSEMBLED: Swinging network cabinet ships fully assembled with all of the rack screws and cage nuts required to mount your equipment; Includes a shelf and a roll of hook-and-loop fastener; Wall-mount equipment cabinet is EIA/ECA-310-E Compliant
- DESIGNED FOR COOLING: Vented IT rack enclosure features mesh front doors and side panels for passive airflow and supports active cooling with up to four optional 120mm fans (e.g., ACFANKIT12 – available in US/CA only)
Description
Use this wall mount network cabinet to mount your equipment to the wall
This 9U server rack cabinet lets you mount your EIA-310 compliant equipment to the wall. The enclosure features an adjustable mounting depth from 6 to 15 in. and offers a maximum load capacity of 200 lb. (90 kg).
Save space in your office or server room
Save valuable floor space, by wall-mounting the enclosure. The wall-mounted design makes this enclosure the ideal solution for optimizing equipment storage in your classroom, retail store, server room or office. This rack also includes a 1U shelf that gives you a stable surface for storing your tools or placing equipment that's not rack-mountable.
Easily install your servers and network equipment

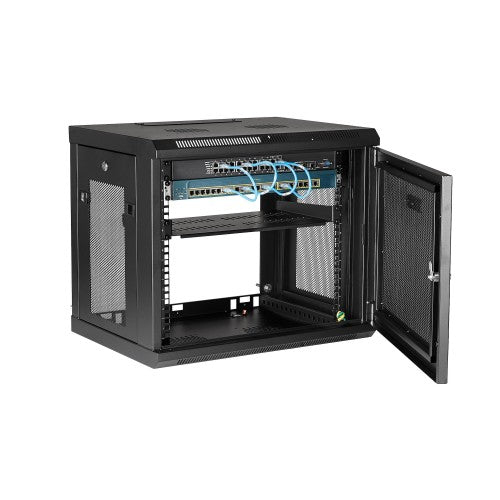

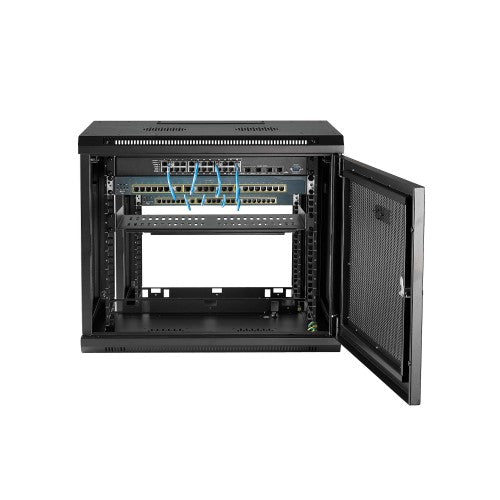

The wall-mount network rack makes it easy to install your equipment, with 2-post mounting rails that can be positioned to create more room at the front or the back of the enclosure depending on your requirements.

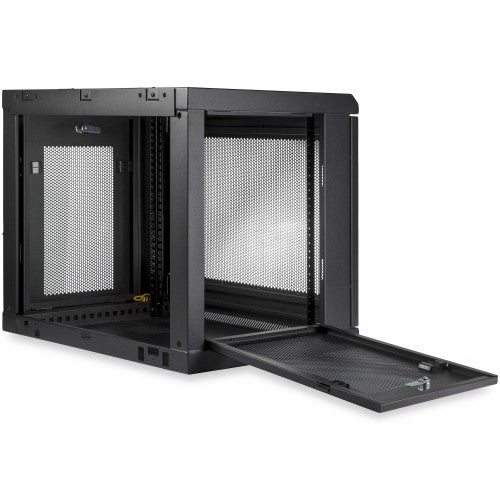

The 9U network cabinet features a removable and reversible front door and removable side panels, each with quick-release mechanisms, so you can easily access your equipment. Plus, each door and panel on this rack features an independent lock, ensuring your equipment is secure. The wall-mount server rack also includes all of the cage nuts and mounting screws you'll need to fill the rack with equipment, saving you the time, hassle and cost of sourcing mounting hardware.
For hassle-free cable management, the rack includes a 3-meter roll of hook-and-loop cable tie that makes it easy to keep your cables neat and tidy by binding them together or binding them to the rack. The self-gripping fabric can be cut to any size, enabling a wrap-around solution for the cables of any rack-mount equipment.
Securely protect your equipment
This server rack enclosure features heavy-duty steel construction, with lockable doors at all entrances. For hassle-free equipment installation, the mounting rails on the rack can be switched for use with square holes and cage nuts, or tapped rails.
To ensure your equipment is running at an optimal temperature, the server rack/cabinet promotes passive cooling. It features mesh doors and vented top and bottom panels for maximum airflow.
For simple and sturdy mounting, the rack's mounting holes are positioned 16 in. apart, so you can securely attach it to a wall using wall studs.
Specifications
| Weight & dimensions |
|---|
| Package depth |
20.9" (530 mm) |
| Package width |
26.4" (670 mm) |
| Package height |
22.8" (580 mm) |
| Package weight |
45.9 lbs (20.8 kg) |
| Inner width |
23.4" (59.4 cm) |
| Inner depth |
17" (43.3 cm) |
| Mounting depth (max) |
14.6" (37 cm) |
| Width |
23.6" (600 mm) |
| Depth |
17.7" (450 mm) |
| Height |
20.1" (511 mm) |
| Weight |
39 lbs (17.7 kg) |
| Maximum weight capacity |
198.4 lbs (90 kg) |
| Packaging content |
|---|
| Wall mounting kit |
Yes |
| Manual |
Yes |
| Nuts included |
Yes |
| Number of nuts |
36 |
| Screws included |
Yes |
| Number of screws |
36 |
| Features |
|---|
| Key lock |
Yes |
| Frame type |
Closed |
| Product design |
2-post |
| Rack capacity |
9U |
| Adjustable mounting rails |
Yes |
| Removable front door |
Yes |
| Back door construction |
Steel |
| Front door construction |
Steel |
| Cable management |
Yes |
| Mounting hole shape |
Square |
| Front door key lock |
Yes |
| Type |
Wall mounted rack |
| Maximum weight capacity |
198.4 lbs (90 kg) |
| Material |
Steel |
| Product colour |
Black |
| Certification |
CE, REACH |
| Assembly required |
No |
| Packaging data |
|---|
| Wall mounting kit |
Yes |
| Manual |
Yes |
| Nuts included |
Yes |
| Number of nuts |
36 |
| Package depth |
20.9" (530 mm) |
| Package width |
26.4" (670 mm) |
| Package height |
22.8" (580 mm) |
| Package weight |
45.9 lbs (20.8 kg) |
| Screws included |
Yes |
| Number of screws |
36 |
| Technical details |
|---|
| Package width |
26.4" (670 mm) |
| Package height |
22.8" (580 mm) |
| Type |
Wall mounted rack |
| Compliance industry standards |
EIA/ECA-310-E |
| Harmonized System (HS) code |
85381000 |
| Compliance certificates |
RoHS |
| Rack capacity |
9U |
| Colour |
|---|
| Product colour |
Black |
| Certificates |
|---|
| Certification |
CE, REACH |
| Material |
|---|
| Material |
Steel |
| Logistics data |
|---|
| Master (outer) case width |
26.4" (670 mm) |
| Master (outer) case length |
20.9" (530 mm) |
| Master (outer) case height |
22.8" (580 mm) |
| Products per master (outer) case |
1 pc(s) |
| Harmonized System (HS) code |
85381000 |
| Other features |
|---|
| Compliance industry standards |
EIA/ECA-310-E |
