StarTech.com 4-Post 18U Wall Mount Network Cabinet w/ 1U Shelf, 19" Wall-Mounted Server Rack Kit for IT / Data Computer Equipment, Ships Fully Assembled
Key Features
- 4-POST 18U RACK CABINET: Wall-Mount Server Rack w/ adjustable mounting depth 2.4" to 16" (6.0cm to 40.6cm) is ideal for installing network switches, patch panels and other rackmount equipment in your warehouse, home / office, store location or server room
- EASY ACCESS: Wall-mount data rack features a 180° hinged, enclosed and lockable rack design with easy access to the rear of the mounted devices; Flexible locking server cabinet with reversible and removable front door and removable side panels
- BUILT TO LAST: The 18U wall-mounted network cabinet offers a 4 post design for additional support of your equipment; Constructed of high-quality SPCC cold-rolled steel for strength and durability with a maximum weight capacity of 198lb (90kg)

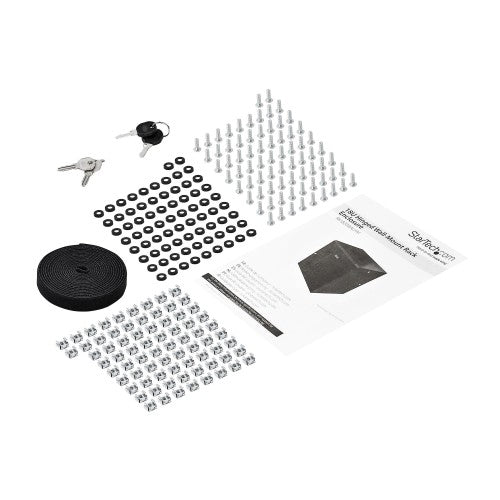

- FULLY ASSEMBLED: Swinging network cabinet ships fully assembled with all of the rack screws and cage nuts required to mount your equipment; Includes a shelf and a roll of hook-and-loop fastener; Wall-mount equipment cabinet is EIA/ECA-310-E Compliant
- DESIGNED FOR COOLING: Vented IT rack enclosure features mesh front doors and side panels for passive airflow and supports active cooling with up to four optional 120mm fans (e.g., ACFANKIT12 – available in US/CA only)
Description
IT Cabinet | 16” Deep | EIA-310 | 4 Post | Weight Cap. 200 lbs. | Lockable | Assembled
This feature-rich 18U server room rack cabinet is ideal for optimizing equipment storage in network closets edge centers and technology shops with limited space, where there is a need for mountable equipment. It features adjustable mounting rails, mesh doors and panels as well as options for active cooling.

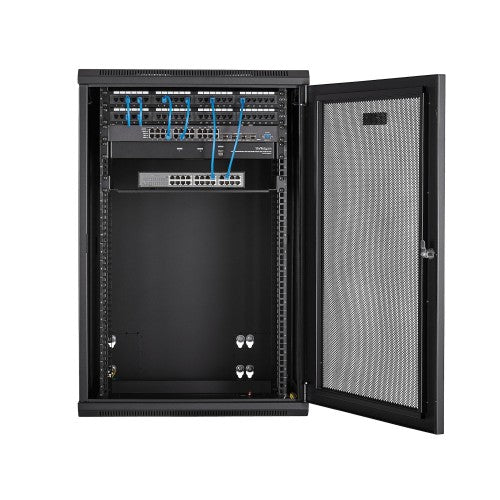

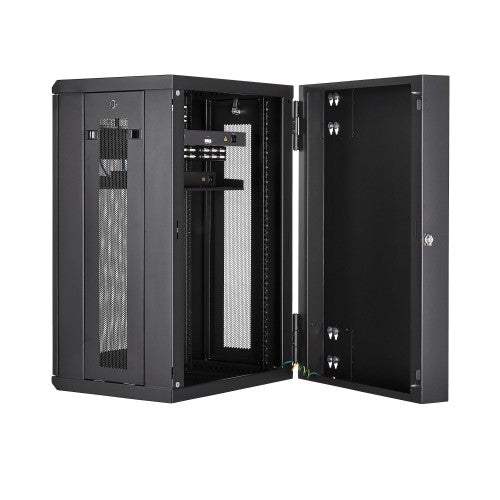

You can access your equipment and cabling from all four sides of this data center rack including the back with a rear hinge that swings the enclosure away from the wall.
Premium Equipment Protection
This wall mount equipment rack features premium-quality steel construction, with secure lockable front and back doors as well as lockable side panels. It features a grounding lug to prevent the build-up of static electricity which can result in electrostatic discharge (ESD), keeping your equipment protected from surges.
This rack also offers dependable protection through both passive and active cooling. The mesh front doors and side panels along with the vents in the top offer passive cooling while the top offers placement support for 120mm fan mounts for an additional active cooling option.
Mount All Types of Equipment

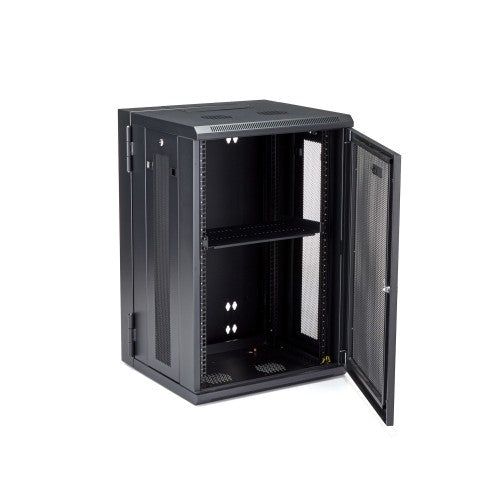

This 4-post server room cabinet has a weight capacity of up to 200 lbs. (90kg) and with a mounting depth from 2 to 16 inches, it can hold a variety of equipment. The mounting rails on the rack can be switched between both square cage nut hole or tapped 12-24 threaded hole styles. For non-mountable equipment, this rack also includes a 1U shelf.
For hassle-free cable management, the rack includes a 3-meter roll of hook-and-loop cable tie that makes it easy to keep your cables neat and tidy by binding them together or binding them to the rack. The self-gripping fabric can be cut to any size, enabling a wrap-around solution for the cables of any rack-mount equipment.
Comprehensive Product Testing & Expert Technical Support
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to our customers. Our local StarTech.com Technical Advisors have broad product expertise and work directly with StarTech.com Engineers to provide support for our customers both pre and post-sales.
Specifications
| Weight & dimensions |
|---|
| Package depth |
23.6" (600 mm) |
| Package width |
25.2" (640 mm) |
| Package height |
40.9" (1040 mm) |
| Package weight |
151.5 lbs (68.7 kg) |
| Inner width |
23.5" (59.7 cm) |
| Inner depth |
21.7" (55 cm) |
| Mounting depth (max) |
16" (40.6 cm) |
| Mounting depth (min) |
2.36" (6 cm) |
| Width |
24" (610 mm) |
| Depth |
21.7" (551 mm) |
| Height |
35.6" (904 mm) |
| Weight |
149.3 lbs (67.7 kg) |
| Maximum weight capacity |
198.4 lbs (90 kg) |
| Packaging content |
|---|
| Manual |
Yes |
| Nuts included |
Yes |
| Number of nuts |
75 |
| Screws included |
Yes |
| Number of screws |
75 |
| Features |
|---|
| Frame type |
Closed |
| Product design |
4-post |
| Rack capacity |
18U |
| Adjustable mounting rails |
Yes |
| Removable front door |
Yes |
| Back door construction |
Steel |
| Front door construction |
Steel |
| Mounting hole shape |
Square |
| Front door key lock |
Yes |
| Type |
Wall mounted rack |
| Maximum weight capacity |
198.4 lbs (90 kg) |
| Material |
Steel |
| Product colour |
Black |
| Packaging data |
|---|
| Manual |
Yes |
| Nuts included |
Yes |
| Number of nuts |
75 |
| Package depth |
23.6" (600 mm) |
| Package width |
25.2" (640 mm) |
| Package height |
40.9" (1040 mm) |
| Package weight |
151.5 lbs (68.7 kg) |
| Screws included |
Yes |
| Number of screws |
75 |
| Technical details |
|---|
| Package width |
25.2" (640 mm) |
| Package height |
40.9" (1040 mm) |
| Type |
Wall mounted rack |
| Compliance industry standards |
EIA/ECA-310-E |
| Harmonized System (HS) code |
85381000 |
| Compliance certificates |
CE, RoHS |
| Rack capacity |
18U |
| Colour |
|---|
| Product colour |
Black |
| Material |
|---|
| Material |
Steel |
| Logistics data |
|---|
| Master (outer) case width |
46.5" (1180 mm) |
| Master (outer) case length |
29.3" (745 mm) |
| Master (outer) case height |
23.6" (600 mm) |
| Products per master (outer) case |
1 pc(s) |
| Harmonized System (HS) code |
85381000 |
| Other features |
|---|
| Compliance industry standards |
EIA/ECA-310-E |
