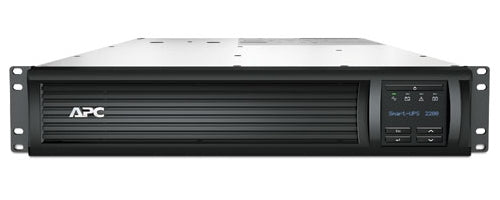

2.2kVA, 1.82kW, 154V, 530J, 480x683x86mm, 42.31kg, Black
Description
Peace of mind that comes with full equipment compatibility and reliability of a leaderProvides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.
Avoids costly power problems by keeping your IT equipment and data safe and availableNetwork grade power conditioning protects from damaging surges and disruptive noise. Solid state automatic voltage regulation boosts low input voltage up to 30% and trims high voltage up to 12% without battery operation. Reliable battery back-up capacity to power through outages or gracefully shutdown systems
Low operating and maintenance costs with high efficiency, proven reliability and intelligent battery managementPatented green operating mode achieves efficiencies over 97%. Smart-ups was the first network UPS to be Energy Star certified. Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Dynamic battery replacement date indicator and automatic self tests insure battery reliability and warn in advance of needing replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down. Designed and manufactured by APC for over 23 years, Smart-UPS is the world’s most trusted network UPS with over 25 million units sold.
Save time with easy and convenient remote accessibilityNetwork manageable via serial, USB or optional ethernet. Includes Powerchute Business Edition Software for convenient monitoring and control, safe operating system shutdown and innovative energy management capabilities.
Smarter productivity with ability to tailor to your specific application needsIntuitive LCD interface provides clear information with the ability to configure the UPS locally with easy to use navigation keys. Over 15 different programmable settings including switched outlet group control allow for application specific settings, thresholds and notifications.
Specifications
| Power |
|---|
| Output frequency |
50/60 Hz |
| Output power |
1920 W |
| Input operation voltage (min) |
75 V |
| Input operation voltage (max) |
154 V |
| Output operation voltage (max) |
120 V |
| Surge energy rating |
530 J |
| Emergency Power Off (EPO) |
Yes |
| Output voltage Total Harmonic Distortion (THD) |
5% |
| Output power capacity |
2.2 kVA |
| Ports & interfaces |
|---|
| Cable length |
96.1" (2.44 m) |
| SmartSlot |
Yes |
| AC outlets quantity |
8 AC outlet(s) |
| AC outlet types |
NEMA 5-15R, NEMA 5–20R |
| Power plug |
NEMA 5-20P |
| Performance |
|---|
| Audible alarm modes |
Alarm when on battery, Low battery alarm, Overload alarm |
| UPS topology |
Line-Interactive |
| Waveform |
Sine |
| Auto-restart |
Yes |
| Automatic Voltage Regulation (AVR) |
Yes |
| LED indicators |
Yes |
| Noise level |
55 dB |
| Audible alarm(s) |
Yes |
| Features |
|---|
| Output frequency |
50/60 Hz |
| Web-based management |
Yes |
| Audible alarm modes |
Alarm when on battery, Low battery alarm, Overload alarm |
| UPS topology |
Line-Interactive |
| Waveform |
Sine |
| Auto-restart |
Yes |
| Automatic Voltage Regulation (AVR) |
Yes |
| Output power |
1920 W |
| Input operation voltage (min) |
75 V |
| Input operation voltage (max) |
154 V |
| Output operation voltage (max) |
120 V |
| Surge energy rating |
530 J |
| Emergency Power Off (EPO) |
Yes |
| Output voltage Total Harmonic Distortion (THD) |
5% |
| Noise level |
55 dB |
| Audible alarm(s) |
Yes |
| Output power capacity |
2.2 kVA |
| Battery |
|---|
| Battery life (max) |
5 year(s) |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Battery recharge time |
3 h |
| Hot-swap battery |
Yes |
| Cold start |
Yes |
| Automatic battery test |
Yes |
| Design |
|---|
| Rack capacity |
2U |
| Form factor |
Rackmount |
| LED indicators |
Yes |
| Product colour |
Black |
| Certification |
CSA, FCC Part 15 Class A, UL 1778, REACH |
| Cable length |
96.1" (2.44 m) |
| Display type |
LED |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-15 - 45 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 118110.2" (0 - 3000 m) |
| Non-operating altitude |
0 - 590551.2" (0 - 15000 m) |
| Technical details |
|---|
| Output frequency |
50/60 Hz |
| Sustainability certificates |
ENERGY STAR |
| Compliance certificates |
RoHS |
| Management features |
|---|
| Web-based management |
Yes |
| Weight & dimensions |
|---|
| Package width |
23.6" (600 mm) |
| Package depth |
38.6" (980 mm) |
| Package height |
10" (254 mm) |
| Weight |
93.3 lbs (42.3 kg) |
| Width |
18.9" (480 mm) |
| Package weight |
109.6 lbs (49.7 kg) |
| Height |
3.39" (86 mm) |
| Depth |
26.9" (683 mm) |
| Packaging data |
|---|
| Package width |
23.6" (600 mm) |
| Package depth |
38.6" (980 mm) |
| Package height |
10" (254 mm) |
| Package weight |
109.6 lbs (49.7 kg) |
| Logistics data |
|---|
| Products per pallet |
8 pc(s) |
| Certificates |
|---|
| Certification |
CSA, FCC Part 15 Class A, UL 1778, REACH |
