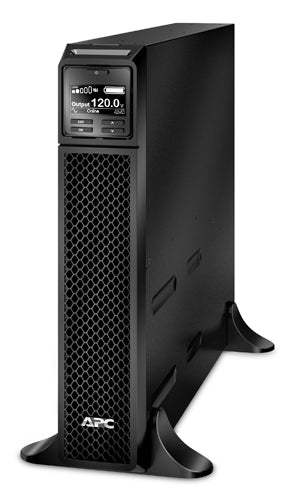

Smart-UPS On-Line, 1000VA, Tower, 120V, 6x 5-15R NEMA outlets, SmartSlot, Extended runtime, W/O rail kit
Description
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 1000VA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 6x NEMA 5-15R outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. This On-Line UPS features Unity Power Factor for best-in-class power density. With 6 outlets and a compatibility with external battery packs, this server UPS provides uninterrupted and scalable battery power to connected electronics. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. Use the intuitive LCD interface and PowerChute Business software to configure settings and monitor usage. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTRK4 (4-post) and SRTRK3 (2-post) rail kits sold separately. A built-in energy meter measures energy use and displays UPS efficiency in various modes of operation for easy energy tracking. Two switchable outlet groups are included for individual load management. Predictive battery management provides an estimated date of when battery replacement is recommended. Package Contains UPS, CD with software, Communication cable, Documentation CD, Installation guide, Removable support feet, USB cable, Warranty card.
Specifications
| Power |
|---|
| Output frequency |
50/60 Hz |
| Output power |
900 W |
| Input operation voltage (min) |
50 V |
| Input operation voltage (max) |
150 V |
| Output operation voltage (max) |
120 V |
| Surge energy rating |
432 J |
| Emergency Power Off (EPO) |
Yes |
| Output voltage Total Harmonic Distortion (THD) |
2% |
| Crest factor |
3:1 |
| Output power capacity |
1 kVA |
| Input frequency |
40 - 70 Hz |
| Ports & interfaces |
|---|
| Cable length |
72" (1.83 m) |
| USB port |
Yes |
| Serial interface |
Yes |
| Serial interface type |
RJ-45 |
| SmartSlot |
Yes |
| AC outlets quantity |
6 AC outlet(s) |
| AC outlet types |
NEMA 5–15R |
| Power plug |
NEMA 5-15P |
| USB 2.0 ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| Performance |
|---|
| UPS topology |
Double-conversion (Online) |
| Waveform |
Sine |
| Auto-restart |
Yes |
| LED indicators |
Status |
| Noise level |
50 dB |
| Audible alarm(s) |
Yes |
| Features |
|---|
| Output frequency |
50/60 Hz |
| Web-based management |
Yes |
| UPS topology |
Double-conversion (Online) |
| Waveform |
Sine |
| Auto-restart |
Yes |
| Output power |
900 W |
| Input operation voltage (min) |
50 V |
| Input operation voltage (max) |
150 V |
| Output operation voltage (max) |
120 V |
| Surge energy rating |
432 J |
| Emergency Power Off (EPO) |
Yes |
| Output voltage Total Harmonic Distortion (THD) |
2% |
| Noise level |
50 dB |
| Crest factor |
3:1 |
| Audible alarm(s) |
Yes |
| Output power capacity |
1 kVA |
| Input frequency |
40 - 70 Hz |
| Battery |
|---|
| Battery life (max) |
5 year(s) |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Battery recharge time |
3 h |
| Hot-swap battery |
Yes |
| Cold start |
Yes |
| Design |
|---|
| International Protection (IP) code |
IP20 |
| Form factor |
Mini Tower |
| LED indicators |
Status |
| Product colour |
Black |
| Certification |
CSA C22.2 No.107.3-05, FCC Part 15 Class A, UL 1778 |
| Cable length |
72" (1.83 m) |
| Display type |
LCD |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 50 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 118110.2" (0 - 3000 m) |
| Non-operating altitude |
0 - 590551.2" (0 - 15000 m) |
| Technical details |
|---|
| Output frequency |
50/60 Hz |
| Sustainability certificates |
ENERGY STAR |
| Management features |
|---|
| Web-based management |
Yes |
| Weight & dimensions |
|---|
| Package width |
23.4" (594 mm) |
| Package depth |
29.5" (749 mm) |
| Package height |
9.69" (246 mm) |
| Weight |
48.5 lbs (22 kg) |
| Width |
3.35" (85 mm) |
| Package weight |
65.3 lbs (29.6 kg) |
| Height |
17" (432 mm) |
| Depth |
20" (508 mm) |
| Packaging data |
|---|
| Resource CD |
Yes |
| Quick installation guide |
Yes |
| Cables included |
USB cable |
| Warranty card |
Yes |
| Software CD |
Yes |
| Package width |
23.4" (594 mm) |
| Package depth |
29.5" (749 mm) |
| Package height |
9.69" (246 mm) |
| Package weight |
65.3 lbs (29.6 kg) |
| Logistics data |
|---|
| Products per pallet |
12 pc(s) |
| Certificates |
|---|
| Certification |
CSA C22.2 No.107.3-05, FCC Part 15 Class A, UL 1778 |
| Packaging content |
|---|
| Resource CD |
Yes |
| Quick installation guide |
Yes |
| Cables included |
USB cable |
| Warranty card |
Yes |
| Software CD |
Yes |
