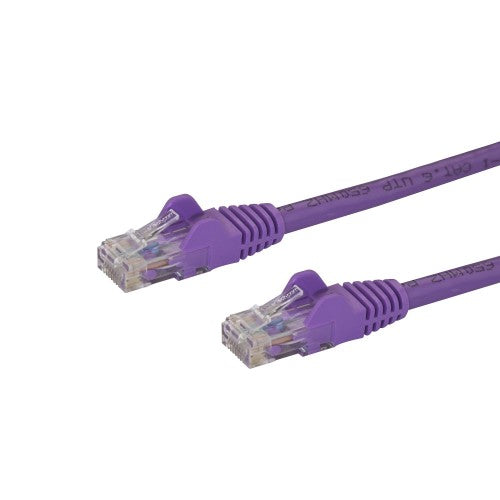

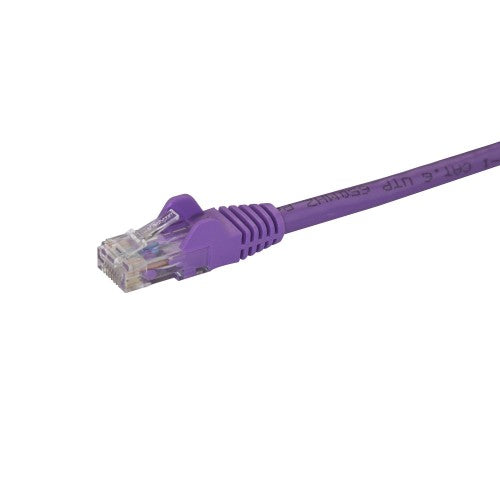

StarTech.com N6PATCH20PL networking cable Purple 240.2" (6.1 m) Cat6 U/UTP (UTP)

StarTech 20ft CAT6 Ethernet Cable - Purple CAT 6 Gigabit Ethernet Wire -250Mhz 100W PoE++ RJ45 UTP Category 6 Network Patch Cord Snagless (N6PATCH20PL)

Key Features

• High-quality 24 AWG copper wire
• ANSI/TIA-568-2.D Category 6 Compliance
• HIGH PERFORMANCE CAT6 ETHERNET CABLE: 100% copper for error-free Multi Gigabit 1/2.5/5Gbps connections; 10Gbps up to 160'; Individually Tested to comply w/ANSI/TIA-568-2.D Category 6
• POE SUPPORT: 24 AWG stranded copper conductors & UL Rated Wiring (E132276-A) supports up to 100W for PoE devices like VOIP phone & security systems; IEEE 802.3bt & DTE power compliance reduces cable heating
• QUALITY CONSTRUCTION: UL certified wire; 50-micron gold-plated connectors prevent rust/corrosion to avoid costly network downtime; High quality PVC jacket resists bending or fraying damage
• EASY INSTALLATION: 20 foot snagless patch cord for easy installation & flexible disconnection in wiring conduits; Compatible w/Cat5e & earlier standards; Molded boots available for constrained spaces
• SPECS: Length: 20ft (6m) / Color: Purple / 250 MHz Rated / Structure: 4 Pair UTP / RJ45 / Jacket: PVC / Wire Gauge: 24 AWG Copper / Wiring: ANSI/T568B/ Warranty: Lifetime

Description

Make Gigabit Ethernet connections with PoE support

This Cat6 cable delivers reliable Gigabit network connections, which ensures high-performance capability for your demanding Ethernet applications.

Find the length and color you need

This 20-foot purple patch cable is perfect for use in network conduits and raceways. The cable is intended for longer distance applications, such as running up a post or throughout the office from a hub to a wall jack.

For easier network installations, our Cat6 patch cables are available in a wide variety of lengths and colors. This ensures you have the right size of cable available when you need it and it lets you color code your connections for a more organized setup.

Snagless RJ45 clips help protect your network connections

For trouble-free cable runs, this durable cable features snagless connectors that protect the RJ45 clips during installation, making them less likely to snag or break.

The cable also features molded boots which offer connector strain relief by stopping the RJ45 connector termination points from bending at sharp angles. This reduces the risk of damage to the cable, which could decrease network connectivity and performance.

100% copper for outstanding value

Get the highest value for your cable investment with our Cat6 Ethernet cables. Each of our patch cables is manufactured using high-quality copper conductors and they are carefully constructed and tested, to keep Near-End Crosstalk (NEXT) well within acceptable limits.

24-gauge wire for high-performance network connection

Ensure high-performance capability for your demanding Ethernet applications, such as Power-over-Ethernet and 4K or 1080p video streaming, using cables that include 24 AWG copper.

50-micron gold connectors provide peak conductivity

You can rely on our RJ45 connectors to deliver optimum conductivity while eliminating signal loss due to oxidation or corrosion.

The N6PATCH20PL is backed by StarTech.com’s lifetime warranty for guaranteed reliability.

Specifications

Features
Product colour	Purple
Cable rating	CMG (CM)
Snagless cable boot	Yes
Conductor material	Copper
Frequency	650 MHz
AWG wire size	24
Plug and Play	Yes
Cable standard	Cat6
Cable shielding	U/UTP (UTP)
Connector 1	RJ-45
Connector 2	RJ-45
Connector contacts plating	Gold
Cabling technology	10/100/1000Base-T(X)
Data transfer rate	1000 Mbit/s
Jacket material	Polyvinyl chloride (PVC)
Conductor type	Stranded
Cable length	240.2" (6.1 m)
Ethernet interface type	Gigabit Ethernet
Power over Ethernet (PoE)	Yes
Connector 2 gender	Male
Connector 1 gender	Male
Certification	ETL
Certificates
Certification	ETL
Compliance certificates	RoHS
Weight & dimensions
Weight	8.82 oz (250 g)
Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package width	7.87" (200 mm)
Package depth	8.66" (220 mm)
Package height	0.394" (10 mm)
Package weight	1.02 oz (29 g)
Quantity per pack	1 pc(s)
Technical details
Product colour	Purple
Plug and Play	Yes
Cable standard	Cat6
Cable shielding	U/UTP (UTP)
Connector 1	RJ-45
Connector 2	RJ-45
Connector contacts plating	Gold
Cabling technology	10/100/1000Base-T(X)
Data transfer rate	1000 Mbit/s
Jacket material	Polyvinyl chloride (PVC)
Conductor type	Stranded
Cable length	240.2" (6.1 m)
Cable rating	CMG (CM)
Compliance certificates	RoHS
Logistics data
Products per master (outer) case	50 pc(s)
Master (outer) case width	14.2" (360 mm)
Master (outer) case length	15.7" (400 mm)
Master (outer) case height	10" (255 mm)
