StarTech 20ft CAT6a Ethernet Cable - 10 Gigabit Shielded Snagless RJ45 100W PoE Patch Cord - 10GbE STP Network Cable with Strain Relief - Black - UL, TIA (C6ASPAT20BK)
Key Features
- HIGH PERFORMANCE CAT6A ETHERNET CABLE: 100% copper for consistent & error-free 10 gigabit connection. Individually Tested complies with ANSI/TIA-568-B.2-10 Category 6 requirements; ETL Verified to meet ANSI/TIA-568.2-D standards
- PROTECT YOUR NETWORK: Shielded RJ45 connectors minimize Near-End Crosstalk (NEXT) & protect against noise & electromagnetic (EMI/RFI) interference; Compatible w/ multi-speed 10Base-T/NBASE-T generation
- SPECS: 10 GbE; Length: 20 ft (6 m); Color: Black; Structure: 4 Pair STP; Connector: Snagless; Jacket Type: PVC; Wire Gauge: 26 AWG Copper; Wiring Standard: ANSI/TIA-568-B.2-10; Warranty: Lifetime
- POE SUPPORT: 26 AWG stranded copper conductors & UL Rated Wiring (E132276-A) supports up to 100W for PoE devices like VOIP phone & security systems. IEEE 802.3bt & DTE power compliant prevents cable heating up
- QUALITY CONSTRUCTION: 50-micron gold-plated connectors for clear signal & to stop rust/corrosion. Snagless connector enables easy installation & flexible disconnection of patch cord in wiring conduits
Description
Deliver high-performance 10 Gigabit network connections, free of noise and EMI/RFI interference
This Cat6a cable meets or exceeds all Category 6a cable specifications to ensure reliable 10Gb network connections. The cable is shielded to protect your network against electromagnetic interference (EMI/RFI) and system noise, providing the perfect solution for fast and safe network connections.
Find the length and color you need
This 20-foot black patch cable is perfect for use in network conduits and raceways. The cable is intended for longer distance applications, such as running up a post or throughout the office from a hub to a wall jack.
For easier network installations, our Cat6a patch cables are available in a wide variety of lengths and colors. This ensures you have the right size of cable available when you need it and it lets you color code your connections for a more organized setup.

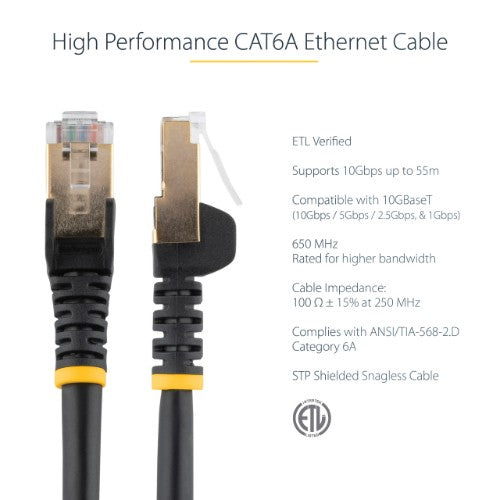

Reliable Cat6a 10 Gigabit connections
Each cable is tested for up to 500MHz frequency and is more than suitable for 10GBase-T Ethernet networks.

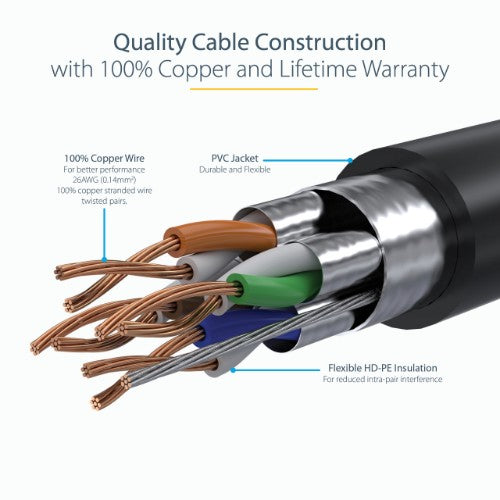

Constructed with 100% copper and foil-shielded, twisted-pair wiring, this cable was built for quality performance. The cable is designed to keep the data signals traveling through your network free from interference and is perfect in environments that are prone to large amounts of EMI.
The 50-micron gold connectors deliver optimum conductivity and eliminate signal loss due to oxidation or corrosion.

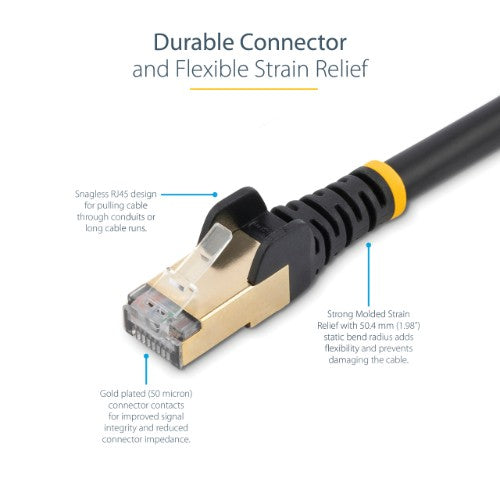

Snagless RJ45 clips help protect your network connections
For trouble-free cable runs, this durable cable features snagless connectors that protect the RJ45 clips during installation, making them less likely to snag or break.
The cable also features molded boots which offer connector strain relief by stopping the RJ45 connector termination points from bending at sharp angles. This reduces the risk of damage to the cable, which could decrease network connectivity and performance. ETL Verified
Our Cat6a Ethernet Cables are ETL Verified to meet ANSI/TIA-568.2-D standards, ensuring peak performance for high-speed 10G applications. Independent testing confirms compliance with strict insertion loss, return loss, and crosstalk limits, maintaining stable signal transmission over longer runs. The STP shielding is verified for EMI resistance, for guaranteed reliability in demanding environments.
The C6ASPAT20BK is backed by StarTech.com’s lifetime warranty for guaranteed reliability.
Specifications
| Features |
|---|
| Product colour |
Black |
| Cable rating |
CMG (CM) |
| Snagless cable boot |
Yes |
| Conductor material |
Copper |
| Frequency |
500 MHz |
| AWG wire size |
26 |
| Plug and Play |
Yes |
| Cable standard |
Cat6a |
| Cable shielding |
U/UTP (UTP) |
| Connector 1 |
RJ-45 |
| Connector 2 |
RJ-45 |
| Cabling technology |
10GBase-T |
| Data transfer rate |
10000 Mbit/s |
| Jacket material |
Polyvinyl chloride (PVC) |
| Conductor type |
Stranded |
| Cable length |
240.2" (6.1 m) |
| Ethernet interface type |
10 Gigabit Ethernet |
| Power over Ethernet (PoE) |
Yes |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Certification |
CE, REACH |
| Harmonized System (HS) code |
84733080 |
| Certificates |
|---|
| Certification |
CE, REACH |
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Weight |
8.75 oz (248 g) |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Packaging data |
|---|
| Package width |
7.87" (200 mm) |
| Package depth |
8.66" (220 mm) |
| Package height |
0.394" (10 mm) |
| Package weight |
9.52 oz (270 g) |
| Quantity per pack |
1 pc(s) |
| Technical details |
|---|
| Product colour |
Black |
| Plug and Play |
Yes |
| Cable standard |
Cat6a |
| Cable shielding |
U/UTP (UTP) |
| Connector 1 |
RJ-45 |
| Connector 2 |
RJ-45 |
| Cabling technology |
10GBase-T |
| Data transfer rate |
10000 Mbit/s |
| Jacket material |
Polyvinyl chloride (PVC) |
| Conductor type |
Stranded |
| Cable length |
240.2" (6.1 m) |
| Cable rating |
CMG (CM) |
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Products per master (outer) case |
40 pc(s) |
| Master (outer) case width |
14.2" (360 mm) |
| Master (outer) case length |
15.7" (400 mm) |
| Master (outer) case height |
10" (255 mm) |
| Harmonized System (HS) code |
84733080 |
