Tower, ATX/ITX/Micro-ATX, 1x USB 2.0, 1x USB 3.0, Audio(HD)+Mic, 2x Silent Series LL 120mm LED Fans, 4.5kg, Black
Key Features
- Available in Black, White, Petrol Blue, Mystic Red, and Gunmetal Gray

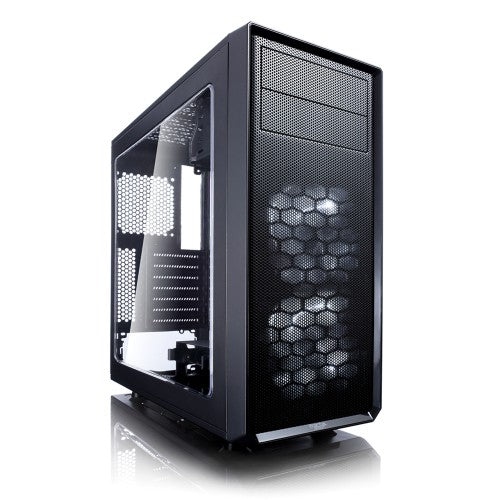

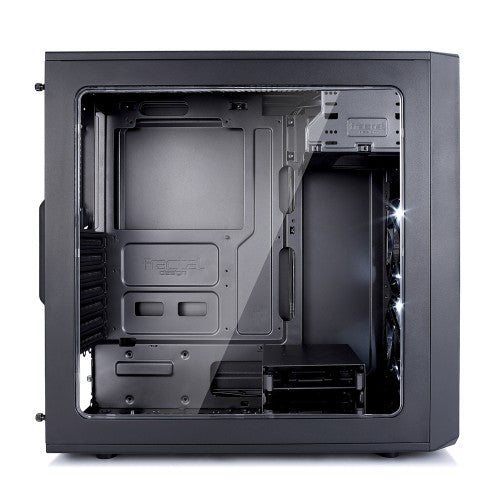

- Large windowed side panel
- Two preinstalled Fractal Design Silent Series LL 120mm White LED fans
- Six total fan positions for high-airflow capability

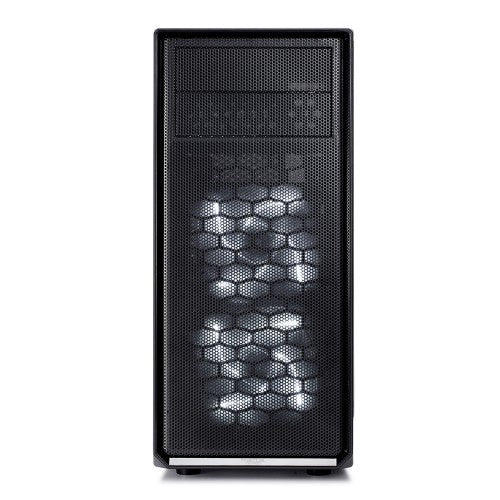

- Filtered front, top and base air intakes for a dust free interior
- Support for high-profile CPU coolers and multiple radiator configurations
- 18 - 25 mm of space for cable routing behind the motherboard plate
- Support for graphics cards up to 380 mm long without compromising hard drive space
- Two vibration dampened universal drive bays with support for6TB+ HDDs and 15mm SSDs, plus an additional 2.5" mount behind the motherboard tray
- Front I/O panel includes USB 3.0, USB 2.0 and audio jacks
- Kensington anti-theft padlock bracket and re-usable ventilated expansion slot covers included
Reasons To Buy
Pre-installed fans
Two pre-installed Fractal Design Silent Series LL 120 mm White LED fans
SSD positions
Customize your set-up using any of the available SSD positions
Front I/O panel
Front I/O panel includes USB 3.0, USB 2.0 and audio jacks
Description
The new Focus series from Fractal Design is the cornerstone for your PC build, showcasing the hardware aesthetics at the heart of your system with elegant accents and sophisticated style.
Contemporary ATX case design accommodates high-performance components with smart and efficient space utilization for a compact footprint.
Extensive cooling options are available with support for tall CPU heatsink/fan combos and water cooling with multiple dual-fan radiators.
Filtered front, top and base air intakes maintain a dust-free environment while expert cable management options keep wiring tidy.
With edge-to-edge visibility, clean contemporary styling and two Silent Series LED fans, the Focus makes your hardware the center of attention.
Specifications
| Design |
|---|
| Volume |
39.8 L |
| Easy to customize |
Yes |
| Anti-dust filter |
Yes |
| Number of external 5.25" bays |
0 |
| Number of 5.25" bays |
0 |
| Number of 3.5" bays |
2 |
| Number of 2.5" bays |
3 |
| Number of internal 3.5" bays |
2 |
| Supported motherboard form factors |
ATX, ITX, micro ATX |
| Side window |
Yes |
| Reset button |
Yes |
| LED indicators |
Yes |
| Illumination location |
Case fans, Front |
| Illumination colour |
White |
| Illumination |
Yes |
| Cable management |
Yes |
| Product colour |
Black |
| Number of expansion slots |
7 |
| Maximum CPU cooler height |
6.5" (16.5 cm) |
| Maximum graphics card length |
15" (38 cm) |
| Maximum PSU length |
9.06" (23 cm) |
| Type |
PC |
| Form factor |
Midi Tower |
| Technical details |
|---|
| Number of 5.25" bays |
0 |
| Number of 3.5" bays |
2 |
| Number of 2.5" bays |
3 |
| Number of internal 3.5" bays |
2 |
| Supported motherboard form factors |
ATX, ITX, micro ATX |
| Supported HDD sizes |
2.5,3.5" |
| Side window |
Yes |
| Reset button |
Yes |
| Product colour |
Black |
| Number of expansion slots |
7 |
| Maximum CPU cooler height |
6.5" (16.5 cm) |
| Maximum graphics card length |
15" (38 cm) |
| Maximum PSU length |
9.06" (23 cm) |
| Type |
PC |
| Form factor |
Midi Tower |
| Harmonized System (HS) code |
84733080 |
| Indication |
|---|
| LED indicators |
Yes |
| Illumination location |
Case fans, Front |
| Illumination colour |
White |
| Illumination |
Yes |
| Ergonomics |
|---|
| Easy to customize |
Yes |
| Reset button |
Yes |
| LED indicators |
Yes |
| Cable management |
Yes |
| Power supply |
|---|
| Supported power supply form factors |
ATX |
| Power supply included |
No |
| Power supply location |
Bottom |
| Ports & interfaces |
|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| Audio input |
Yes |
| Audio output |
Yes |
| USB 2.0 ports quantity |
1 |
| Cooling |
|---|
| Front radiator installed |
No |
| Front radiator sizes supported |
120,140,240,280 mm |
| Rear radiator installed |
No |
| Rear radiator sizes supported |
120 mm |
| Top radiator installed |
No |
| Top radiator sizes supported |
240 mm |
| Cooling |
Yes |
| Front fans installed |
2x 120 mm |
| Number of front fans supported (max) |
2 |
| Front fans diameters supported |
120,140 mm |
| Number of rear fans supported (max) |
1 |
| Rear fans diameters supported |
120 mm |
| Number of top fans supported (max) |
2 |
| Top fans diameters supported |
120,140 mm |
| Number of bottom fans supported (max) |
1 |
| Bottom fans diameters supported |
120 mm |
| Storage |
|---|
| Supported HDD sizes |
2.5,3.5" |
| Packaging content |
|---|
| Manual |
Yes |
| Weight & dimensions |
|---|
| Volume |
39.8 L |
| Width |
8.07" (205 mm) |
| Depth |
18.3" (464 mm) |
| Height |
17.5" (444 mm) |
| Weight |
9.92 lbs (4.5 kg) |
| Packaging data |
|---|
| Manual |
Yes |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733080 |
| Other features |
|---|
| Easy to customize |
Yes |
| Volume |
39.8 L |
| Manual |
Yes |
| Harmonized System (HS) code |
84733080 |
