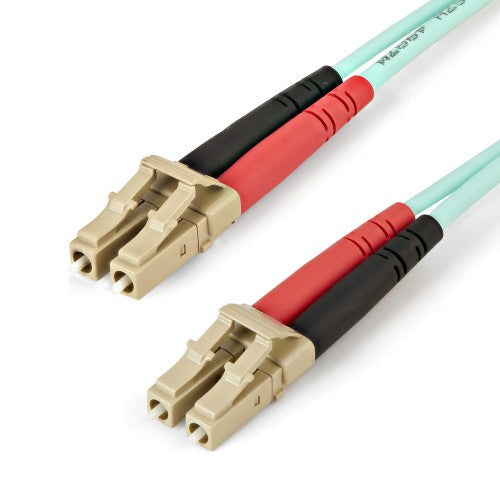

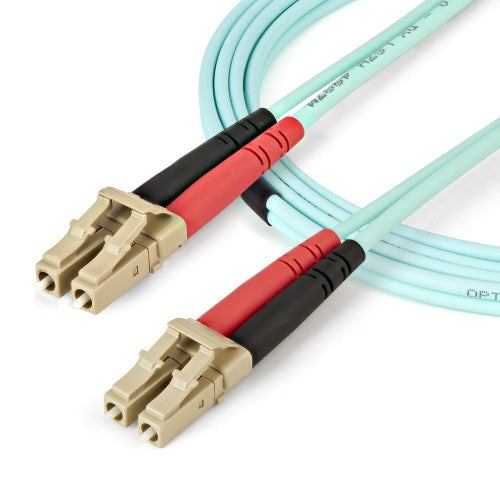

StarTech.com 1m (3ft) LC/UPC OM4 Multimode Fiber Optic Cable, 50/125, 100G, Low Insertion Loss, LSZH Fiber Jumper Cord
Key Features
- OM4 FIBER CABLE: OM4 Laser-Optimized Multimode Fiber Cable delivers up to 100 Gbps Ethernet; Full-duplex zip-cord with color-coded TX/RX connectors for cabling servers and Storage Area Networks (SANs)

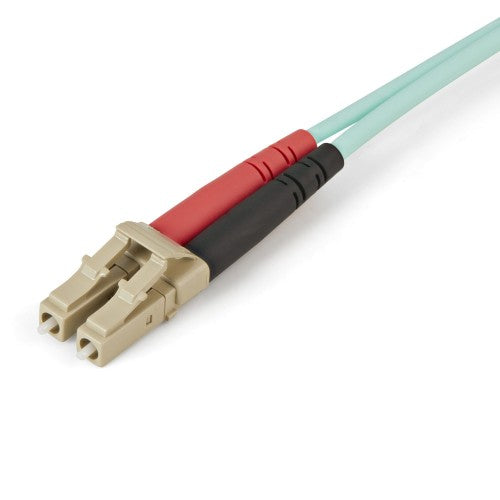

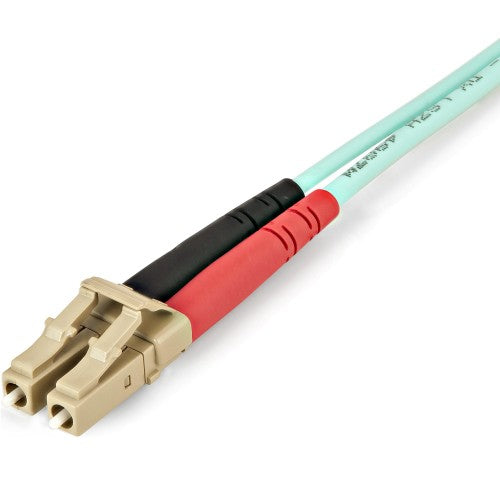

- QUALITY CONSTRUCTION: 50/125µm fiber core/cladding is immune to EMI; Protective Aramid fiber sheath for improved tensile strength and crush resistance; LC/LC connectors with UPC polished ceramic ferrules for insertion loss below 0.3dB
- RATINGS AND RELIABILITY: Individually tested for signal integrity; LSZH jacket emits low-smoke and fumes if combusted; Attenuation value under 2.3dB/km meets or exceeds industry standards
- COMPATIBILITY: OM4 LC/LC multimode cable supports 1/10/40/100 Gbps for high-density network applications such as SANs, data servers, SFP+ and QSFP+ connections over 1000BASE-SX, 10GBASE-SR, 40GBASE-SR4, and 100GBASE-SR10
- SPECS: 1m (3.3ft); Color: Aqua (OM4); LC/LC UPC; 850nm or 1300nm LED/VCSEL; Modal Bandwidth: ≥2000MHz·km at 850nm; Cable OD: 2.9mm; Bend Radius: Static 1.2in (3cm), Dynamic 2.4in (6cm); Backed for Life
Description
LSZH Jacket | Aramid Fiber Sheath | Ideal for SANs, data servers, SFP+
The LC to LC Multimode Duplex Fiber Optic Patch cable facilitates reliable connectivity across 40 and 100 Gigabit networks.
Engineered for Optimal Performance
With laser-optimized multimode fiber (LOMMF), the OM4 fiber patch cable is ideal for 850 nm and 1350 nm Vertical Cavity Surface Emitting Laser (VCSEL) and LED sources. Precision-manufactured ceramic ferrules ensure correct fiber alignment to prevent connectivity issues and minimize insertion loss. Designed for reliability in high-density network applications, the LC to LC UPC polished fiber ends greatly improves return loss characteristics over older PC polishing techniques which may negatively affect performance.
Wide Compatibility
This multimode 50/125µm fiber optic patch cord is backward compatible with OM3 and 1/10/40 Gbps networks, ensuring a reliable connection with legacy fiber environments.
Flame Resistant
Housed in a LSZH (Low-Smoke, Zero-Halogen) flame-retardant jacket, this OM4 fiber cable emits low smoke and toxic fumes when exposed to high heat or in the event of a fire. It enables safer cable installations in areas with poor ventilation including some industrial settings, self-contained environments such as trains and aircraft, as well as residential settings where building codes are a consideration.
Each OM4 fiber cable is also individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability.
The StarTech.com Advantage
Specifications
| Technical details |
|---|
| Jacket material |
Low smoke zero halogen (LSZH) |
| Fiber mode structure |
Multi-mode |
| Connector 1 |
LC |
| Connector 2 |
LC |
| Cable length |
39.4" (1 m) |
| Full duplex |
Yes |
| Core diameter |
50 µm |
| Cladding diameter |
125 µm |
| Sustainability compliance |
Yes |
| Doesn't contain |
Halogen |
| Compliance certificates |
CE, RoHS |
| Features |
|---|
| Fibre optic type |
OM4 |
| Jacket material |
Low smoke zero halogen (LSZH) |
| Fiber mode structure |
Multi-mode |
| Connector 1 |
LC |
| Connector 2 |
LC |
| Cable length |
39.4" (1 m) |
| Full duplex |
Yes |
| Core diameter |
50 µm |
| Cladding diameter |
125 µm |
| Operating temperature (T-T) |
-20 - 60 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Data transfer rate |
100 Gbit/s |
| Wavelengths supported |
850 nm |
| Harmonized System (HS) code |
85447000 |
| Product colour |
Aqua color |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Data transmission |
|---|
| Data transfer rate |
100 Gbit/s |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-20 - 60 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Weight & dimensions |
|---|
| Cable length |
39.4" (1 m) |
| Package width |
7.87" (200 mm) |
| Package depth |
8.66" (220 mm) |
| Package height |
0.472" (12 mm) |
| Weight |
0.988 oz (28 g) |
| Package weight |
0.988 oz (28 g) |
| Packaging data |
|---|
| Package width |
7.87" (200 mm) |
| Package depth |
8.66" (220 mm) |
| Package height |
0.472" (12 mm) |
| Package weight |
0.988 oz (28 g) |
| Quantity per pack |
1 pc(s) |
| Logistics data |
|---|
| Harmonized System (HS) code |
85447000 |
| Quantity per pack |
1 pc(s) |
