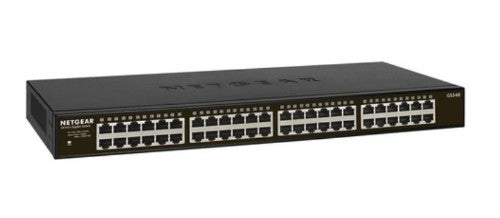

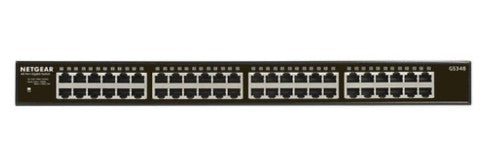

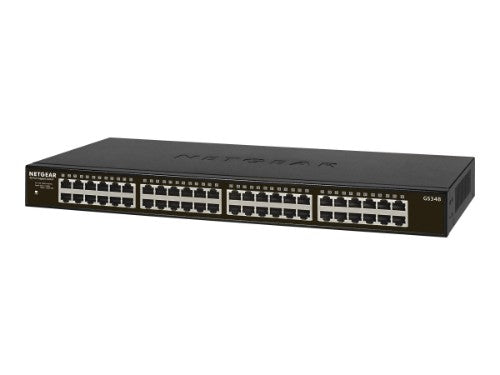

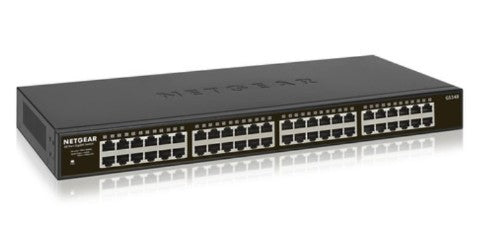

NETGEAR GS348, Unmanaged, Gigabit Ethernet (10/100/1000), Rack mounting, 1U
Key Features
- Auto-MDI/MDIX eliminates the need for crossover cables
- LED indicators for ease of use
- Energy-efficient technology for power savings
- Fanless design for silent operation
- Auto-negotiation for automatic connection at the highest common speed between switch and an end device
- Non-blocking switching architecture for maximum throughput at wire speed
- 802.1p QoS for traffic/frame prioritization
- Plug-and-play; no setup required
- Durable and rugged metal case
- Ideal for small office and home networks
- Standards-based technology ensures interoperability with any standards-based devices in the existing network
- GS316 and GS324 are wall-mountable
- GS324 and GS348 are rack-mountable (rackmount kit included)
Description
NETGEAR GS348. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. MAC address table: 16000 entries, Switching capacity: 96 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack. Rack mounting, Form factor: 1U
Specifications
| Power |
|---|
| Power connector |
DC-in jack |
| Power consumption (max) |
23 W |
| AC input voltage |
110 - 240 V |
| AC input frequency |
50/60 Hz |
| Power consumption (typical) |
8.81 W |
| Input current |
1 A |
| Power source |
AC/DC |
| Technical details |
|---|
| Form factor |
1U |
| Product colour |
Black |
| Rack mounting |
Yes |
| Management features |
|---|
| Switch type |
Unmanaged |
| Quality of Service (QoS) support |
Yes |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
48 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Power connector |
DC-in jack |
| Network |
|---|
| Networking standards |
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Auto MDI/MDI-X |
Yes |
| Data transmission |
|---|
| Packet forwarding rate (1 Gbps) |
1448000 pps |
| Jumbo frames |
9216 |
| Latency (1 Gbps) |
4 µs |
| MAC address table |
16000 entries |
| Switching capacity |
96 Gbit/s |
| Jumbo frames support |
Yes |
| Design |
|---|
| Form factor |
1U |
| Product colour |
Black |
| LED indicators |
Activity, Link, Power |
| Rack mounting |
Yes |
| Indication |
|---|
| LED indicators |
Activity, Link, Power |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
No |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating temperature (T-T) |
0 - 50 °C |
| Heat dissipation |
7866 BTU/h |
| Weight & dimensions |
|---|
| Width |
17.3" (440 mm) |
| Depth |
8.03" (204 mm) |
| Height |
1.7" (43.2 mm) |
| Weight |
6.94 lbs (3.15 kg) |
