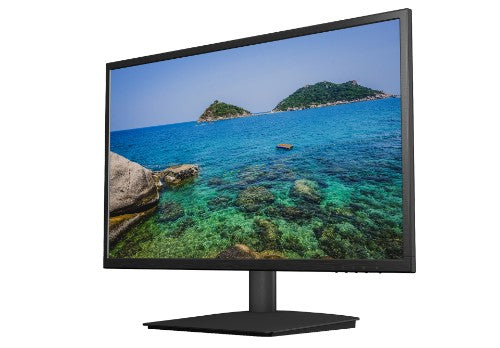

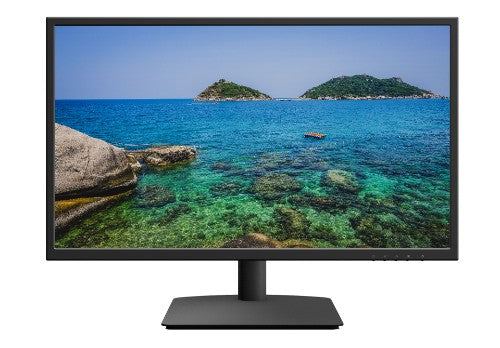

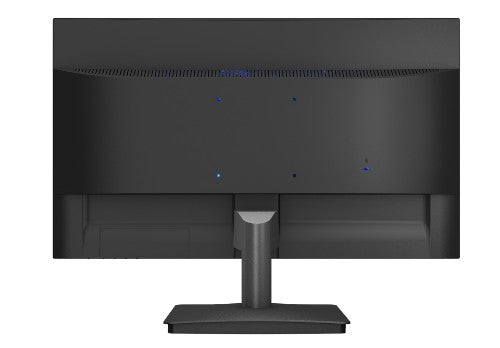

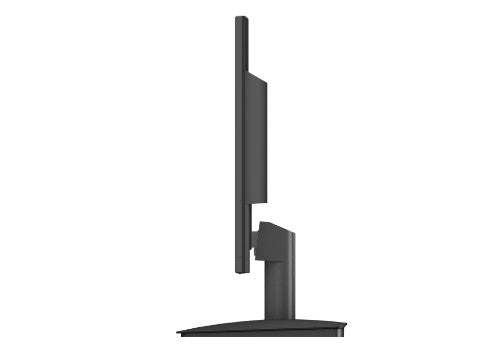

24" Monitor, 1920 x 1080 px, 250 cd/m², 12.5ms, 178/178°, 16:9, HDMI, 18.5W, VESA
Description
The cost-effective Planar PLL2450MW 24" Full HD LCD desktop monitor features wide viewing angles, integrated TrueMedia speakers and VGA and HDMI video inputs. With its small footprint, the Planar PLL2450MW can be mounted on a multi-monitor stand for home, office or healthcare applications.
The Planar PLL2450MW offers enough screen real estate to view multi-page documents or watch videos, but its smaller footprint is ideal for space-constrained desktops.
The Planar PLL2450MW offers wide viewing angles and excellent color balance while maintaining a quick refresh rate. Blue light reduction pre-sets help lower eye fatigue and maintain visual comfort.
Featuring a 100mm VESA compatibility for easy wall or arm mounting, the Planar PLL2450MW pairs well with Planar's accessories, including the Dual Monitor Stand, Triple Monitor Stand, Quad Monitor Stand, Universal Height Adjust Stand and Single Arm Desk Stand.
Specifications
| Display |
|---|
| Display |
LED |
| HDCP |
Yes |
| Display brightness (typical) |
250 cd/m² |
| Screen shape |
Flat |
| Display number of colours |
16.78 million colors |
| Native aspect ratio |
16:9 |
| Maximum refresh rate |
76 Hz |
| Display surface |
Matt |
| HD type |
Full HD |
| Contrast ratio (typical) |
3000:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Pixel pitch |
0.0107 x 0.0107" (0.272 x 0.272 mm) |
| Supported graphics resolutions |
1920 x 1080 (HD 1080) |
| Backlight type |
Edge LED |
| Display resolution |
1920 x 1080 pixels |
| Response time |
12.5 ms |
| Display diagonal |
23.6" |
| Touchscreen |
No |
| Audio |
|---|
| Built-in speaker(s) |
Yes |
| RMS rated power |
2 W |
| Performance |
|---|
| Built-in speaker(s) |
Yes |
| RMS rated power |
2 W |
| Management features |
|---|
| On Screen Display (OSD) |
Yes |
| Multimedia |
|---|
| Number of speakers |
2 |
| Built-in speaker(s) |
Yes |
| RMS rated power |
2 W |
| Design |
|---|
| Certification |
FCC-B, CE, UL/cUL, RoHS |
| Product colour |
Black |
| Ports & interfaces |
|---|
| VGA (D-Sub) ports quantity |
1 |
| HDMI ports quantity |
1 |
| HDCP |
Yes |
| Technical details |
|---|
| Height (without stand) |
16" (405.5 mm) |
| Depth (without stand) |
1.61" (40.9 mm) |
| Width (without stand) |
21.6" (547.6 mm) |
| Cable lock slot |
Yes |
| Product colour |
Black |
| No flickering |
Yes |
| Weight (with stand) |
6.88 lbs (3.12 kg) |
| Touchscreen |
No |
| Ergonomics |
|---|
| VESA mounting |
Yes |
| Cable lock slot |
Yes |
| Panel mounting interface |
100 x 100 mm |
| Tilt angle range |
-5 - 20° |
| On Screen Display (OSD) |
Yes |
| Cable lock slot type |
Kensington |
| Tilt adjustment |
Yes |
| Power |
|---|
| AC input voltage |
100 - 240 V |
| Power consumption (standby) |
0.5 W |
| Power consumption (typical) |
18.5 W |
| Packaging content |
|---|
| Manual |
Yes |
| Cables included |
AC, HDMI |
| Weight & dimensions |
|---|
| Height (without stand) |
16" (405.5 mm) |
| Depth (without stand) |
1.61" (40.9 mm) |
| Width (without stand) |
21.6" (547.6 mm) |
| Width (with stand) |
21.6" (547.6 mm) |
| Depth (with stand) |
6.71" (170.4 mm) |
| Height (with stand) |
16" (405.5 mm) |
| Stand weight |
8.49 lbs (3.85 kg) |
| Weight (with stand) |
6.88 lbs (3.12 kg) |
| Weight (without stand) |
6.33 lbs (2.87 kg) |
| Packaging data |
|---|
| Manual |
Yes |
| Cables included |
AC, HDMI |
| Other features |
|---|
| Height (without stand) |
16" (405.5 mm) |
| Depth (without stand) |
1.61" (40.9 mm) |
| Width (without stand) |
21.6" (547.6 mm) |
| No flickering |
Yes |
| Display |
LED |
| Manual |
Yes |
| Touchscreen |
No |
| Certificates |
|---|
| Certification |
FCC-B, CE, UL/cUL, RoHS |
